Açıklama
Kullanım alanları:
- Uninterruptible power supply (UPS) systems
- Standby power systems
- Emergency lighting
- Power tools and power stations
- Transportation systems
- Security and network communication systems
Features:
- Leak-proof ABS enclosure
- Low self-discharge rate and flame-retardant construction
- Supports installation in multiple orientations
- High-quality AGM separators and lead-calcium alloy plates
- Wide operating temperature range: −20°C to 50°C

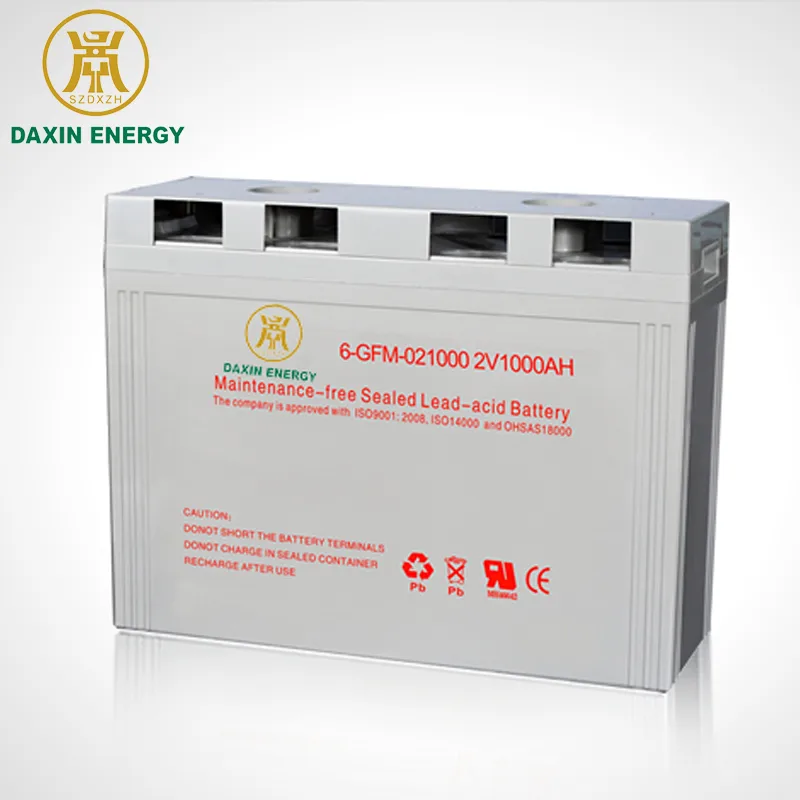

What Is the DAXIN 2V 1000Ah AGM UPS Backup Battery?
The DAXIN 2V 1000Ah AGM UPS Backup Battery is a high-capacity stationary battery designed for UPS systems, telecommunications, emergency power, security networks and other standby-power applications. Its 2V cell format supports series-connected battery banks engineered for the required UPS DC bus voltage and backup time.
The battery uses high-quality AGM separators and lead-calcium alloy plates and features a sealed, leak-resistant ABS enclosure with a low self-discharge rate. Final battery quantity, charging parameters and installation arrangement must be confirmed according to the load, required runtime, operating temperature and selected UPS.
Başlıca Avantajlar
- High-Capacity Standby Power: The 2V 1000Ah rating supports large UPS battery banks and stationary backup-power systems.
- AGM Technology: High-quality AGM separators support efficient electrolyte retention and maintenance-free operation under specified conditions.
- Low Self-Discharge: Designed to retain stored energy during standby operation and storage.
- Sealed ABS Enclosure: Leak-resistant construction supports equipment-room and stationary installations when installed according to the approved instructions.
- Flexible Battery Bank Design: Batteries can be connected in series or parallel according to the required DC voltage, capacity and backup time.
- Wide Operating Temperature Range: Specified operating range of −20°C to 50°C, subject to approved charging and application conditions.
Tipik Uygulamalar
- Uninterruptible power supply systems
- Telecommunications backup-power systems
- Emergency lighting and emergency power
- Security and network communication systems
- Power stations and substations
- Industrial control and standby-power systems
- Transportation infrastructure
- Stationary energy-storage systems
Technical Overview
| Ürün Adı | DAXIN 2V 1000Ah AGM UPS Backup Battery |
|---|---|
| Nominal Gerilim | 2 V |
| Nominal Kapasite | 1000 Ah |
| Separator Technology | AGM separator |
| Plate Material | Lead-calcium alloy |
| Enclosure | Sealed, leak-resistant ABS enclosure |
| Çalışma Sıcaklığı | −20°C to 50°C, subject to approved operating conditions |
| Tipik Uygulamalar | UPS, telecommunications, emergency power and stationary standby systems |
Technical note: Final dimensions, weight, terminal arrangement, charging voltage, discharge performance and service-life expectations must be confirmed using the approved DAXIN model-specific datasheet.

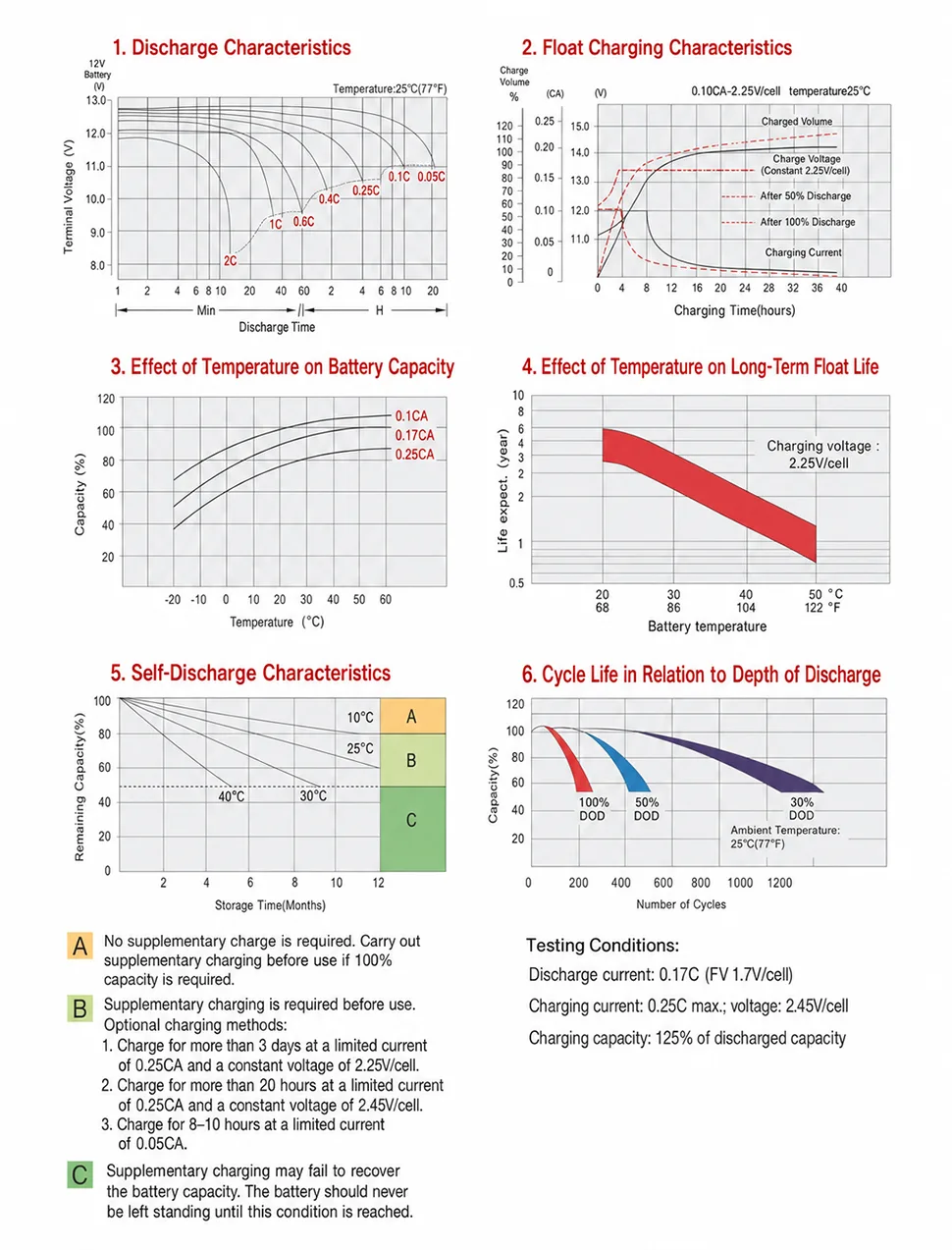

Battery Performance Characteristics
The following technical reference shows the battery’s discharge characteristics, float-charging behavior, temperature effects on capacity and long-term float life, self-discharge characteristics, and cycle life at different depths of discharge.
Performance characteristics of the DAXIN 2V 1000Ah battery, including discharge, float charging, temperature, self-discharge and cycle life.
Actual capacity, runtime and service life depend on charging voltage, discharge current, depth of discharge, ambient temperature, storage duration, maintenance and installation conditions.

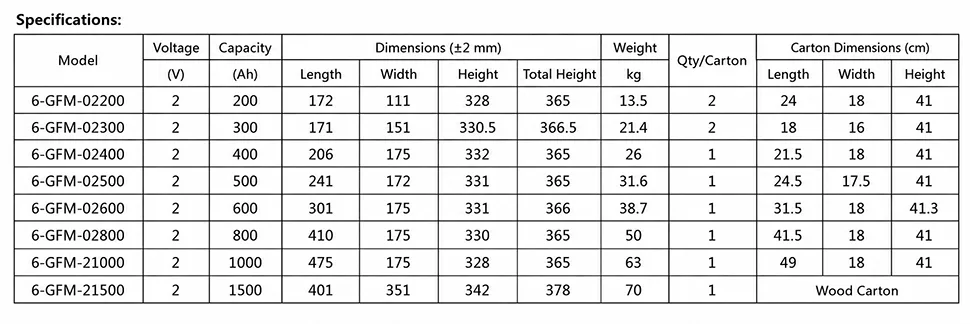

DAXIN 2V AGM Battery Series Specifications
The DAXIN 2V AGM battery series includes multiple capacity options for different UPS runtime and stationary backup-power requirements. The following table compares model capacity, dimensions, weight and packing information.
DAXIN 2V AGM battery series specifications, including model, capacity, dimensions, weight and packing information.
How to Select the Correct Battery Bank
Battery quantity and configuration must be calculated according to the UPS DC bus voltage, connected load and required backup time. To receive an accurate proposal, provide:
- UPS brand, model and rated capacity
- Required DC bus voltage
- Actual load in kW or kVA
- Required backup time
- Available charging current
- Ambient and equipment-room temperature
- Battery cabinet, rack or installation-space requirements
- Required redundancy and service-life target
Sık Sorulan Sorular
What is the DAXIN 2V 1000Ah battery used for?
It is designed for stationary backup-power applications, including UPS battery banks, telecommunications, emergency power, security networks and industrial standby systems.
How many 2V batteries are required for a UPS system?
The quantity depends on the UPS DC bus voltage. Multiple 2V batteries are normally connected in series to achieve the required battery-bank voltage. The final quantity must be confirmed against the approved UPS battery-voltage range.
Can the battery bank be configured for a specific runtime?
Yes. DAXIN can calculate a project-specific battery arrangement based on the actual load, required runtime, DC voltage, discharge conditions and installation environment.
What affects battery capacity and service life?
Battery performance is affected by ambient temperature, charging voltage, discharge current, depth of discharge, discharge frequency, storage conditions and maintenance practices.
Can the battery be installed in different orientations?
Installation orientation must follow the approved DAXIN installation instructions. Do not install or operate the battery in an unapproved orientation.
Are all DAXIN 2V battery models the same size?
No. Capacity, dimensions, weight and terminal arrangements vary by model. Refer to the approved model-specific datasheet before ordering.
Request a Battery Bank Configuration
Send your UPS model, DC bus voltage, actual load, required backup time and site conditions to receive a tailored DAXIN battery bank configuration, technical proposal and quotation.
