Description

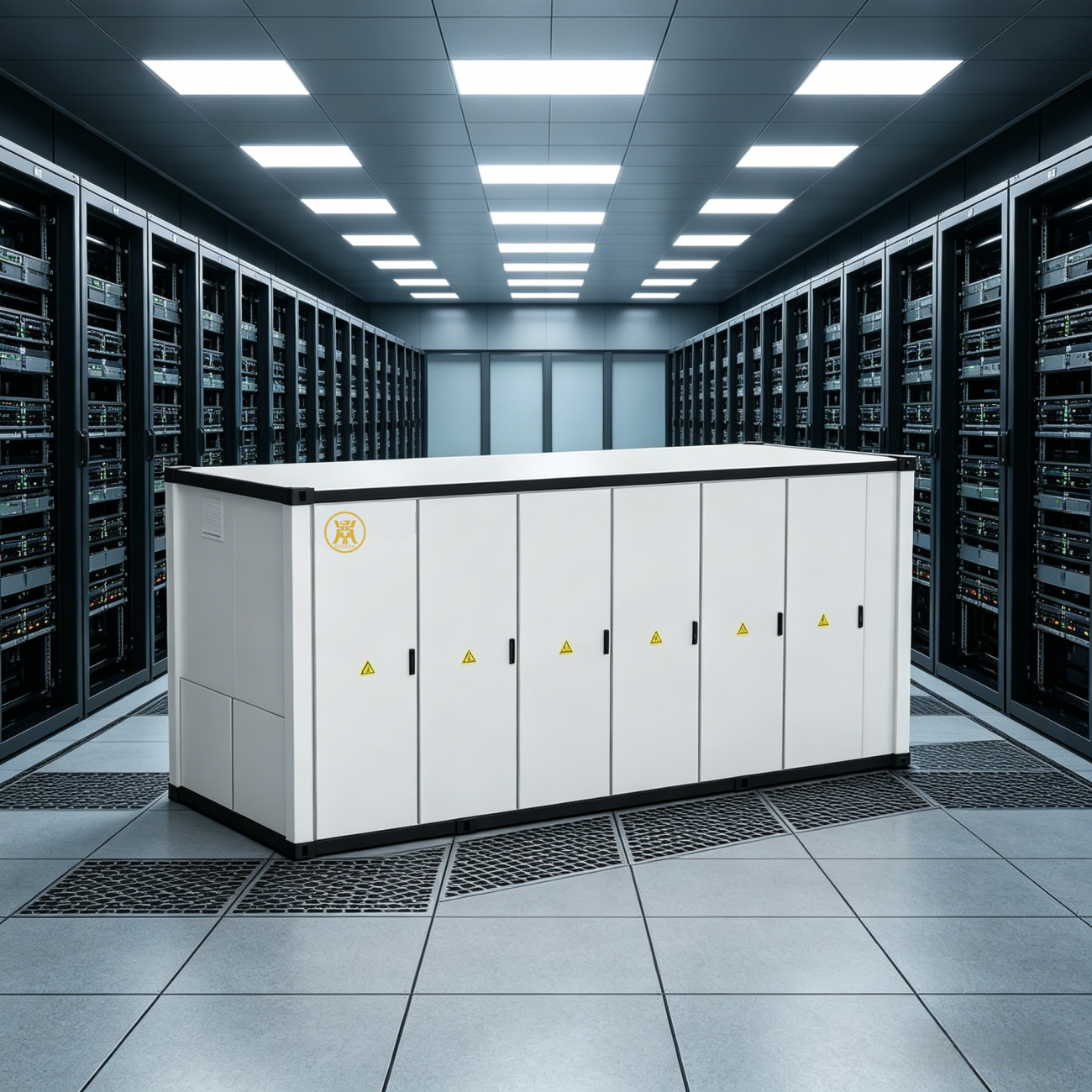

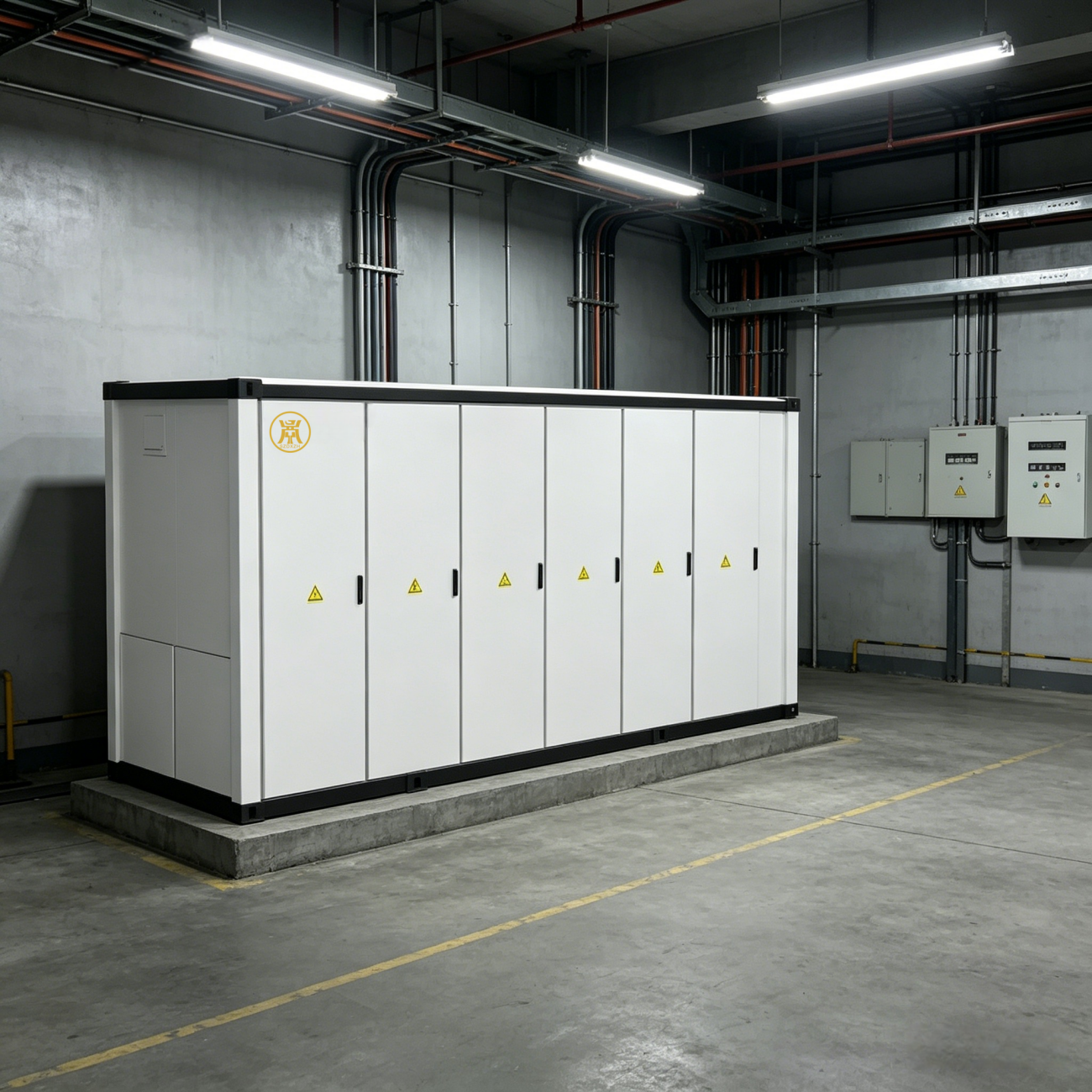

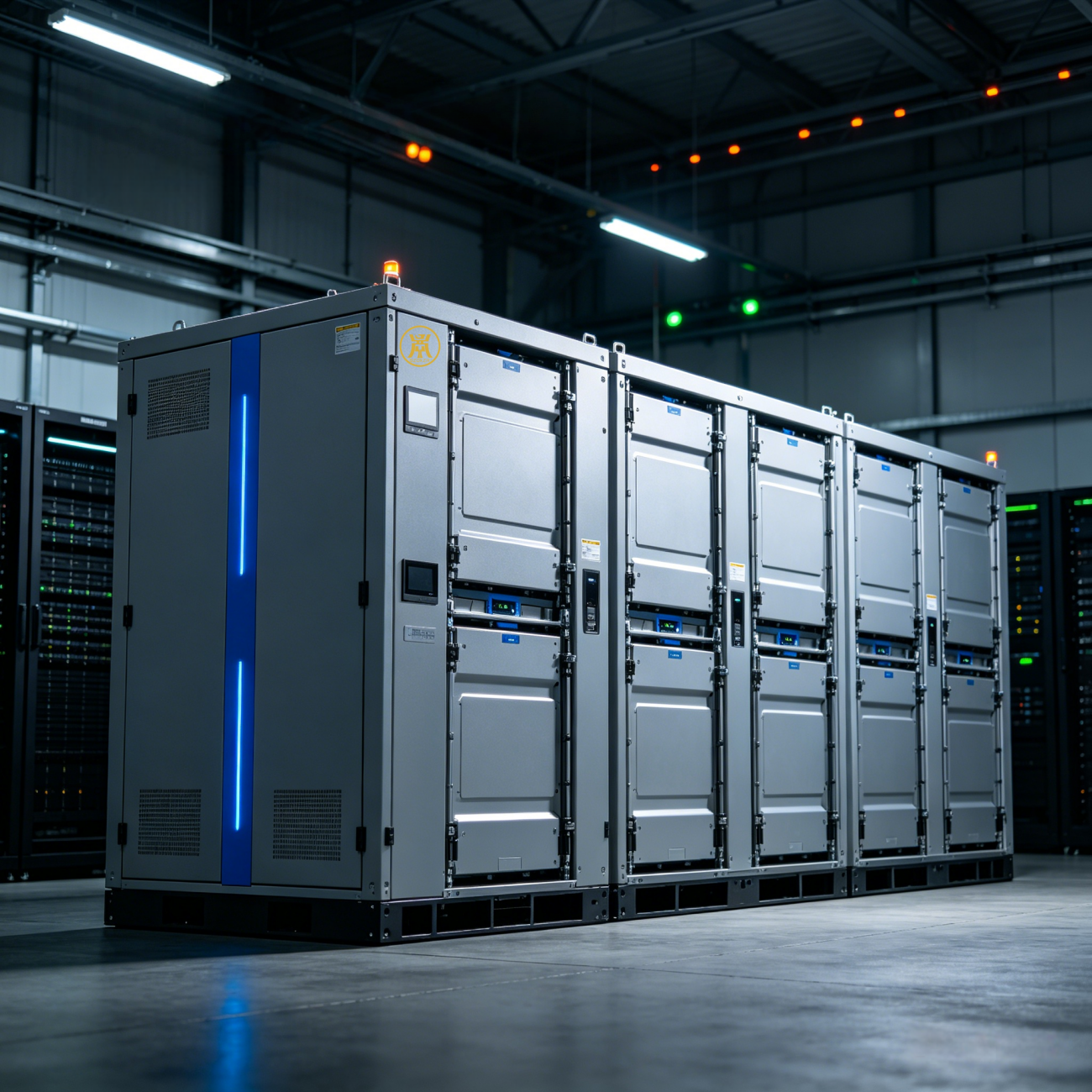

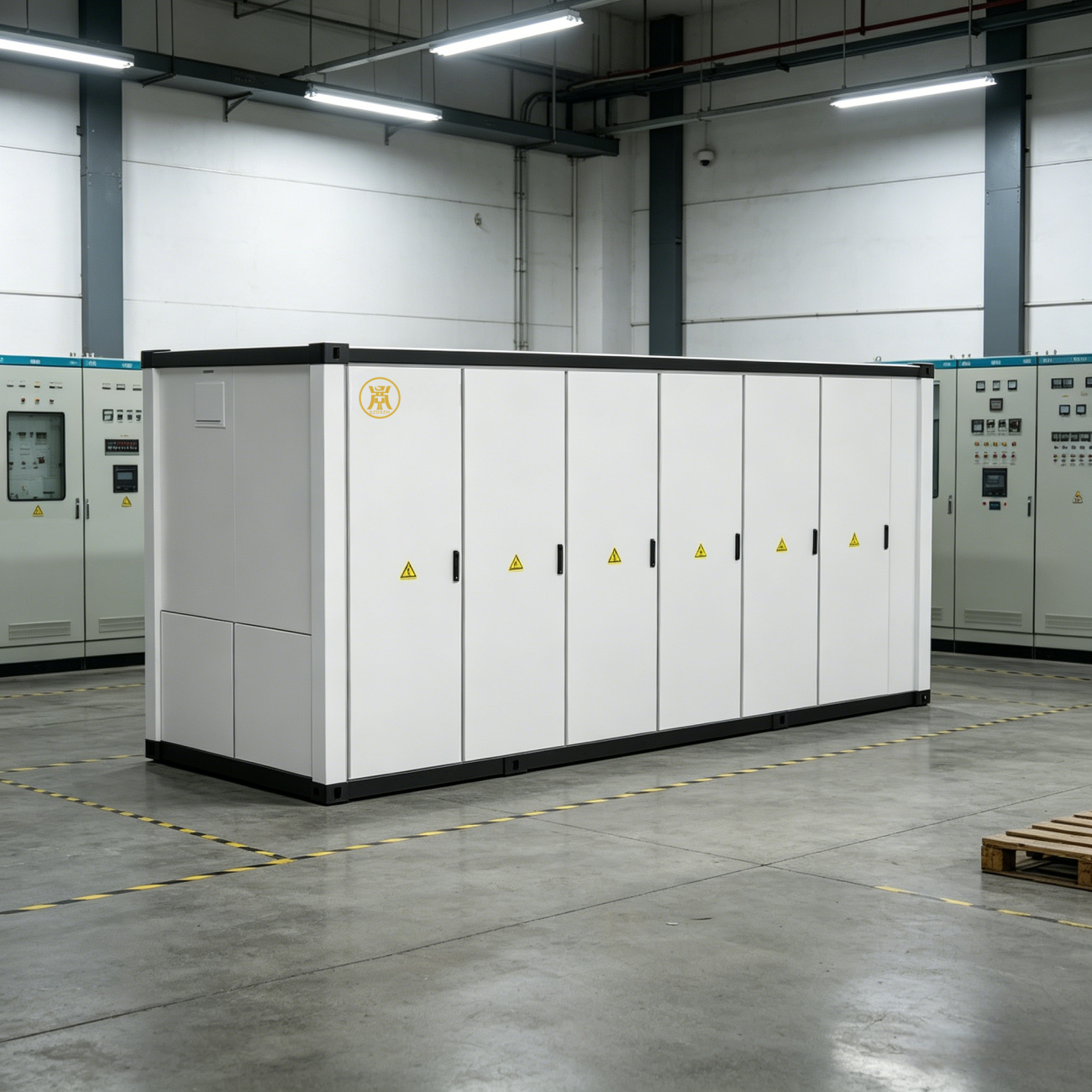

X-CUBE 5015 Containerized Energy Storage System
Model: XY-ESS-2500/5015-0.7-L
Reduce Costs & Boost Profitability
- Fully integrated design, high delivery efficiency, low operation and maintenance workload
- Single cabin 5MWh+ ultra-large capacity, greatly reduces land footprint
- Intelligent liquid cooling precise temperature control, extends system lifespan and cuts auxiliary power consumption
High Efficiency & Versatile Performance
- Operates reliably across diverse extreme environmental conditions
- Modular architecture for easy battery replacement and system capacity expansion
- Independent management per cluster, eliminates inter-cluster circulating current, maximizes overall energy output
Superior Safety & Reliability
- Multi-layer heat insulation & fire-resistant structure, PACK-level targeted protection
- Top venting & explosion relief design to mitigate thermal runaway risks
- Real-time cell health monitoring with ultra-fast emergency response
Simplified & Smart O&M
- Cloud-edge intelligent collaboration, real-time status tracking and automatic fault diagnosis
- Enables fully unattended intelligent operation for large-scale energy storage stations
Energy Storage System Application Topology
Metering Meter → Transformer → Sampling Unit → Utility Grid
Energy Management System (EMS)
Battery Container Bank

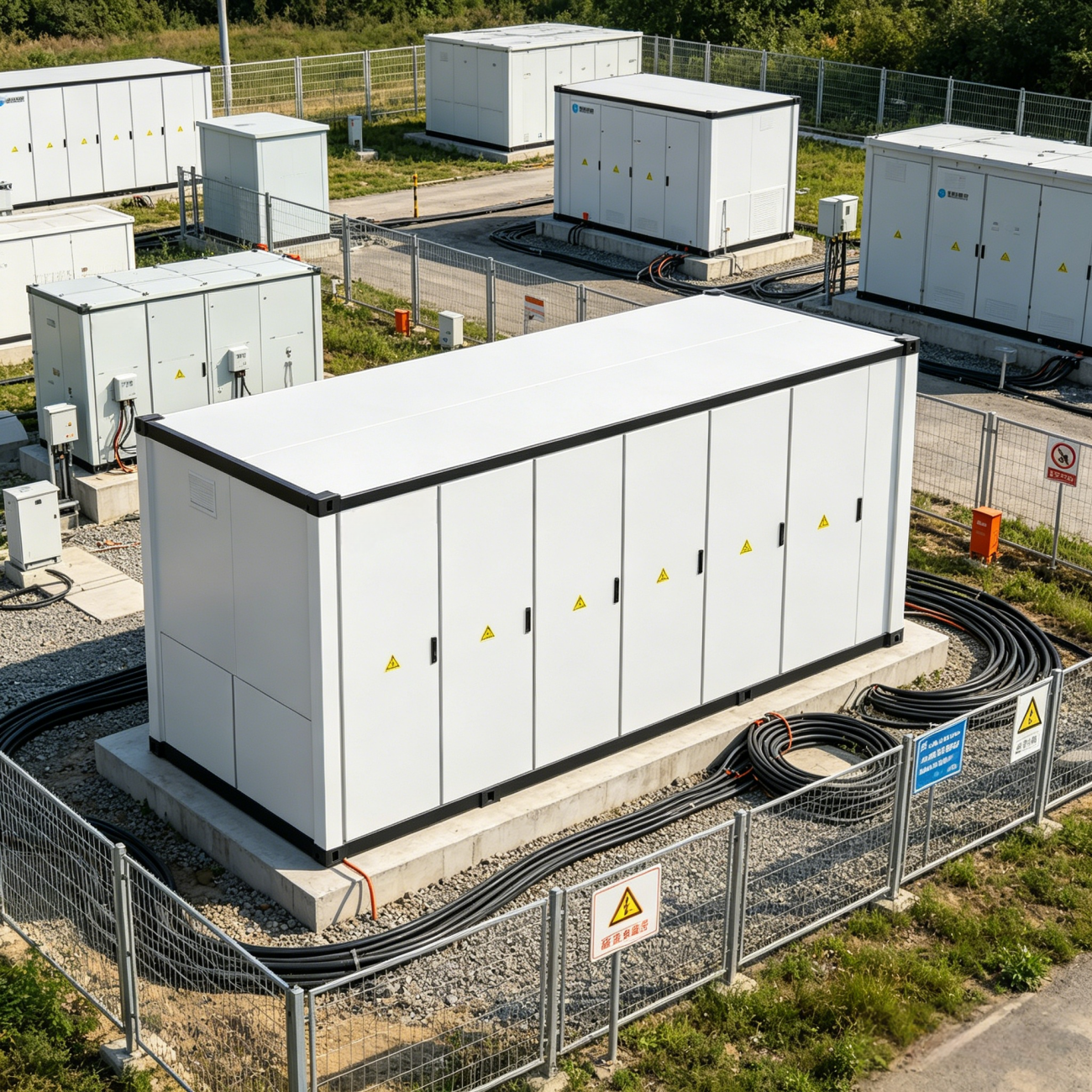

Application Scenarios: Industrial Facilities, Commercial Complexes, Grid-Side Power Stations
- Dashed Line = Signal Cable
- Solid Line = Power Cable
DC Side Specifications
| Item | Parameter |
|---|---|
| Cell Type | 314Ah Lithium Iron Phosphate (LFP) dedicated energy storage cell |
| Cell Configuration | 1P416S *12 |
| Nominal Energy | 5015 kWh |
| Operating Voltage | 1040V–1518V |
| Rated Charge/Discharge Rate | 0.5P |
| Compliance Standards | GB/T 34131; GB/T 36276 |
AC Side Specifications
| Item | Parameter |
|---|---|
| AC Rated Output Power | 2500 kW |
| AC Current THD | <3% |
| Rated Grid Voltage | 690V |
| Rated Grid Frequency | 47Hz–50Hz |
| Compliance Standards | GB/T 34133; GB/T 34120 |
General Specifications
| Item | Parameter |
|---|---|
| Maximum System Efficiency | ≥92% (excluding auxiliary losses) |
| Depth of Discharge | 100% |
| Cycle Lifespan | ≥10,000 cycles |
| Protection Rating | IP54 (PACK module: IP67) |
| Cooling Method | Liquid Cooling |
| Fire Protection | Dual-layer system-level + PACK-level fire suppression |
| Communication Interface | Ethernet |
| Communication Protocol | Modbus TCP, IEC104 |
| Noise Level | ≤75dB |
| Ambient Operating Temperature | -20°C~55°C |
| Ambient Humidity | 0%~95% |
| Operating Altitude | Up to 4000m (performance derating above 2000m) |
| Dimensions (L×W×H) | 6058×2600×3000 (mm) |
| Total Weight | Approx. 45 tons |
Disclaimer
This product datasheet is compiled to be as comprehensive and accurate as possible based on existing technical data. Shenzhen Daxin Intelligent Equipment Technology Co., Ltd. reserves the right to modify product data and specifications without prior notice.
All final interpretation rights belong to Shenzhen Daxin Intelligent Equipment Technology Co., Ltd.
