Description

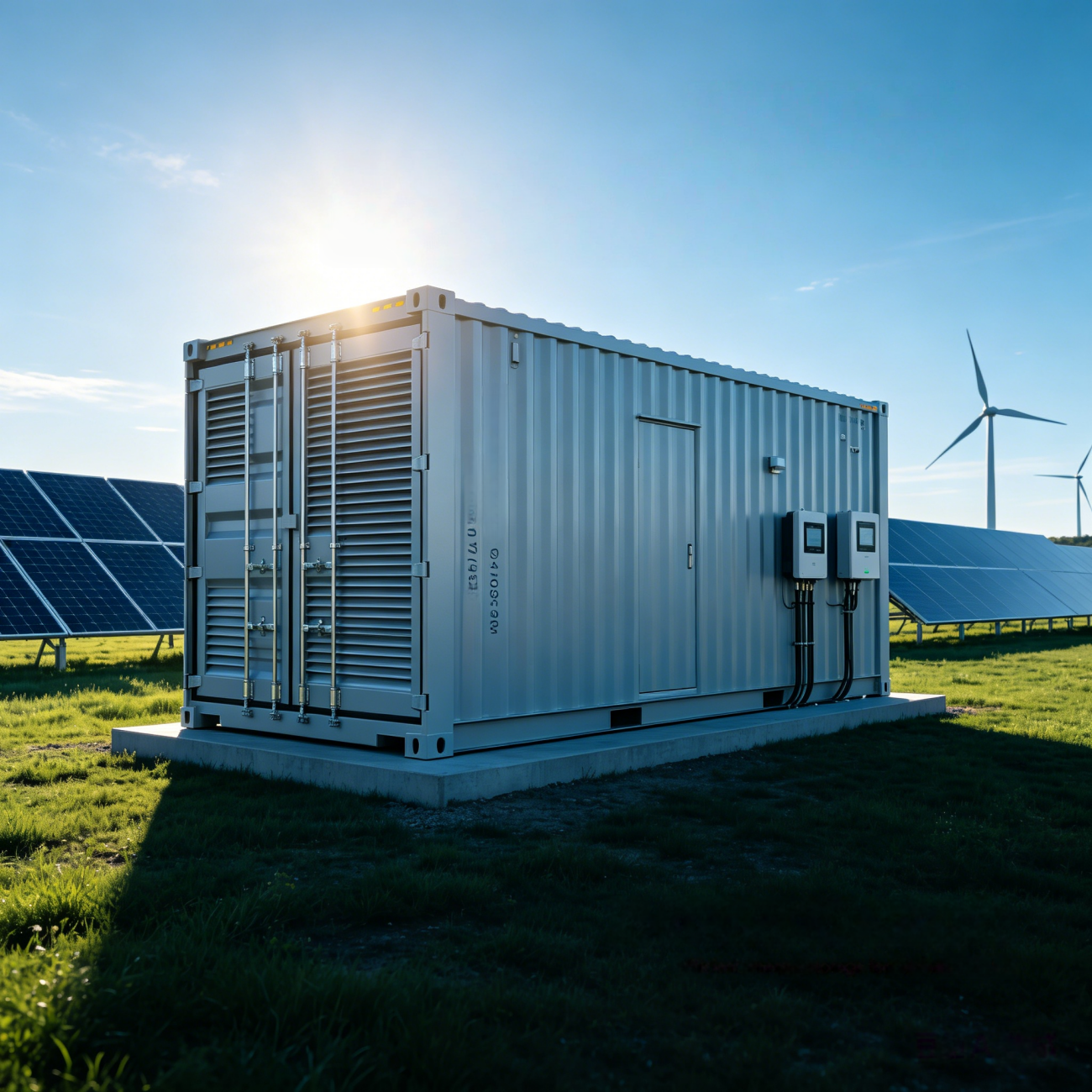

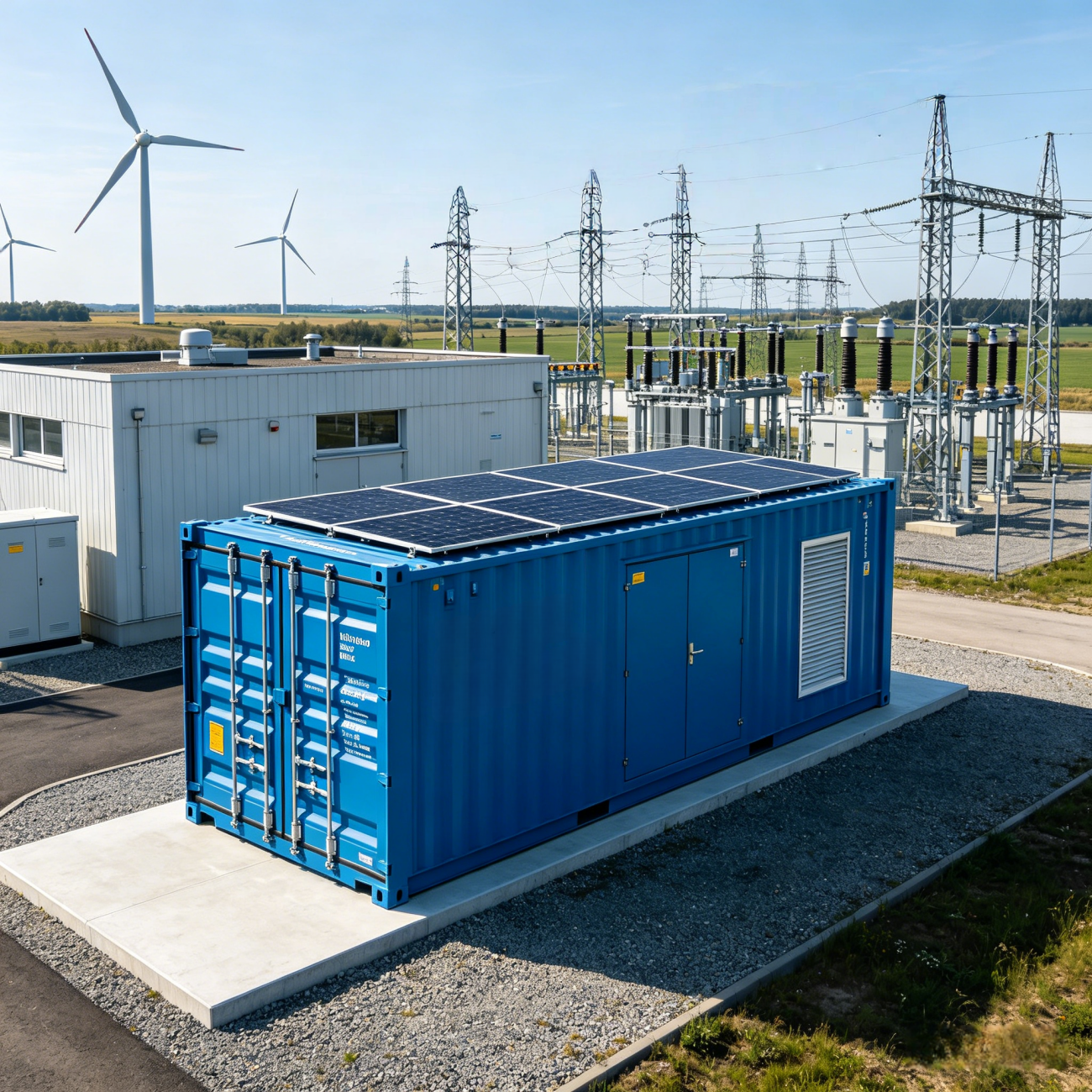

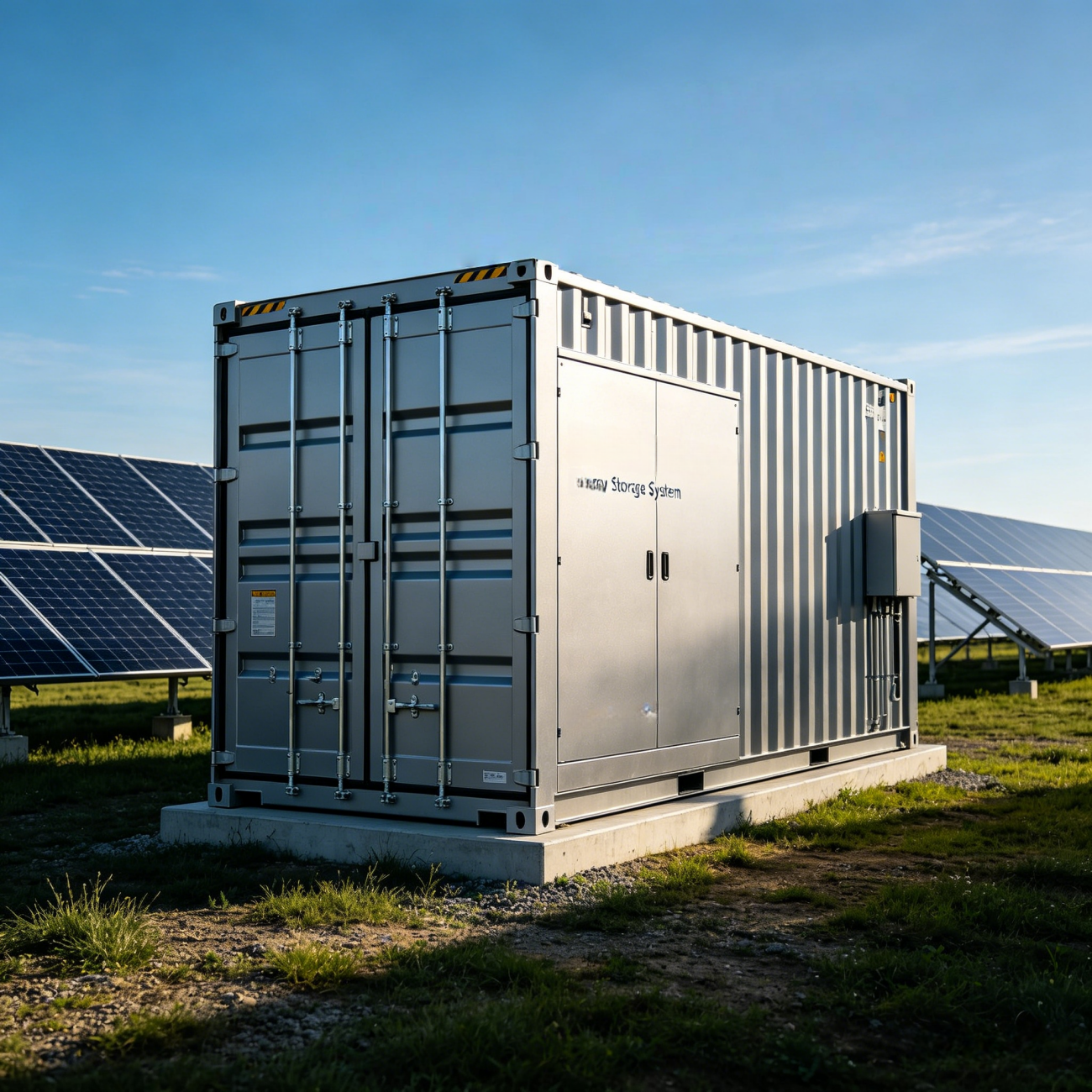

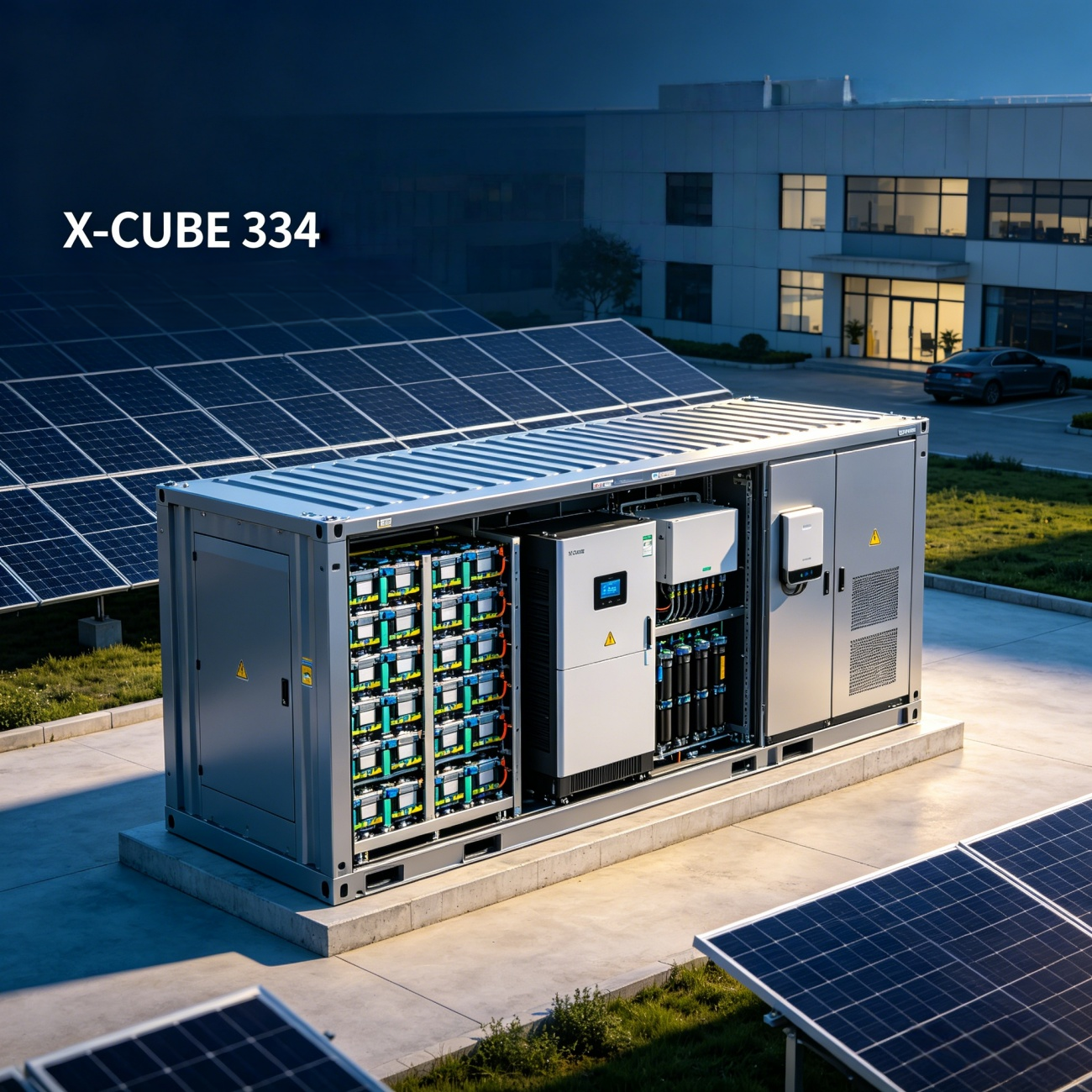

X-CUBE 3343kWh Container Energy Storage System
Model: XY-ESS-1672/3343-0.7-L
Daxing Energy
Reduce Costs & Boost Revenue
- Integrated all-in-one design, high delivery efficiency and low operation & maintenance difficulty
- Single cabin over 3MWh large capacity, greatly reduced land occupation
- Intelligent liquid cooling temperature control, extended system lifespan, lower auxiliary power consumption
High Efficiency & Flexibility
- Adaptable for application in all kinds of extreme and differentiated environments
- Modular design, convenient for battery replacement and system capacity expansion
- Individual cluster independent management, no inter-cluster circulating current, maximizes system power generation
Safety & Reliability
- Multi-layer heat insulation and fireproof construction, PACK-level precise protection
- Top venting & explosion relief design to suppress thermal runaway risk
- Real-time cell health status monitoring with ultra-fast emergency response
Easy Operation & Maintenance
- Cloud-edge intelligent coordination, real-time status monitoring and fault diagnosis
- Enables fully autonomous unattended operation of energy storage stations via digital intelligent management
Energy Storage System Application Topology Diagram
Grid → Transformer → Sampling Unit
Metering Charge | Energy Management System (EMS)
Battery Container 1 ~ Battery Container N
Application Scenarios: Industrial Facilities, Commercial Parks, Grid-Side Energy Station
- Dashed Line = Signal Cable
- Solid Line = Power Cable
Guangzhou Starwing Smart Energy Technology Co., Ltd.
Contact: 173 2993 9004
Page 2
Daxing Energy
BETTER ENERGY FOR ALL
System Model: XY-ESS-1672-3343-0.7-L
DC Side Parameters
| Specification | Details |
|---|---|
| Cell Type | 314Ah dedicated Lithium Iron Phosphate (LFP) energy storage cell |
| Configuration | 1P416S * 8 |
| Nominal Capacity | 3343kWh |
| Operating Voltage | 1200V~1476V |
| Rated Charge/Discharge Rate | 0.5P |
| Compliance Standards | GB/T 34131; GB/T 36276; IEC 62619; IEC 61000; UN38.3 |
General Specifications
| Specification | Details |
|---|---|
| Max System Efficiency | ≥94.0% (excluding auxiliary losses) |
| Depth of Discharge | 100% |
| Cycle Life | ≥8000 cycles |
| Protection Rating | IP54 (PACK module IP67) |
| Cooling Method | Liquid Cooling |
| Fire Protection | Dual system-level + PACK-level fire suppression |
| Communication Interface | Ethernet |
| Communication Protocol | Modbus TCP, IEC104 |
| Noise Level | ≤75dB |
| Ambient Temperature | -20°C~55°C |
| Ambient Humidity | 0%~95% |
| Operating Altitude | Max 4000m (performance derated above 2000m) |
| Dimensions (W×D×H) | 427826002896 (mm) |
| Weight | Approx. 28 tons |
Disclaimer
This product datasheet is compiled to be comprehensive and accurate based on available information. The company reserves the right to modify product data, parameters and specifications without prior notice.
All final interpretation rights belong to Shenzhen Daxin Intelligent Equipment Technology Co., Ltd.
