Description

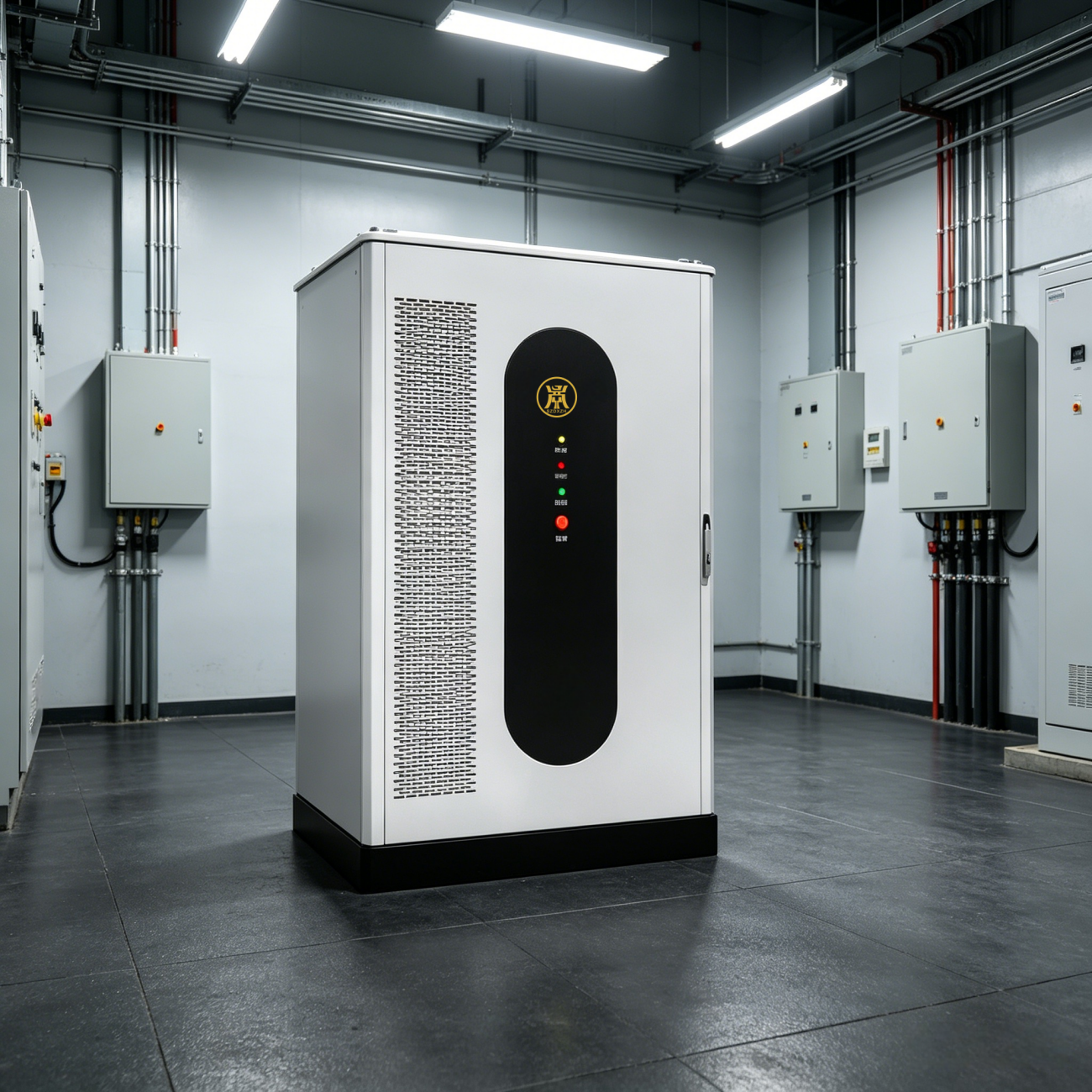

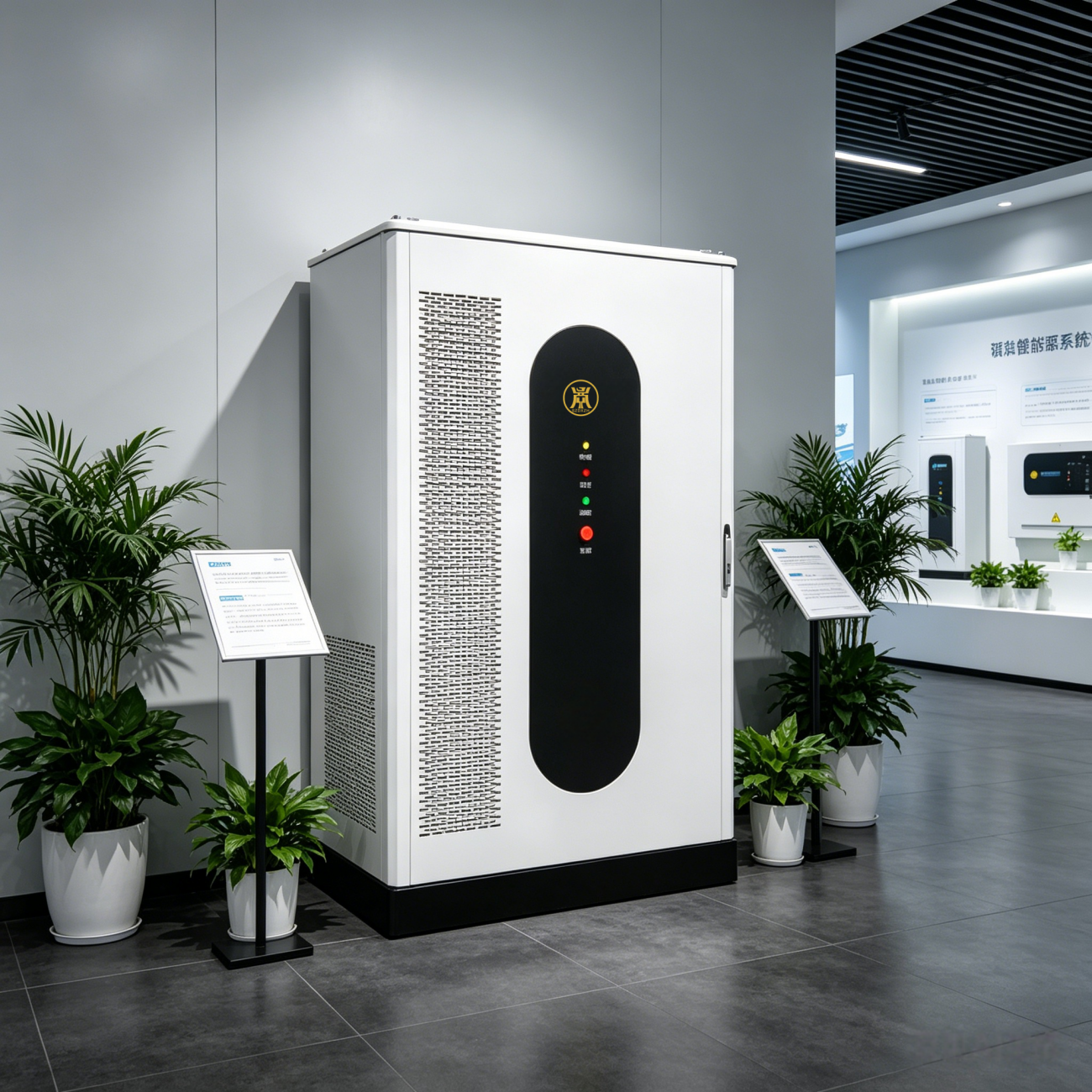

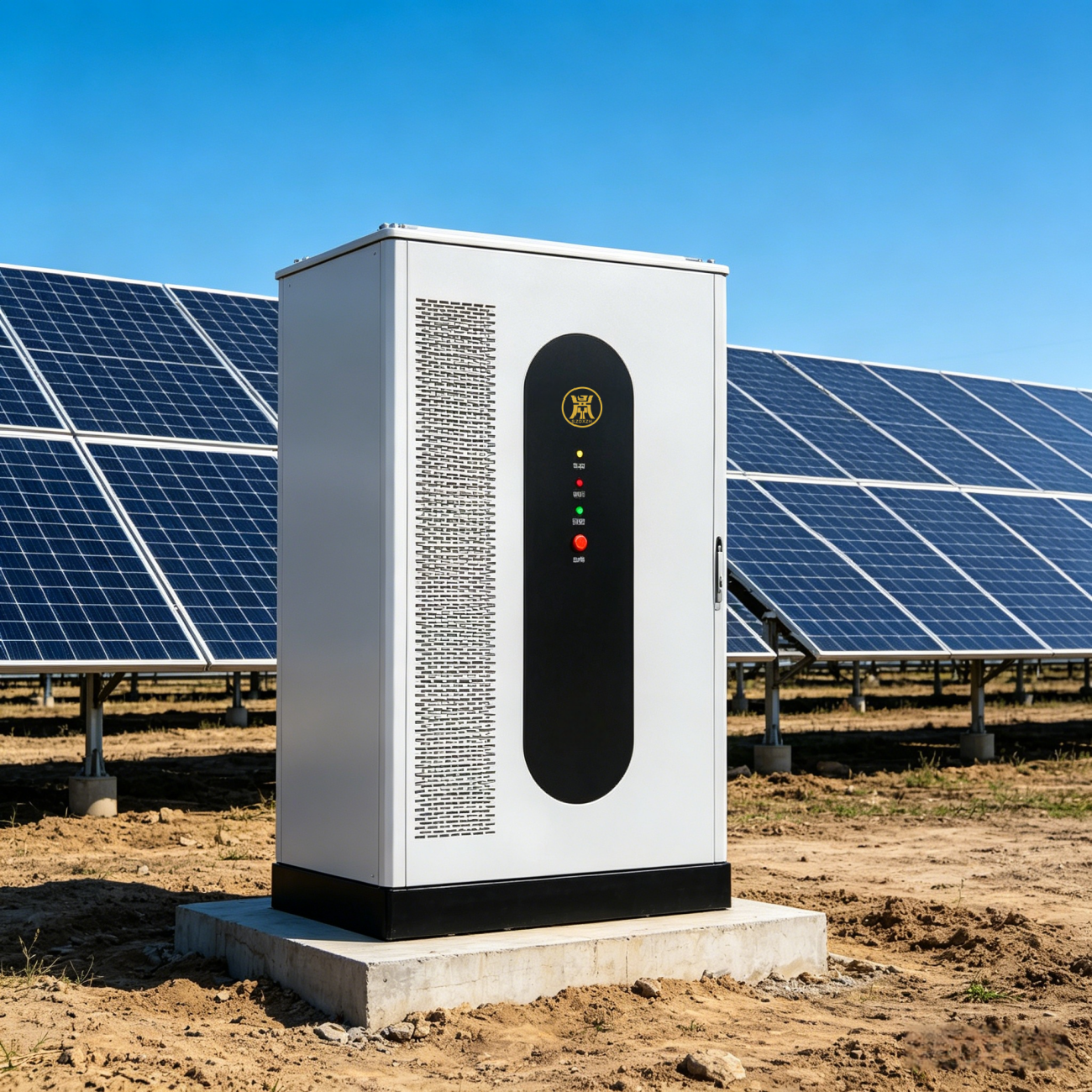

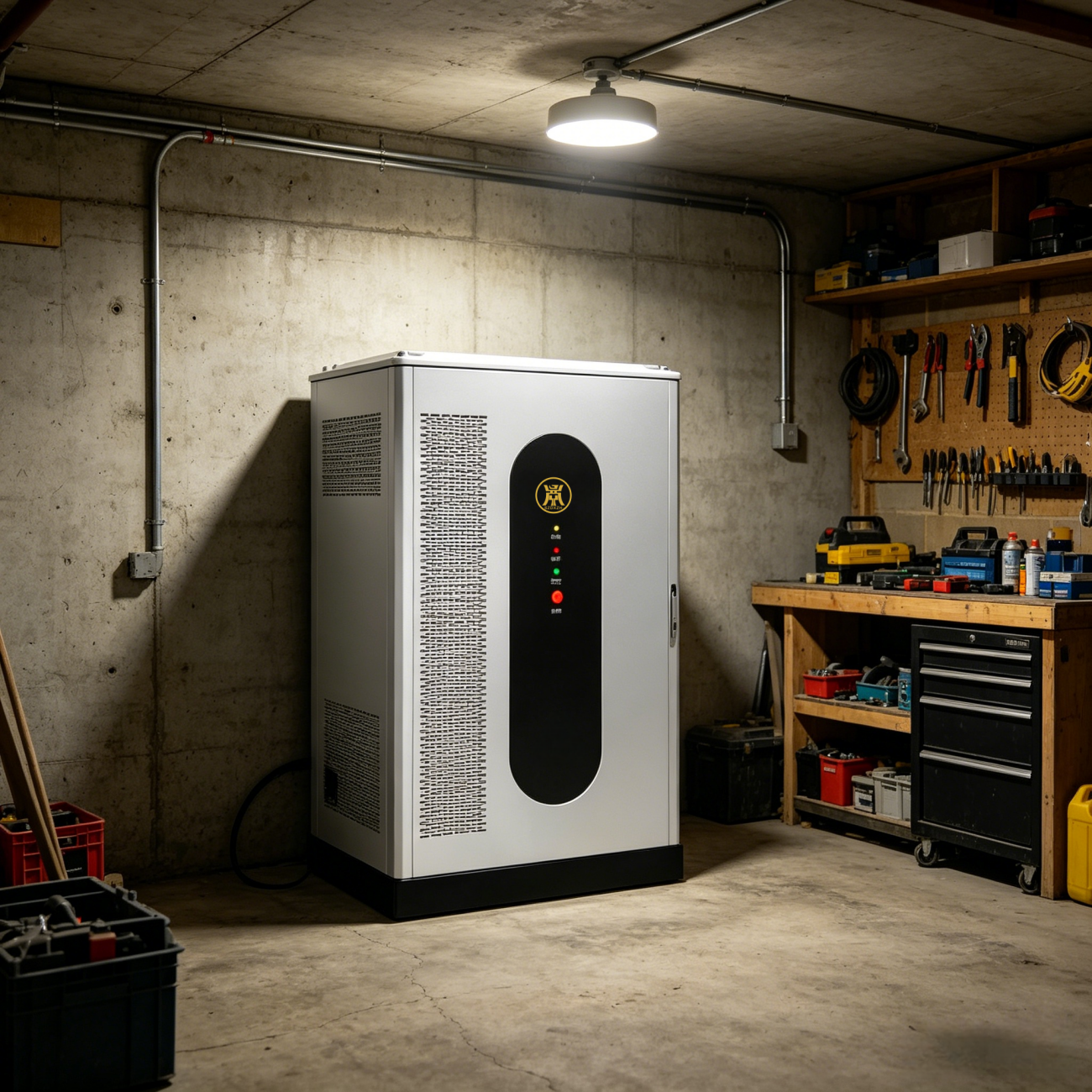

X-CUBE 215 Liquid-Cooled Outdoor Energy Storage Cabinet

---

Ultra-High Efficiency & Intelligent Temperature Control

• Precision thermal management via liquid cooling system, PACK internal temperature difference ≤ 2°C
• Optimal matching between PCS and battery strings, overall unit efficiency ≥ 92%

High Integration & Flexible Deployment

• High power density design, single cabinet floor area: 1.9 m²
• Integrated, modular building-block design for easy transportation
• Supports side-by-side parallel multi-cabinet installation, plug-and-play ready

Outstanding Safety & Full-Range Protection

• Built with high thermal stability Lithium Iron Phosphate (LFP) energy storage cells
• Multi-dimensional active fire protection: prevention, containment, suppression & venting with layered safety barriers

Intelligent Cloud Management & Simplified O&M

• Full-lifecycle intelligent cloud monitoring & digital operation/maintenance
• Wide application scenarios: peak shaving & valley filling, demand side management, backup power, solar-storage integration etc.
• High-precision risk prediction & system failure diagnosis models
• Cloud-edge-end intelligent coordination and cloud-edge redundant control technology

---

User-Side Energy Storage System Topology Diagram

• Dashed Line = Signal Cable
• Solid Line = Power Cable
• Max. supported parallel-connected cabinets: ≥10


  Daxing Energy

  BETTER ENERGY FOR ALL

  System Model: XY-ESS1-100/215-0.4-L

  DC Side Specifications

  Item	Parameter
  Cell Type	280Ah dedicated LFP energy storage cell
  Cell Configuration	1P240S
  Nominal Capacity	215kWh
  Operating Voltage	600V~876V
  Rated Charge/Discharge Rate	0.5P
  Compliance Standards	GB/T 34131; GB/T 36276

  AC Side Specifications

  Item	Parameter
  AC Rated Output Power	100kW
  AC Maximum Output Power	110kW
  AC Current THD	<3%
  Rated Grid Voltage	380V/400V
  Rated Grid Frequency	50Hz
  Compliance Standards	GB/T 34133; GB/T 34120

  Geeral Specifications

  Item	Parameter
  Max. System Efficiency	≥92.0% (excluding auxiliary losses)
  Depth of Discharge (DOD)	100%
  Cycle Lifespan	≥10,000 cycles
  Protection Rating	IP54 (PACK module up to IP67)
  Cooling Method	Liquid Cooling
  Fire Protection	Dual-layer system-level + PACK-level fire suppression
  Communication Interface	Ethernet
  Communication Protocol	Modbus TCP, IEC104
  Noise Level	≤75dB
  Operating Ambient Temperature	-20°C~55°C
  Ambient Humidity	5%~95%
  Operating Altitude	Max 4000m (performance derating above 2000m)

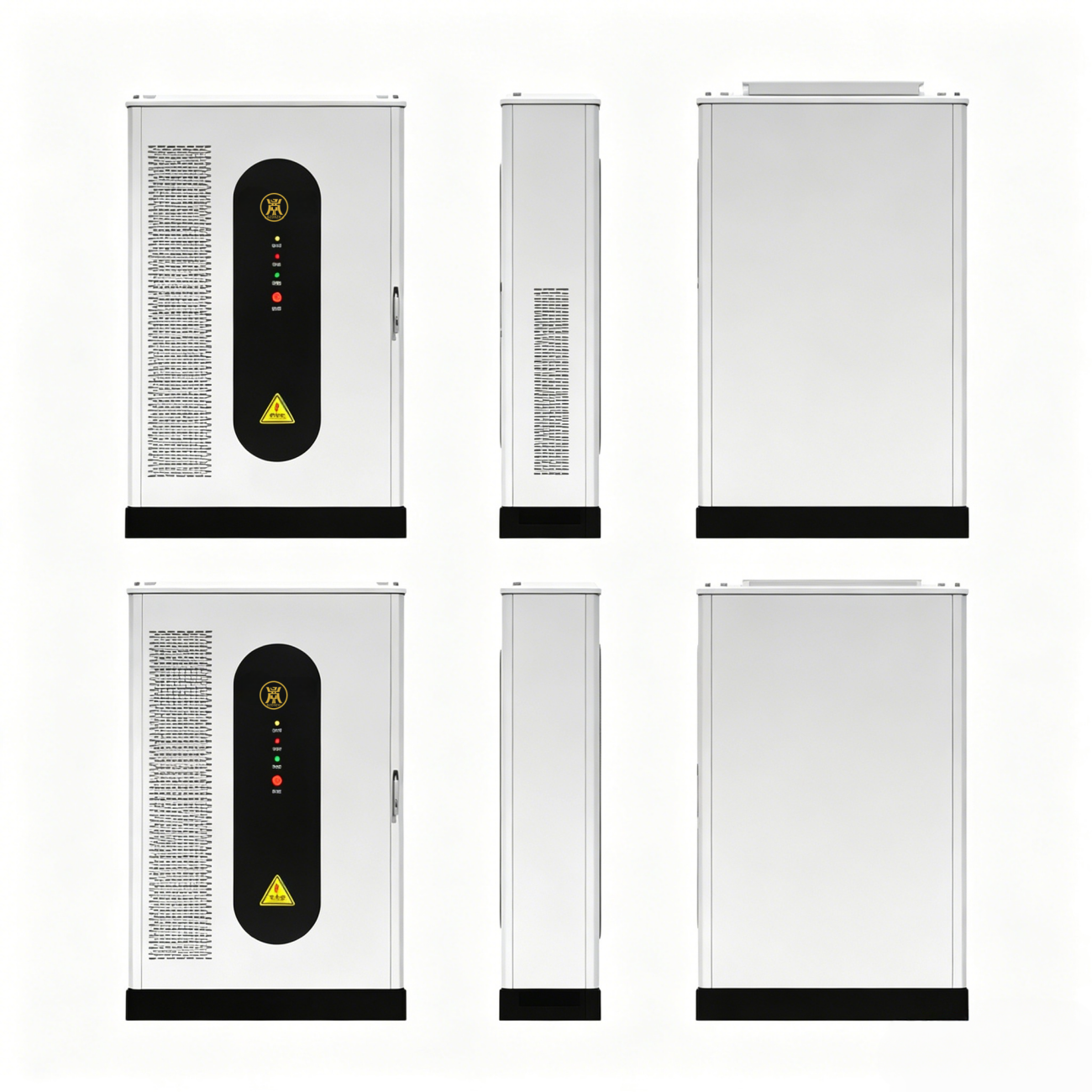

  Dimensions (W×D×H)	1400×1385×2420(mm)
  Total Weight	3000kg

  ---

  Disclaimer

  This product datasheet is compiled based on the latest available data to ensure comprehensiveness and accuracy. Guangzhou Starwing Smart Energy Technology Co., Ltd. reserves the right to modify product data and specifications without prior notice.

  All final interpretation rights belong to Shenzhen Daxin Intelligent Equipment Technology Co., Lt
