Description

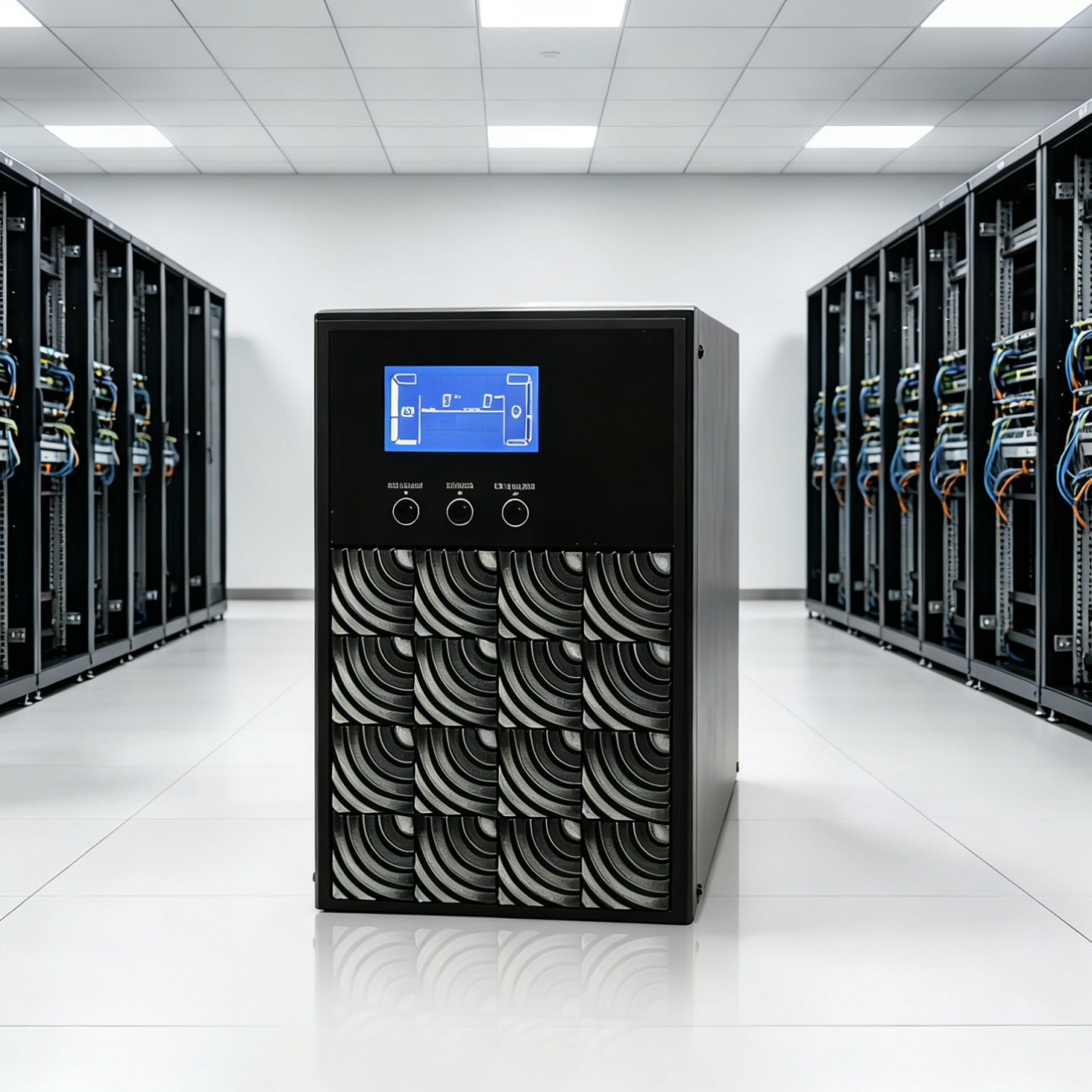

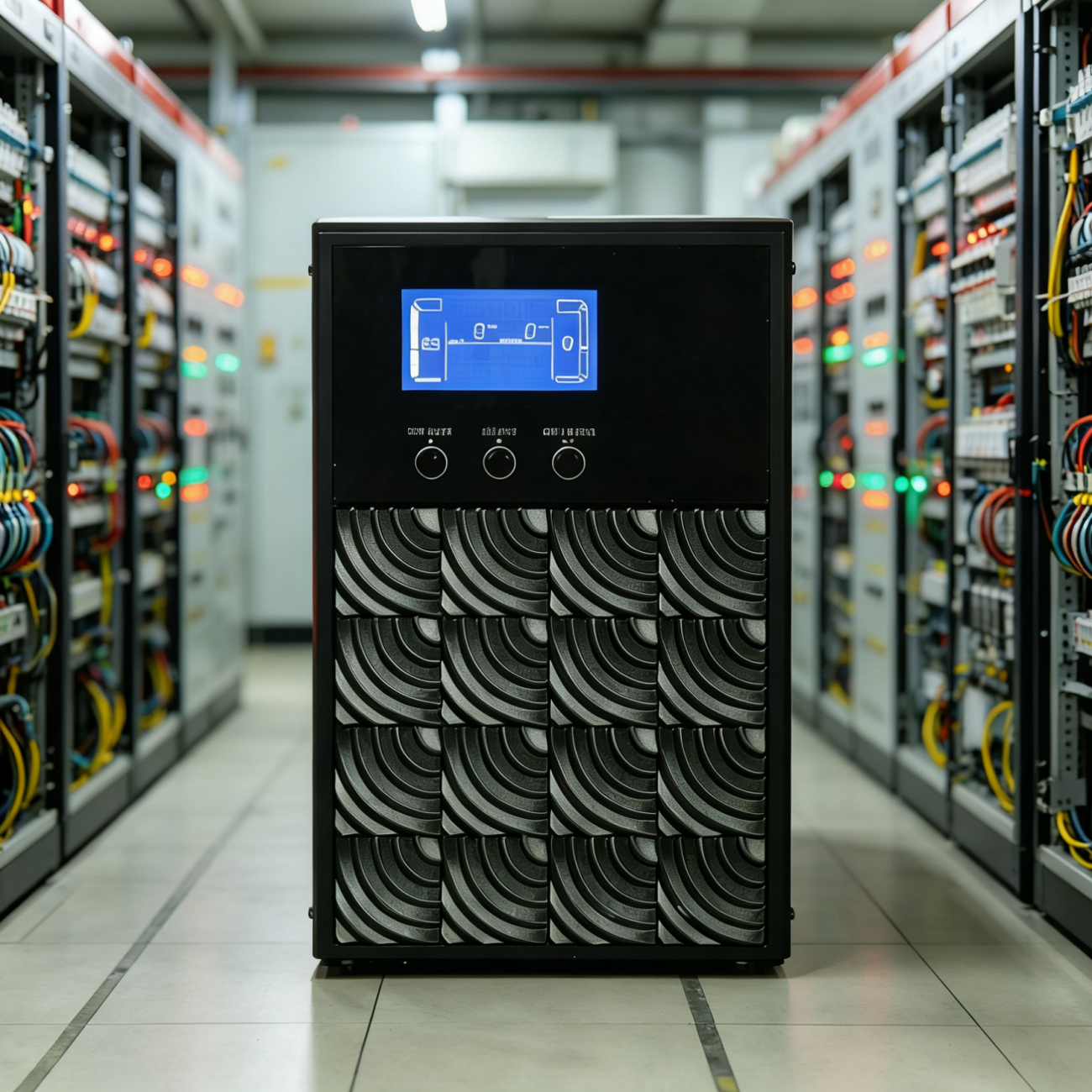

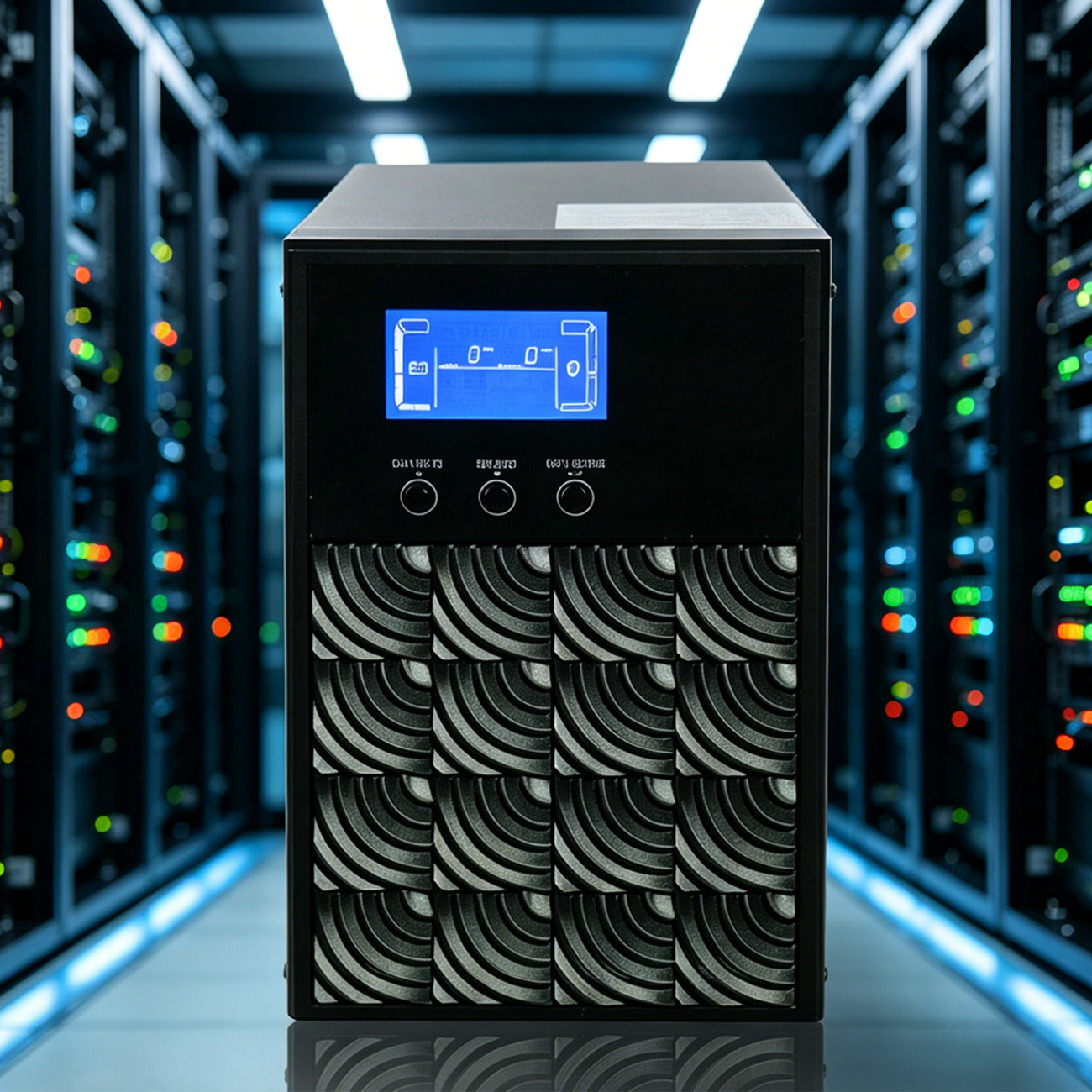

The 11-H 10kVA Long Backup Online UPS adopts advanced double-conversion technology to deliver stable, clean, and uninterrupted power for critical equipment. It supports external battery packs for flexible extended backup time, making it ideal for mission-critical applications requiring high power reliability.
Applications：

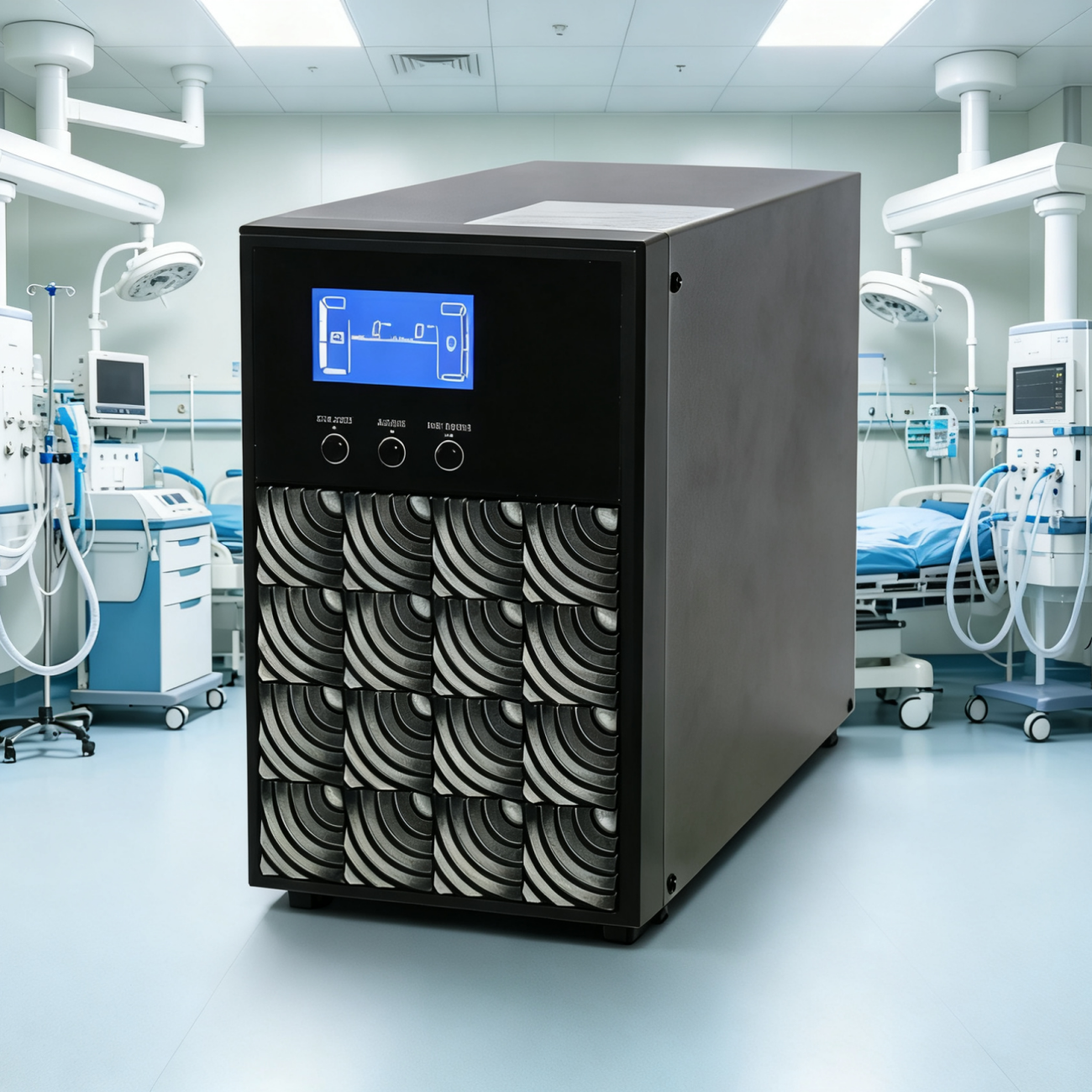

Widely used in government, finance, telecommunications, education, transportation, meteorology, broadcasting, taxation, healthcare, and energy industries. Especially suitable for data centers, server systems, and industrial equipment requiring high-load and long-duration power protection.
Features：
- In frequency conversion mode:
- 1–3kVA models derate to 80% output
- 6/10kVA models derate to 60% output
- At 208VAC output:
- 1–3kVA derate to 80%
- 6/10kVA derate to 90%
- Parallel redundancy is not supported
- 200/208/220/230/240VAC applies only to long backup models
| Parameter | 11-H1kVA | 11-H2kVA | 11-H3kVA | 11-H6kVA | 11-H10kVA |
|---|---|---|---|---|---|
| Model | 11-H1kVA | 11-H2kVA | 11-H3kVA | 11-H6kVA | 11-H10kVA |
| Capacity | 1000VA/900W | 2000VA/1800W | 3000VA/2700W | 6000VA/5400W | 10000VA/9000W |
| Input | — | — | — | — | — |
| Phase | \multicolumn{3}{c}{Single-phase, grounded} | \multicolumn{2}{c}{Single-phase, grounded} | |||
| Voltage Range | |||||
| Lowest Transfer Voltage | \multicolumn{3}{c}{160/140/120/110VAC ±5% (Ambient temp <35°C)
(Adjustable with load ratio: 100%-80% / 80%-70% / 70%-60% / 60%-0)} |
\multicolumn{2}{c}{50% load: 110VAC ±3%
100% load: 176VAC ±3%} |
|||
| Lowest Restore Voltage | \multicolumn{3}{c}{195/175/155/135VAC ±5% (Ambient temp <35°C)
(Adjustable with load ratio: 100%-80% / 80%-70% / 70%-60% / 60%-0)} |
\multicolumn{2}{c}{Lowest transfer voltage +10V} | |||
| Highest Transfer Voltage | \multicolumn{3}{c}{300VAC ±5%} | \multicolumn{2}{c}{300VAC ±3%} | |||
| Highest Restore Voltage | \multicolumn{3}{c}{290VAC ±5%} | \multicolumn{2}{c}{Highest transfer voltage -10V} | |||
| Frequency Range | \multicolumn{3}{c}{40Hz~70Hz} | \multicolumn{2}{c}{46Hz~54Hz @ 50Hz system; 56Hz~64Hz @ 60Hz system} | |||
| Power Factor | \multicolumn{3}{c}{≥0.99 @ 220-230VAC (input voltage)} | \multicolumn{2}{c}{N/A} | |||
| Output | — | — | — | — | — |
| Output Voltage | \multicolumn{5}{c}{208/220/230/240VAC ±1%} | ||||
| Mains Voltage Range (Battery Mode) | \multicolumn{5}{c}{±1%} | ||||
| Frequency Range (Synchronization Range) | \multicolumn{3}{c}{47-53Hz or 57-63Hz} | \multicolumn{2}{c}{46-54Hz or 56-64Hz} | |||
| Frequency Range (Battery Mode) | \multicolumn{3}{c}{50±0.25Hz or 60±0.3Hz} | \multicolumn{2}{c}{50±0.1Hz or 60±0.1Hz} | |||
| Crest Factor | \multicolumn{5}{c}{3:1} | ||||
| Harmonic Distortion | \multicolumn{3}{c}{≤3% THD (linear load); ≤6% THD (non-linear load)} | \multicolumn{2}{c}{≤3% THD (linear load); ≤5% THD (non-linear load)} | |||
| Overload Capacity | \multicolumn{3}{c}{Ambient temp <35°C: 105%-110%: UPS shuts down after 10s in battery mode, transfers to bypass on mains restore. 110%-130%: UPS shuts down after 3s in battery mode, transfers to bypass on mains restore. >150%: UPS shuts down immediately.} | \multicolumn{2}{c}{100%-110%: 30 minutes; 110%-130%: 5 minutes; >130%: 10 seconds} | |||
| Transfer Time | |||||
| Mains to Battery | \multicolumn{5}{c}{0ms} | ||||
| Inverter to Bypass | \multicolumn{3}{c}{4ms (standard conditions)} | \multicolumn{2}{c}{0ms} | |||
| Waveform (Battery Mode) | \multicolumn{3}{c}{Pure sine wave} | \multicolumn{2}{c}{N/A} | |||
| Efficiency | |||||
| Mains Mode | 88% | 89% | 90% | 92% | 93% |
| Battery Mode | 83% | 87% | 88% | 90% | 91% |
| Battery | — | — | — | — | — |
| Standard Model (S) | |||||
| Battery Model | \multicolumn{3}{c}{12V/7Ah} | \multicolumn{2}{c}{12V/7Ah} | |||
| Quantity | 2 | 4 | 6 | 12 | 16 |
| Charging Current | 1.0A | — | — | \multicolumn{2}{c}{Preset: 1.0A ±10%, Max: 1A/2A} | |
| Long Backup Model (L) | |||||
| Battery Model | \multicolumn{5}{c}{12V/AH (depends on customer selection)} | ||||
| Quantity | 3 | 6 | 8 | 16 | 16 |
| Charging Current | 1A/2A/4A/6A | 1A/2A/4A/6A | 1A/2A/4A/6A | 1A/2A/4A/6A (adjustable; 6A only for 16-cell batteries) | 1A/2A/4A/6A (adjustable; 6A only for 16-cell batteries) |
| Physical Performance | |||||
| Standard Model | |||||
| Dimensions: D×W×H (mm) | 282×145×220 | 397×145×220 | 421×190×318 | 369×190×688 | 442×190×688 |
| Net Weight (kg) | 9.8 | 17 | 26.2 | 51 | 55 |
| Long Backup Model | |||||
| Dimensions: D×W×H (mm) | 282×145×220 | 397×145×220 | 421×190×318 | 369×190×318 | 442×190×318 |
| Net Weight (kg) | 4.4 | 6.8 | 7.4 | 12 | 15 |
| Operating Environment | — | — | — | — | — |
| Operating Humidity | \multicolumn{3}{c}{20-90% RH, 0-40°C (non-condensing)} | \multicolumn{2}{c}{<95% RH, non-condensing} | |||
| Noise | <50dB @ 1m | <50dB @ 1m | <50dB @ 1m | <55dB @ 1m | <58dB @ 1m |
| Operating Temperature | \multicolumn{3}{c}{N/A} | \multicolumn{2}{c}{0~40°C (battery life shortened above 25°C)} | |||
| Control & Management | — | — | — | — | — |

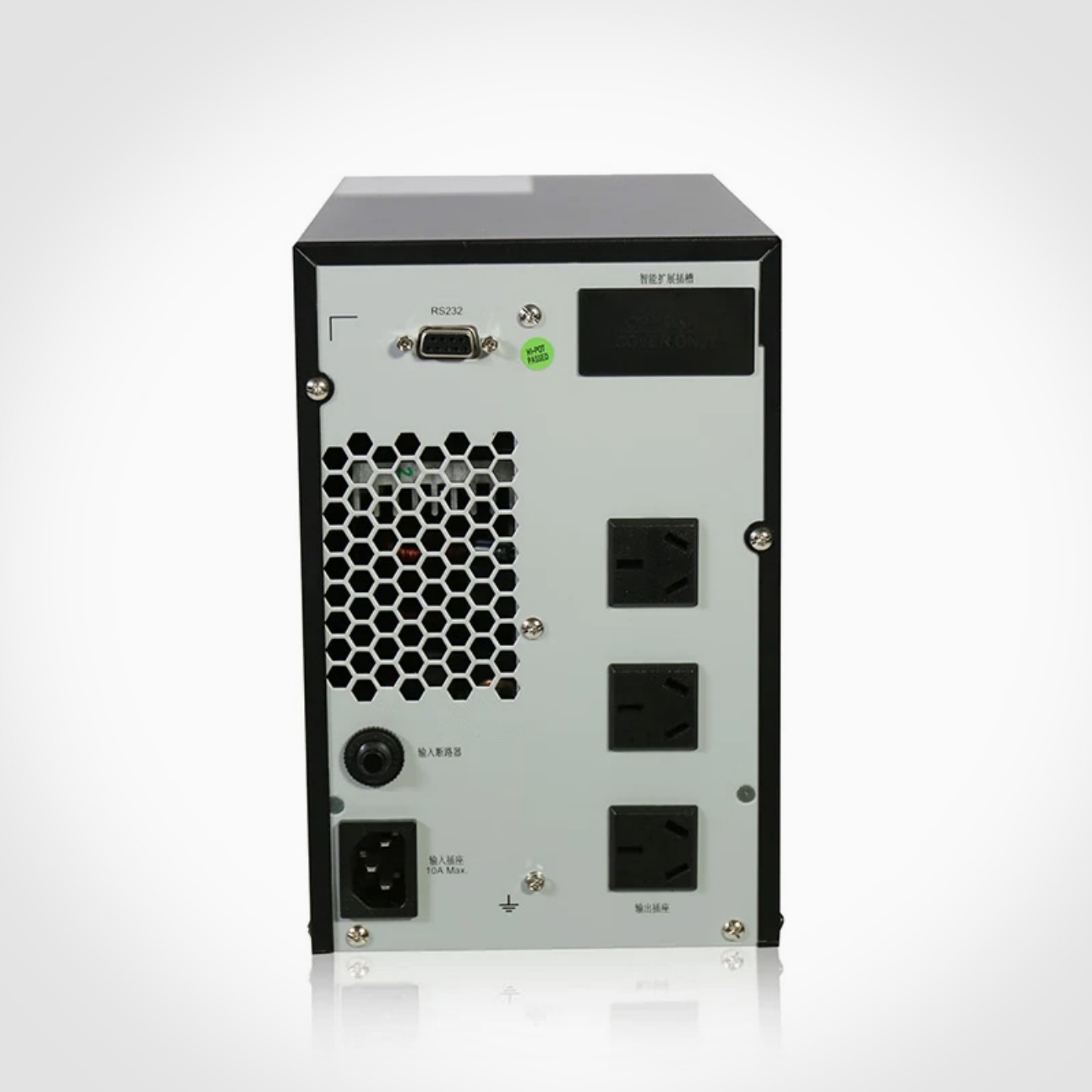

| Smart RS-232/USB | \multicolumn{5}{c}{Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8, Linux and MAC} | ||||
| Optional SNMP Card | \multicolumn{5}{c}{Supports SNMP and network management} |
Footnotes
- Output power is reduced to 80% in frequency conversion mode, or when the output voltage is set to 208VAC.
- **Specifications are subject to change without prior notice.
