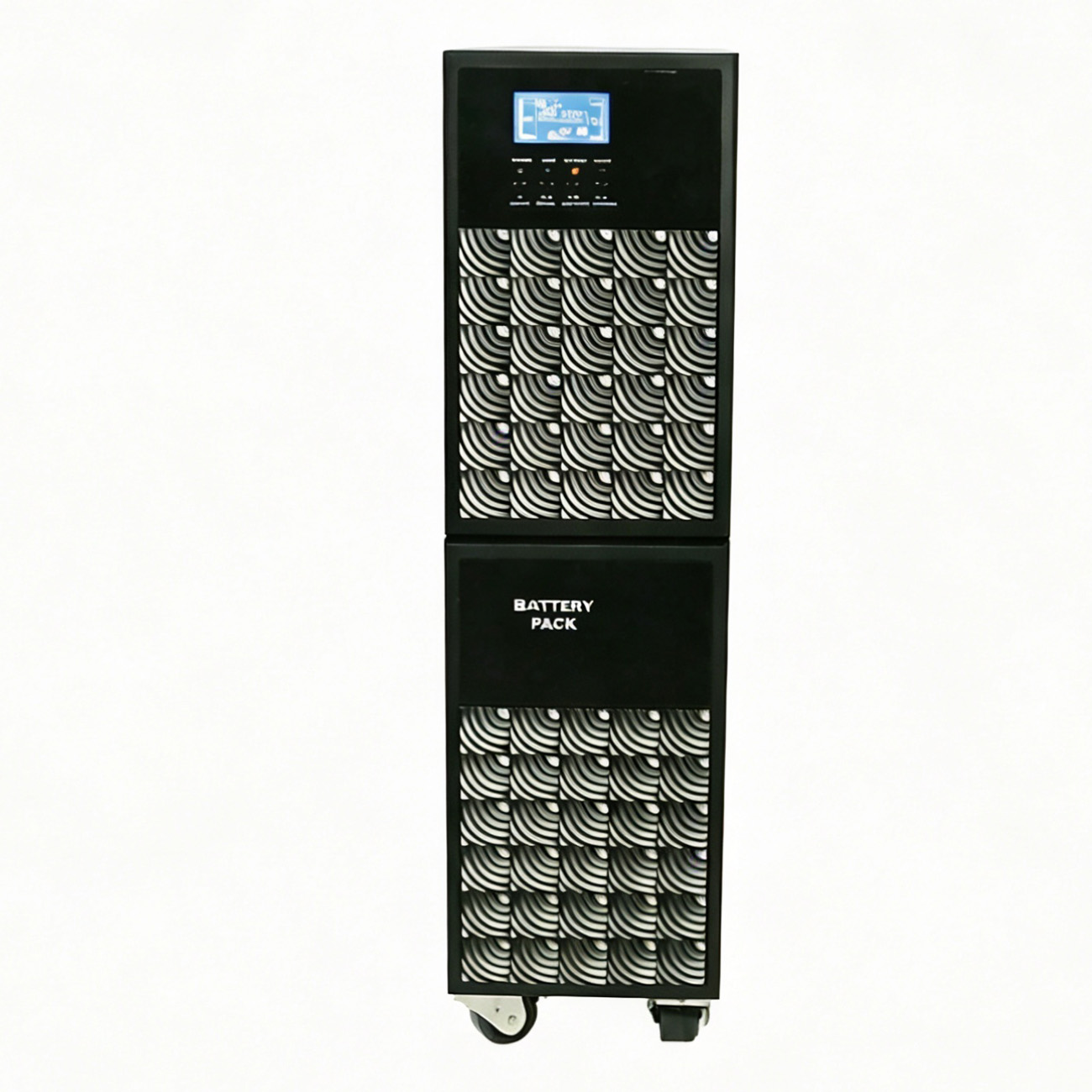

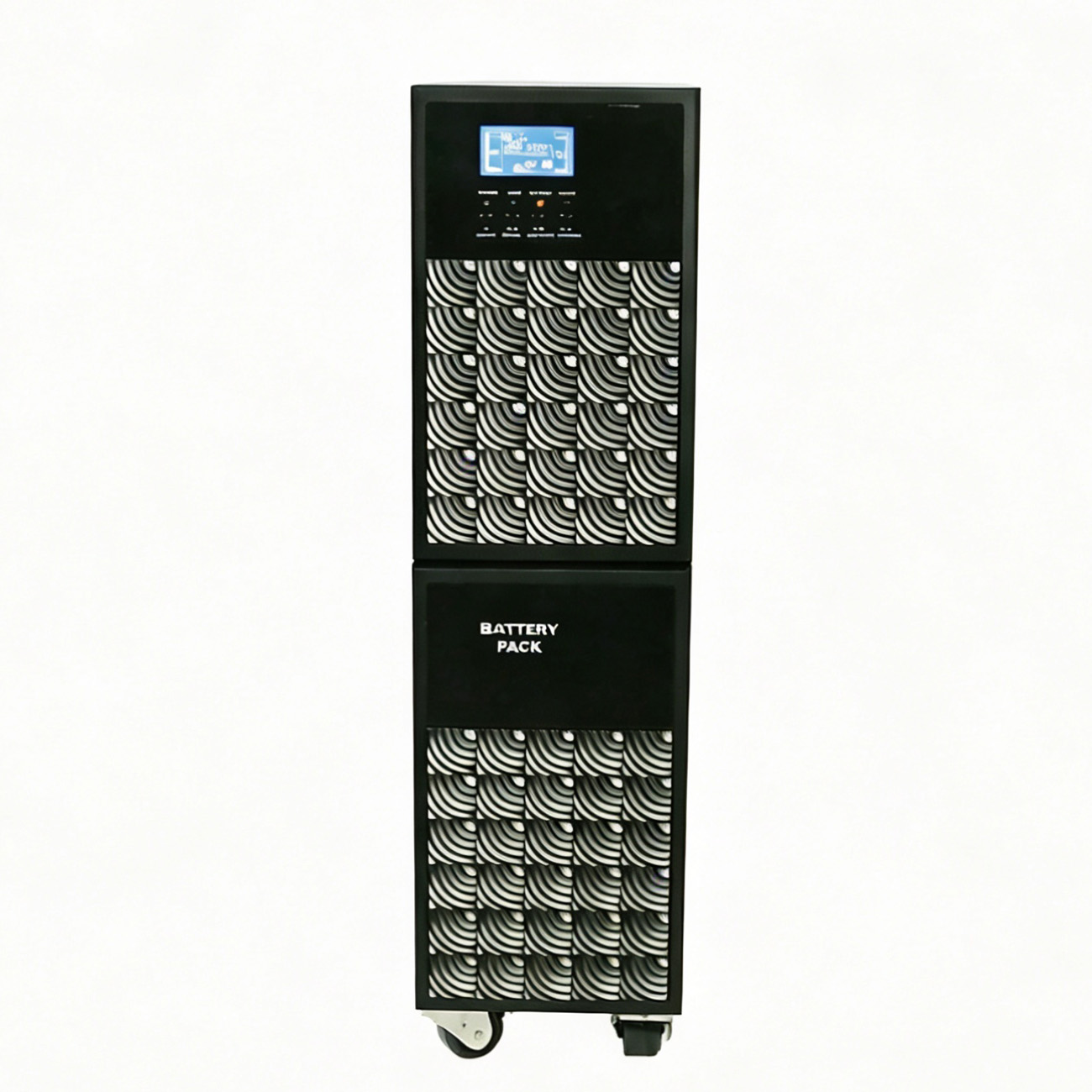

Product Name: 11-H 10kVA Standard UPS
Product Overview:
The 11-H 10kVA UPS features single-input, single-output, and double-conversion online operation, providing reliable power protection across various industries. Ideal for government, finance, telecom, education, transportation, meteorology, broadcasting, taxation, healthcare, energy, and power sectors.

Key Features:

• True online double conversion for zero interruption power supply
• Microprocessor-controlled for high reliability
• Input power factor correction for better grid adaptability
• Output power factor up to 0.9 (1.0 optional)
• Wide input voltage range: 90V–300V
• High-efficiency frequency conversion mode, energy-saving
• Generator-compatible for stable backup power
• Optional SNMP card with USB/RS232 monitoring support
• User-friendly LCD for comprehensive UPS status monitoring
• ECO mode to reduce energy consumption
• Emergency Power Off (EPO) function
• DSP-controlled with optional maintenance bypass
• Intelligent battery charging design for extended battery life
• Optional built-in isolation transformer for enhanced output safety

Technical Notes:

• 1–3KVA UPS: output derated by 80% in constant voltage & frequency mode, 208VAC output also derated by 80%
• 6/10KVA UPS: output derated by 60% in constant voltage & frequency mode, 208VAC output derated by 90%
• Standard models currently do not support redundant parallel operation
• 200/208/220/230/240VAC applicable only for long-life models
