Description

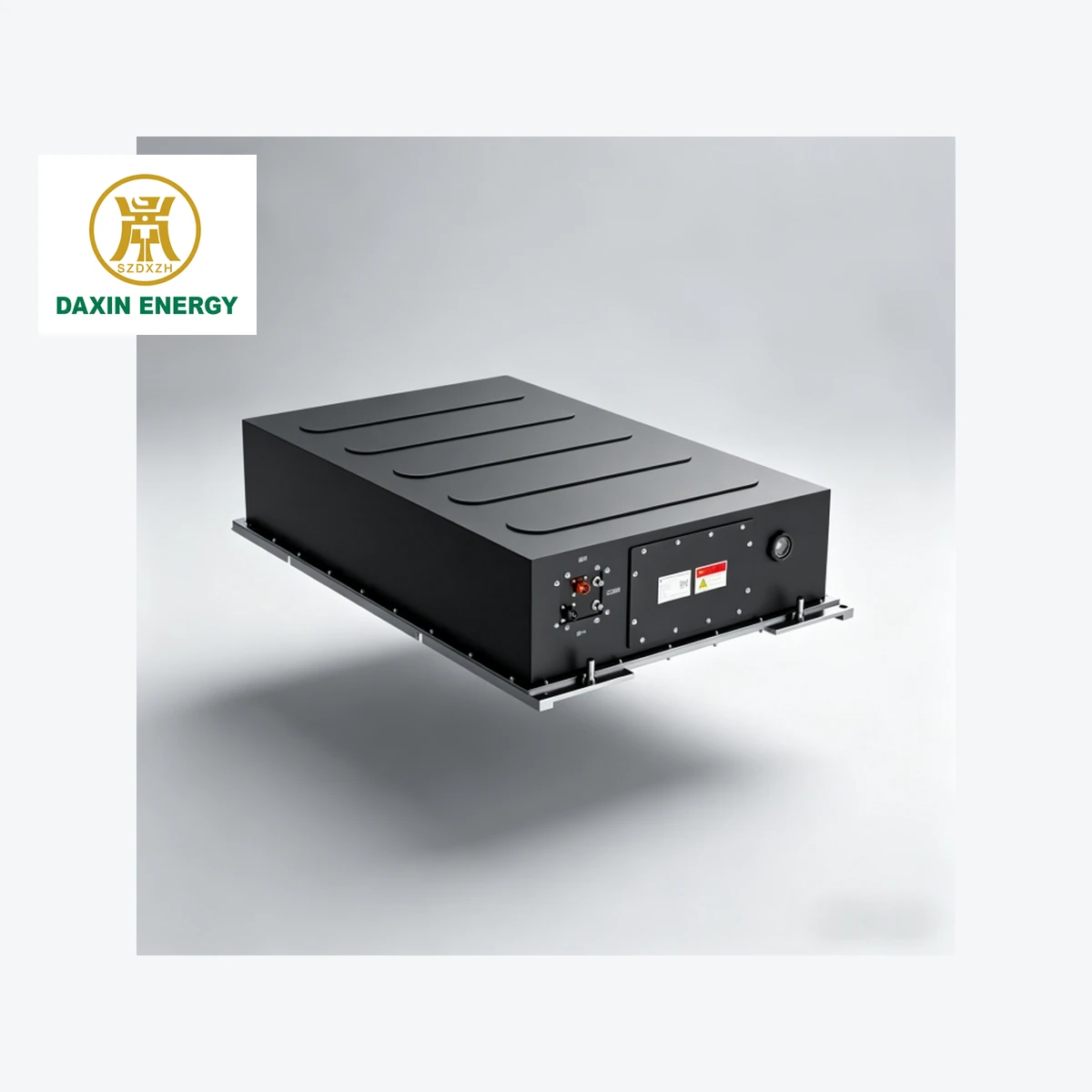

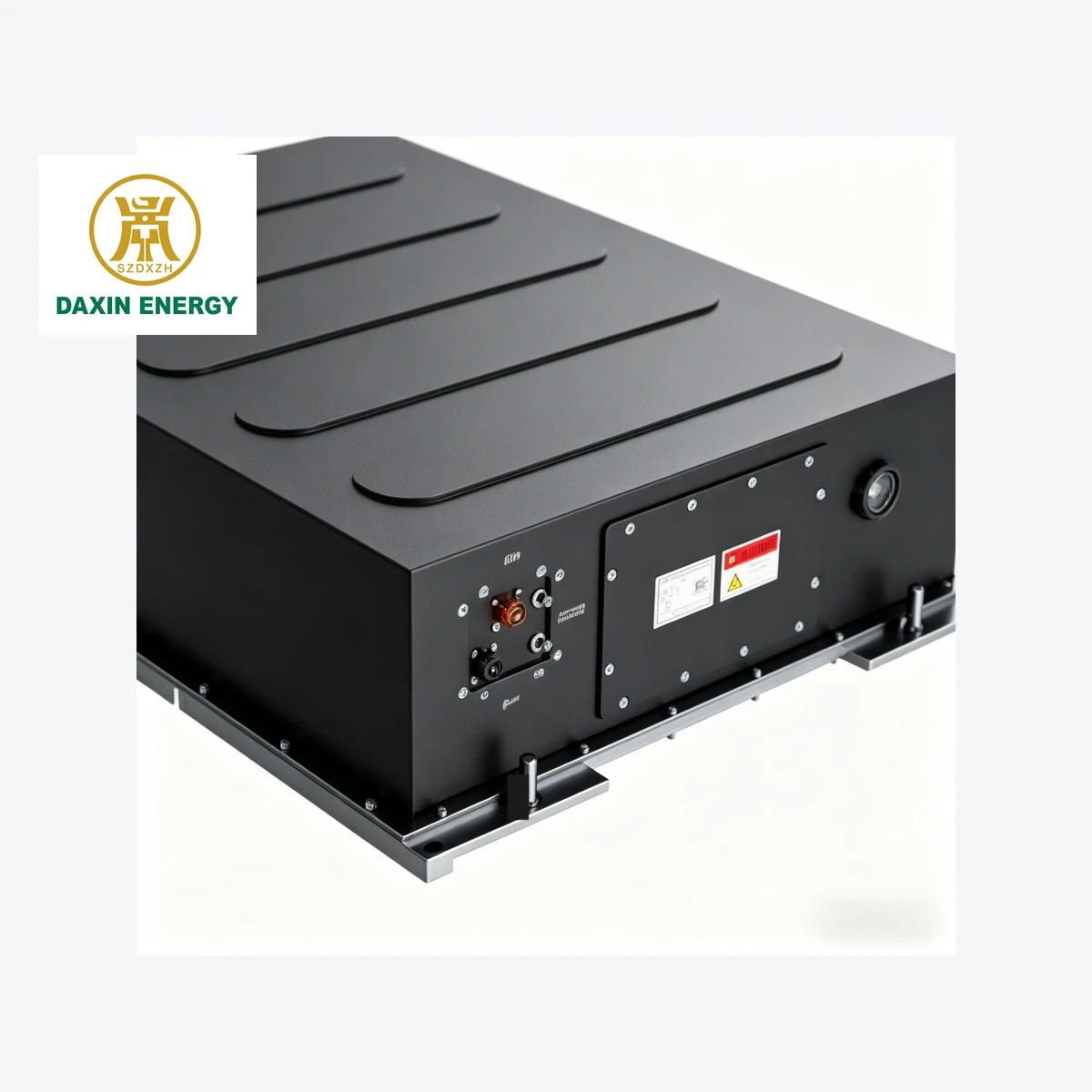

XY-K43 & XY-K52
Core Advantages
Full-Time Equalization
Intelligent liquid cooling temperature control system + optimized BMS management strategy, PACK temperature difference ≤ 2°C, achieves full-time cell balance
Flexible Configuration
Supports various series-parallel combinations, adopts standard hot-swap design
Next-Gen CTP Technology
Highly integrated structure, superior energy density, 10%-12% lower overall cost
High Safety Performance
Aluminum extrusion tray + sheet metal upper cover, built-in aerospace-grade fireproof material; excellent mechanical strength, thermal runaway fire insulation protection
| PACK Model | XY·P1-154280-L | XY·P1-166314-L |
|---|---|---|
| Specification Parameters | ||
| Cell Type | LFP Energy Storage Dedicated Cell | LFP Energy Storage Dedicated Cell |
| Assembly Structure | 1P48S | 1P52S |
| Nominal Voltage | 154V | 166V |
| Operating Voltage | 120V~175V | 130V~190V |
| Rated Capacity | 43.0kWh | 52.2kWh |
| Rated Charge/Discharge Rate | 0.5P | 0.5P |
| Fire Suppression System | Perfluorohexanone | Perfluorohexanone |
| Operating Ambient Temperature | -40°C~55°C | -40°C~55°C |
| Protection Rating | IP67 | IP67 |
| Dimension (LWH) | 7761121254(mm) | 7761196250(mm) |
| Weight | 316kg | 342kg |
