Description

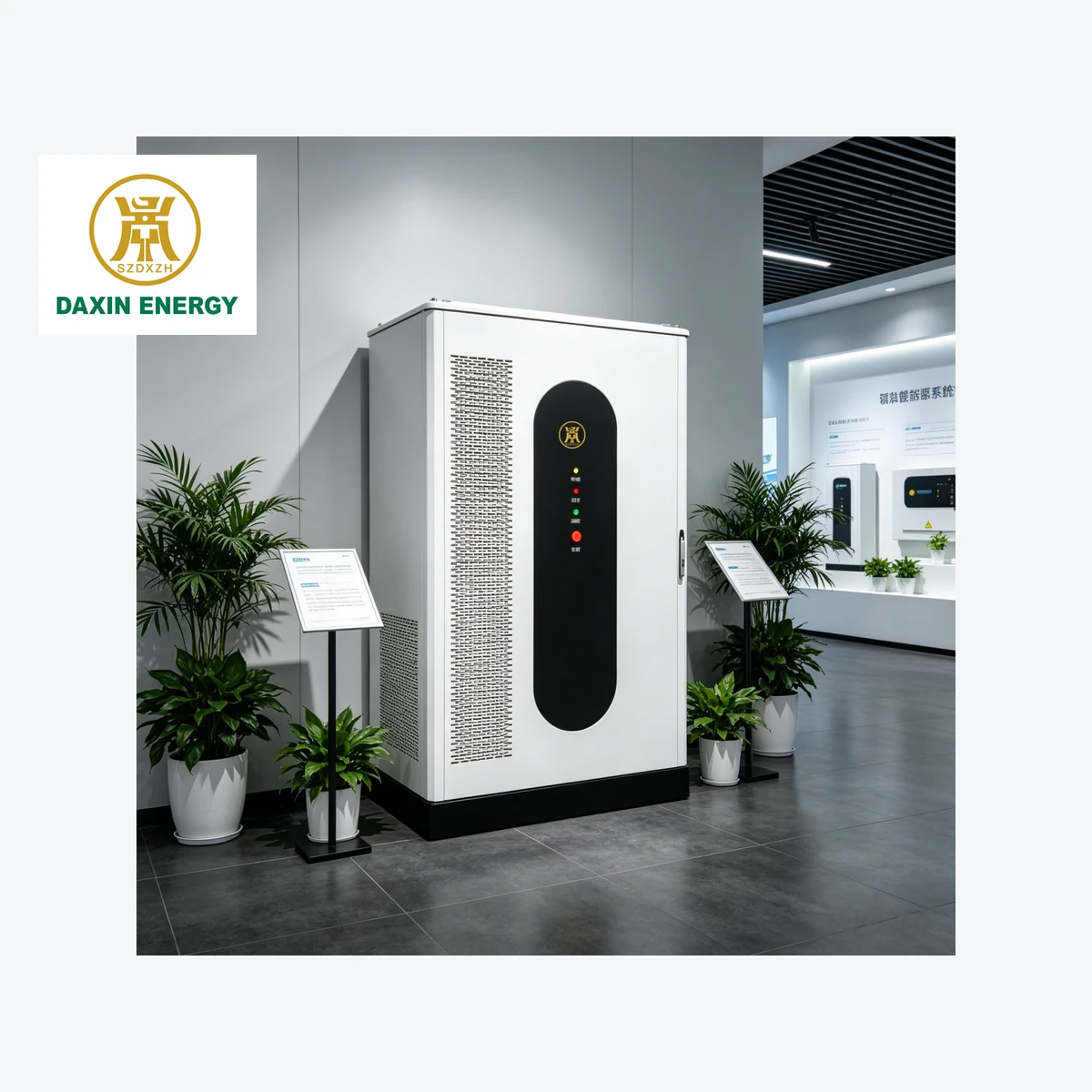

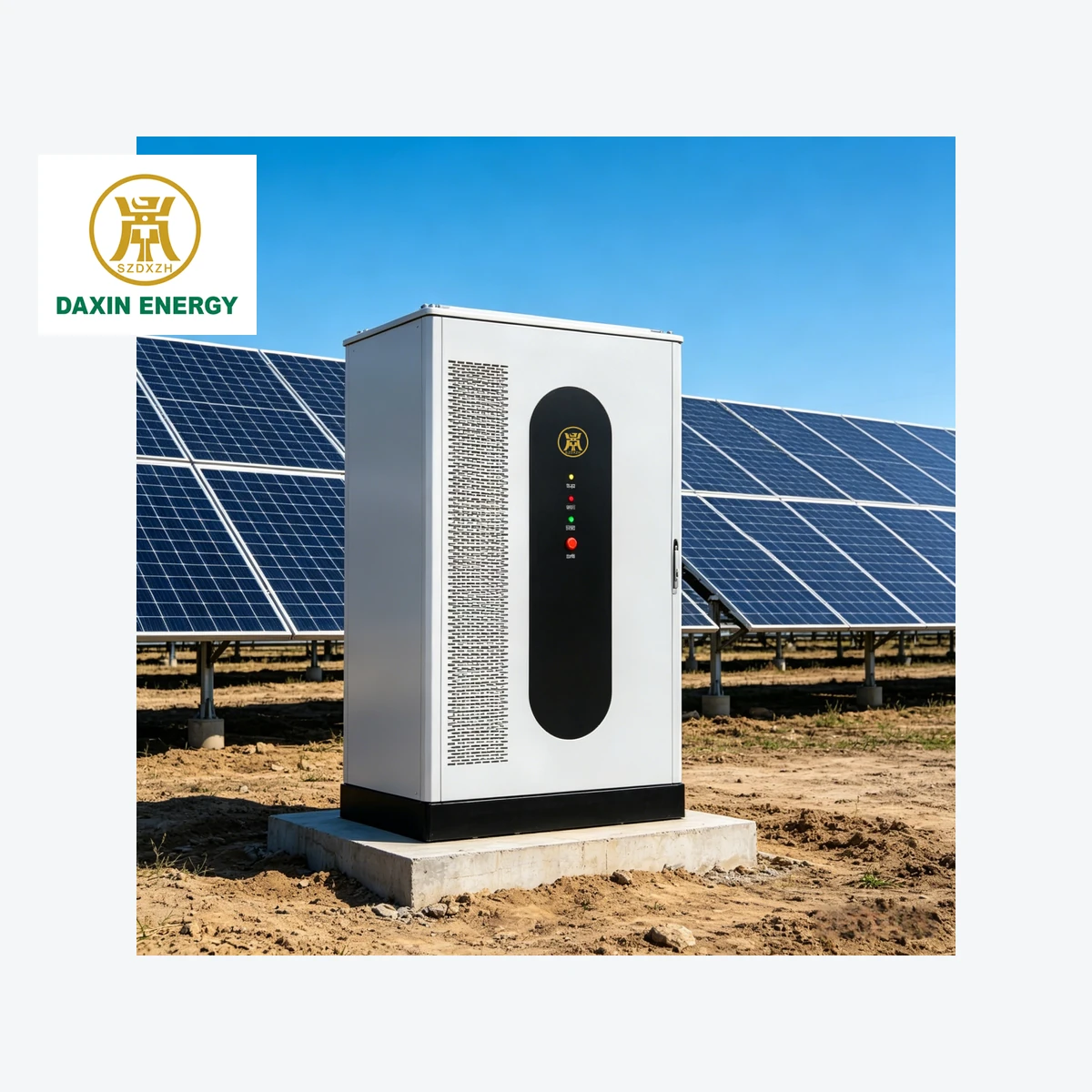

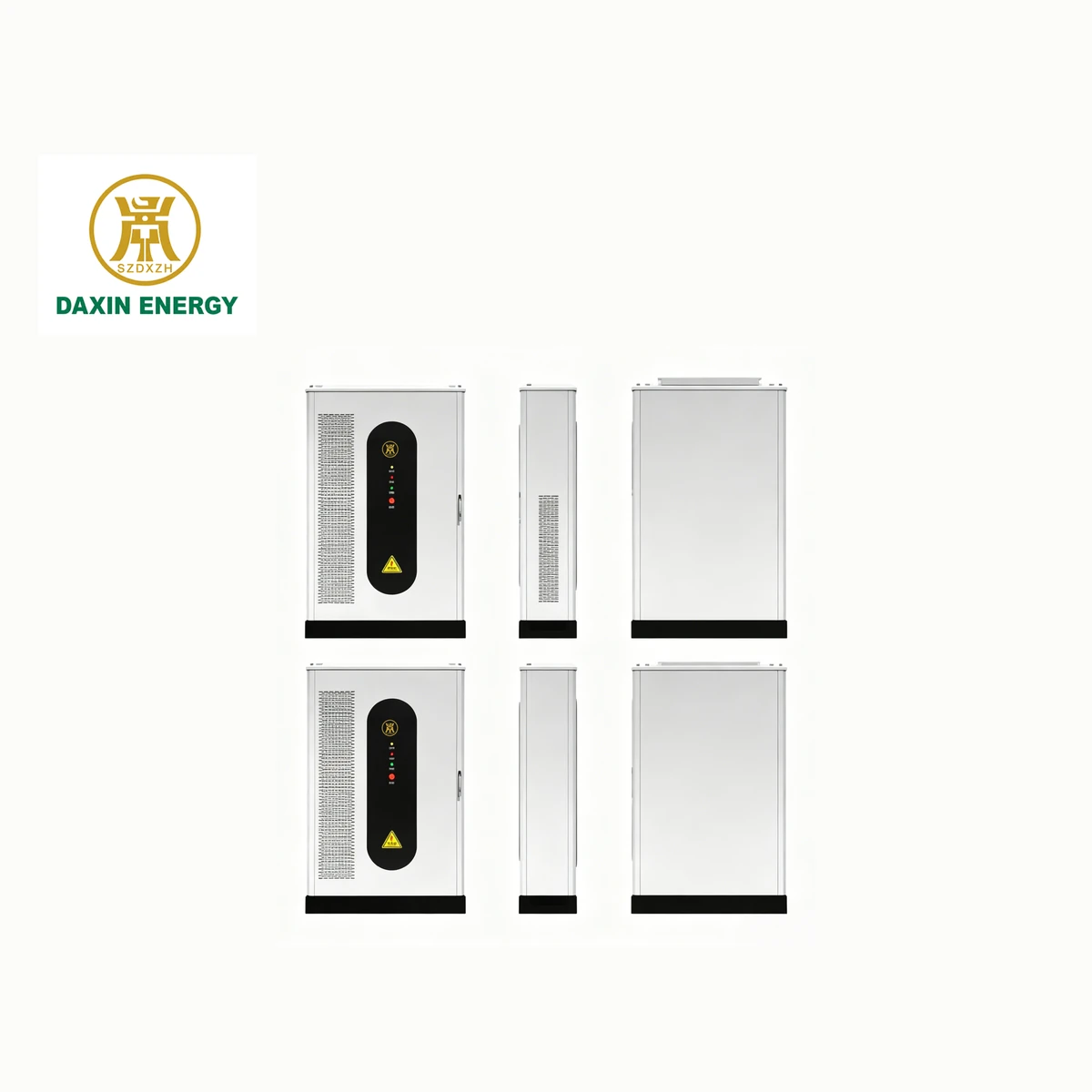

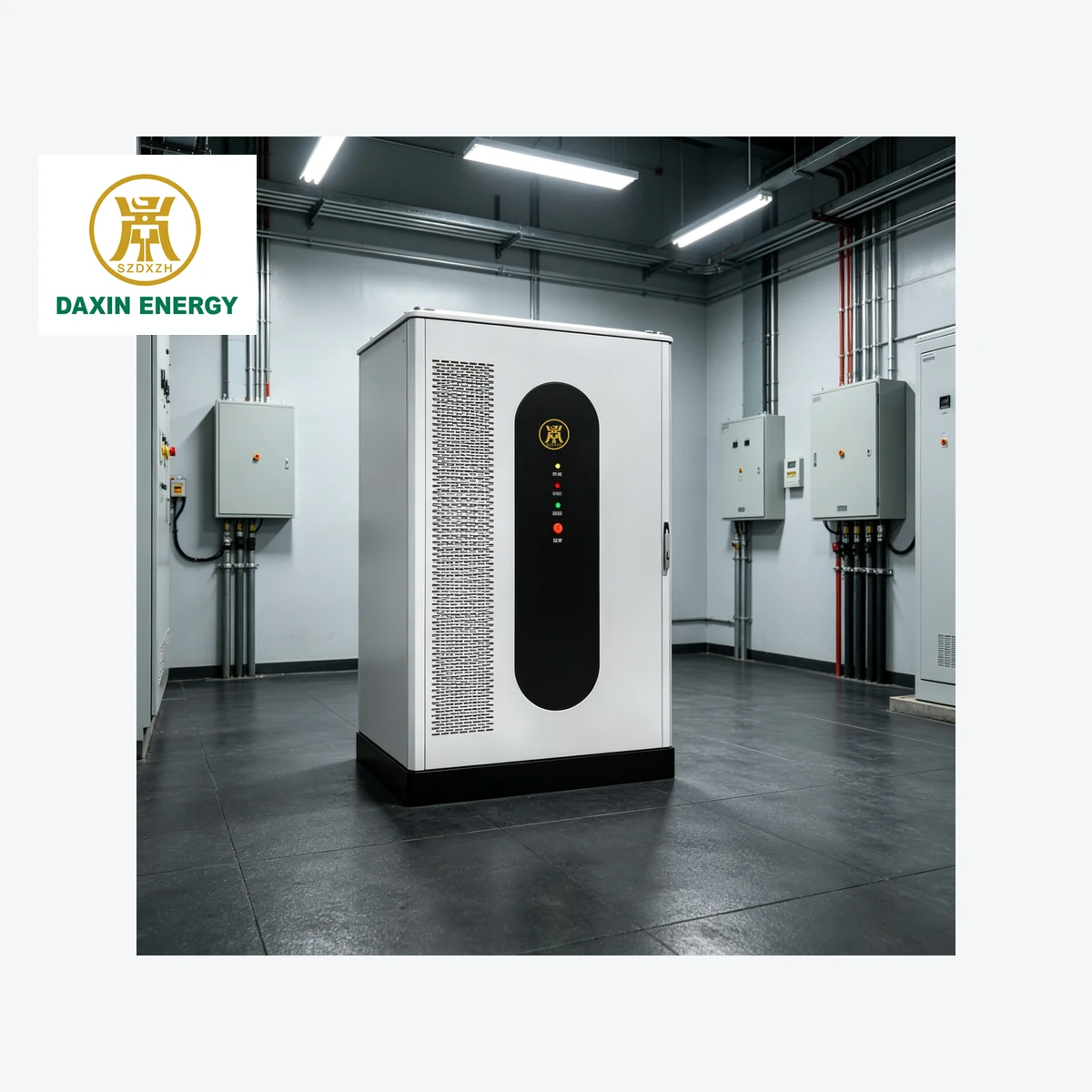

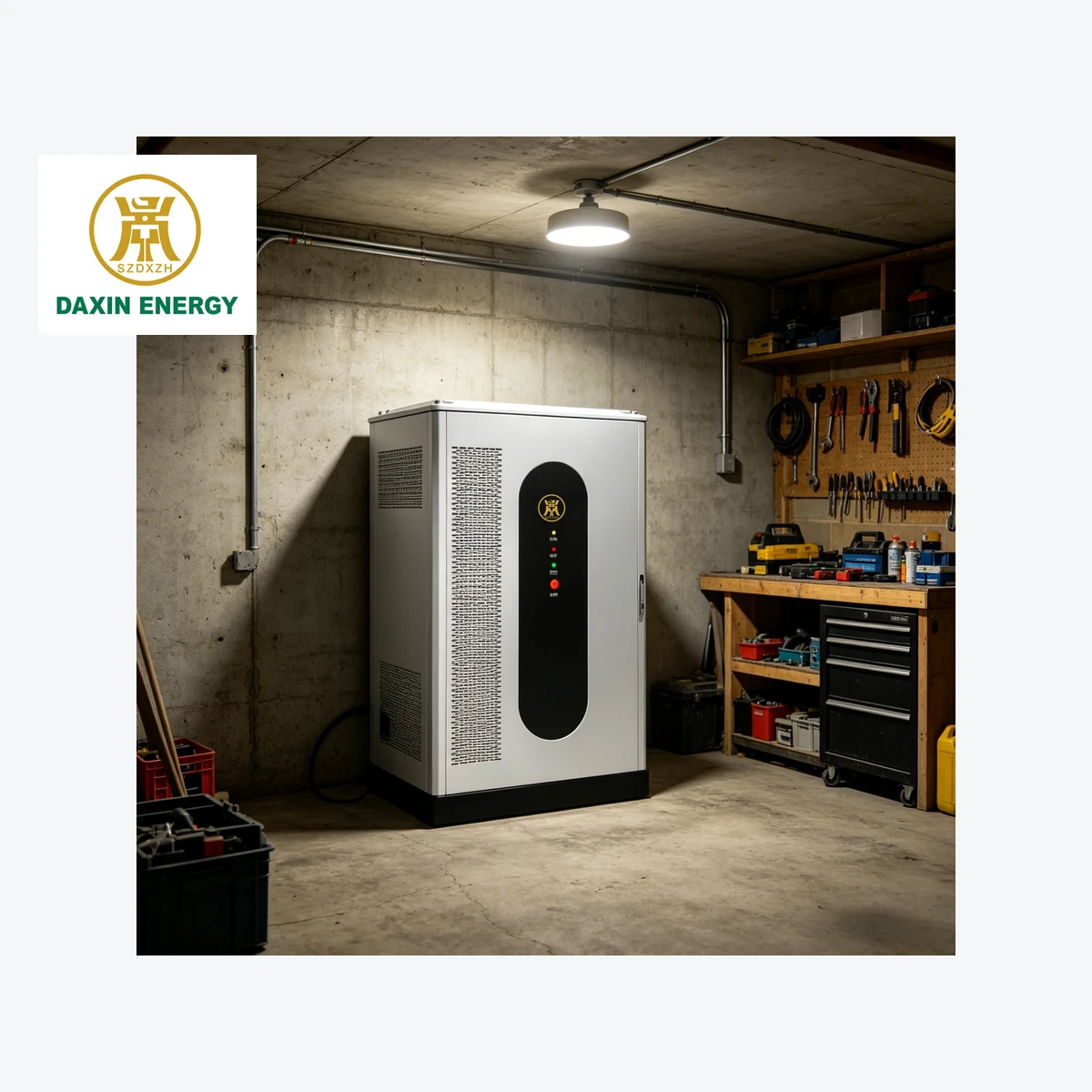

X-CUBE 215 Liquid-Cooled Outdoor Energy Storage Cabinet
Model: XY-ESS1-100/215-0.4-L
Ultra-High Efficiency & Intelligent Temperature Control
- Precision thermal management via liquid cooling system, PACK internal temperature difference ≤ 2°C
- Optimal matching between PCS and battery strings, overall unit efficiency ≥ 92%
High Integration & Flexible Deployment
- High power density design, single cabinet floor area: 1.9 m²
- Integrated, modular building-block design for easy transportation
- Supports side-by-side parallel multi-cabinet installation, plug-and-play ready
Outstanding Safety & Full-Range Protection
- Built with high thermal stability Lithium Iron Phosphate (LFP) energy storage cells
- Multi-dimensional active fire protection: prevention, containment, suppression & venting with layered safety barriers
Intelligent Cloud Management & Simplified O&M
- Full-lifecycle intelligent cloud monitoring & digital operation/maintenance
- Wide application scenarios: peak shaving & valley filling, demand side management, backup power, solar-storage integration etc.
- High-precision risk prediction & system failure diagnosis models
- Cloud-edge-end intelligent coordination and cloud-edge redundant control technology
User-Side Energy Storage System Topology Diagram
Components & Layout:
Metering Meter → Energy Management System (EMS)
Sampling Unit → Transformer → Utility Grid
Load Meter
Energy Storage Cabinet 1 / Cabinet 2 / Cabinet 3
Load Scenarios: Commercial, Industrial, Backup Power, Solar-Storage Charging, Residential Users, Communication Base Station, IDC Backup Power
- Dashed Line = Signal Cable
- Solid Line = Power Cable
- Max. supported parallel-connected cabinets: ≥10
Daxing Energy
BETTER ENERGY FOR ALLSystem Model: XY-ESS1-100/215-0.4-L
DC Side Specifications
Item Parameter Cell Type 280Ah dedicated LFP energy storage cell Cell Configuration 1P240S Nominal Capacity 215kWh Operating Voltage 600V~876V Rated Charge/Discharge Rate 0.5P Compliance Standards GB/T 34131; GB/T 36276 AC Side Specifications
Item Parameter AC Rated Output Power 100kW AC Maximum Output Power 110kW AC Current THD <3% Rated Grid Voltage 380V/400V Rated Grid Frequency 50Hz Compliance Standards GB/T 34133; GB/T 34120 Geeral Specifications
Item Parameter Max. System Efficiency ≥92.0% (excluding auxiliary losses) Depth of Discharge (DOD) 100% Cycle Lifespan ≥10,000 cycles Protection Rating IP54 (PACK module up to IP67) Cooling Method Liquid Cooling Fire Protection Dual-layer system-level + PACK-level fire suppression Communication Interface Ethernet Communication Protocol Modbus TCP, IEC104 Noise Level ≤75dB Operating Ambient Temperature -20°C~55°C Ambient Humidity 5%~95% Operating Altitude Max 4000m (performance derating above 2000m) Dimensions (W×D×H) 1400×1385×2420(mm) Total Weight 3000kg Disclaimer
This product datasheet is compiled based on the latest available data to ensure comprehensiveness and accuracy. Guangzhou Starwing Smart Energy Technology Co., Ltd. reserves the right to modify product data and specifications without prior notice.
All final interpretation rights belong to Shenzhen Daxin Intelligent Equipment Technology Co., Lt
