What Is the DAXIN 3H15kVA Low-Frequency 3/1 Phase UPS?
The DAXIN 3H15kVA is a low-frequency 3/1 phase online UPS for critical loads that require three-phase input and single-phase output.
Key Benefits
- Three-phase input and single-phase output support specific distribution architectures.
- Low-frequency online design targets stable industrial-grade power protection.
- Digital control, display, alarms and protection support system operation.
- Bypass, communication and battery arrangements are configurable by model.
- Final power rating and electrical data are confirmed before ordering.

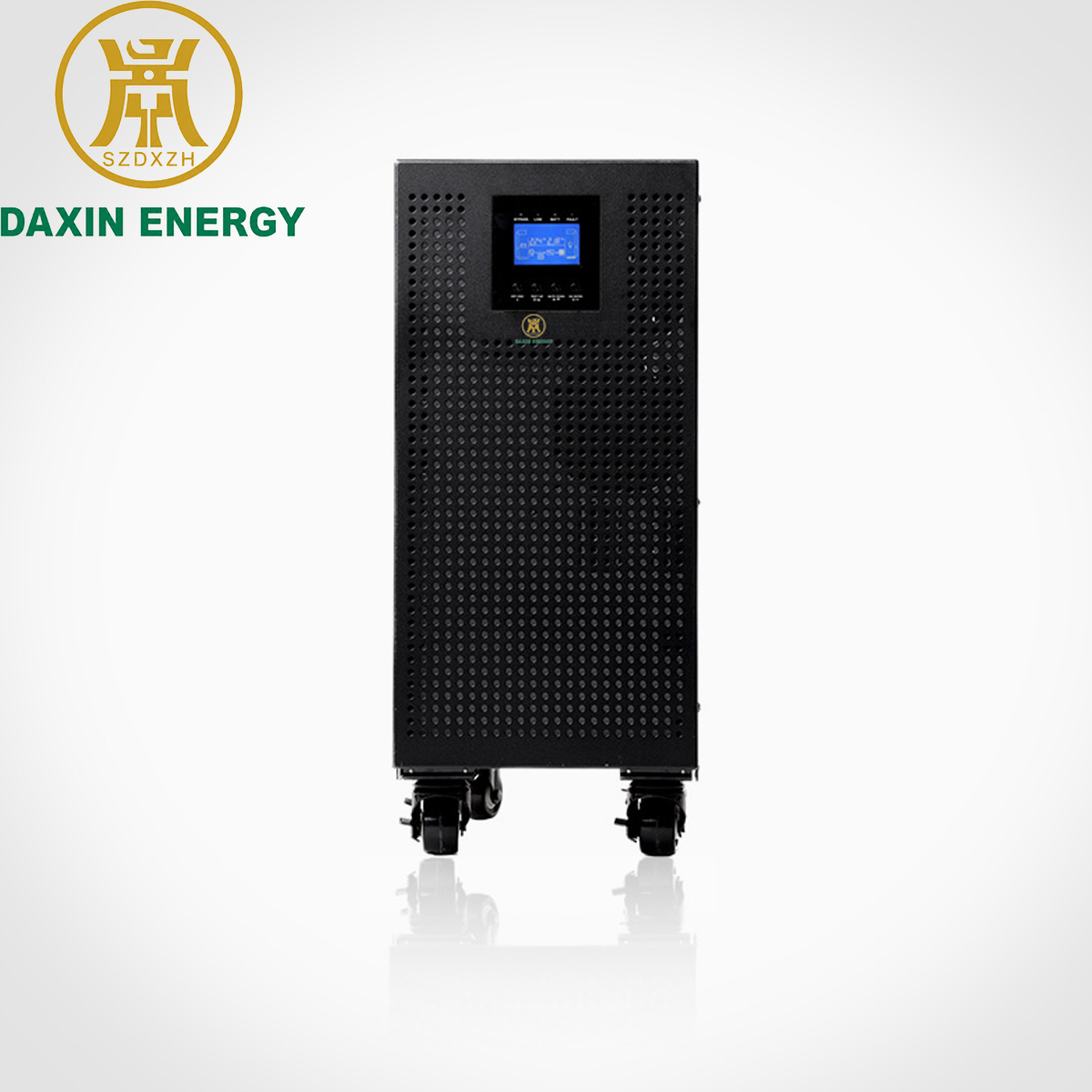

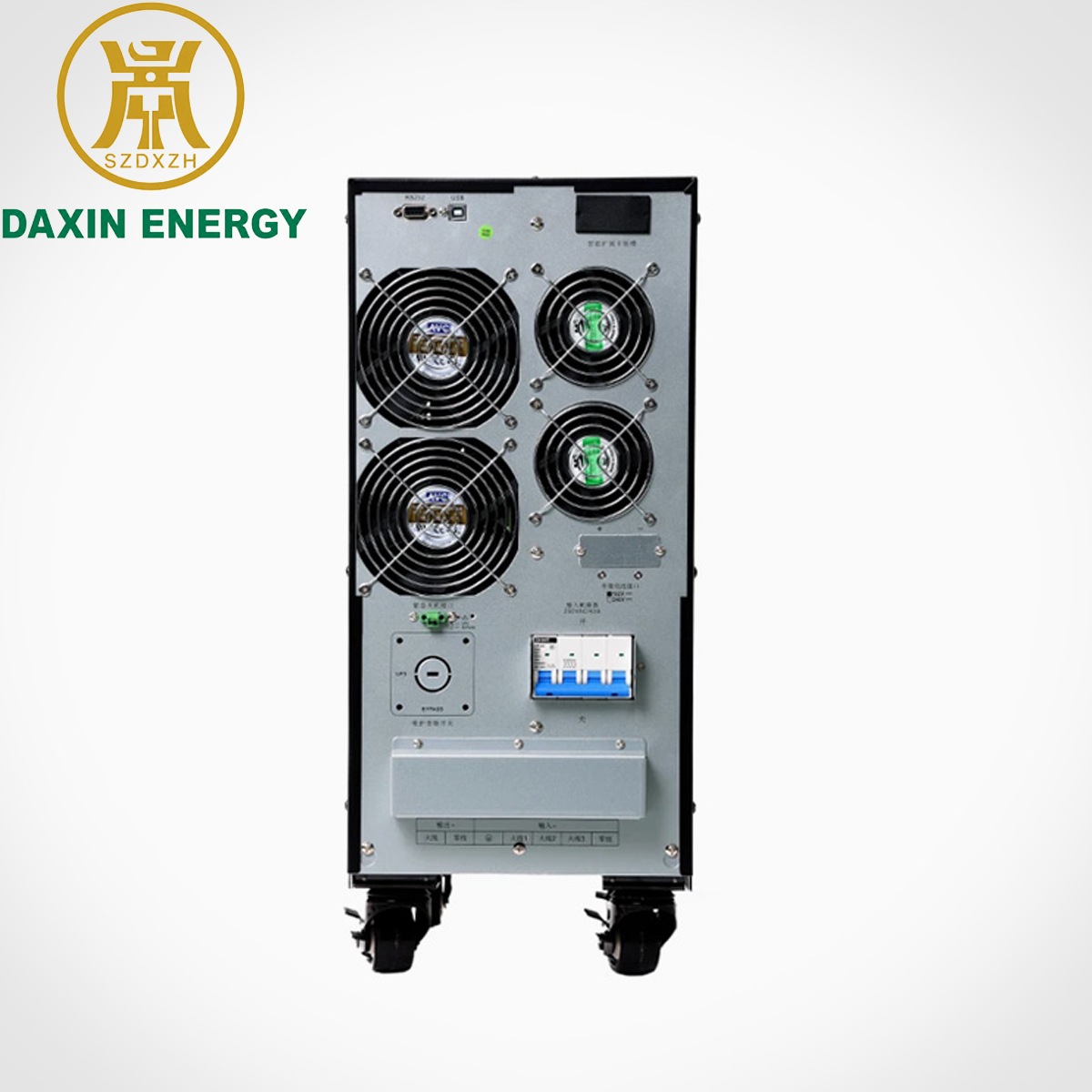

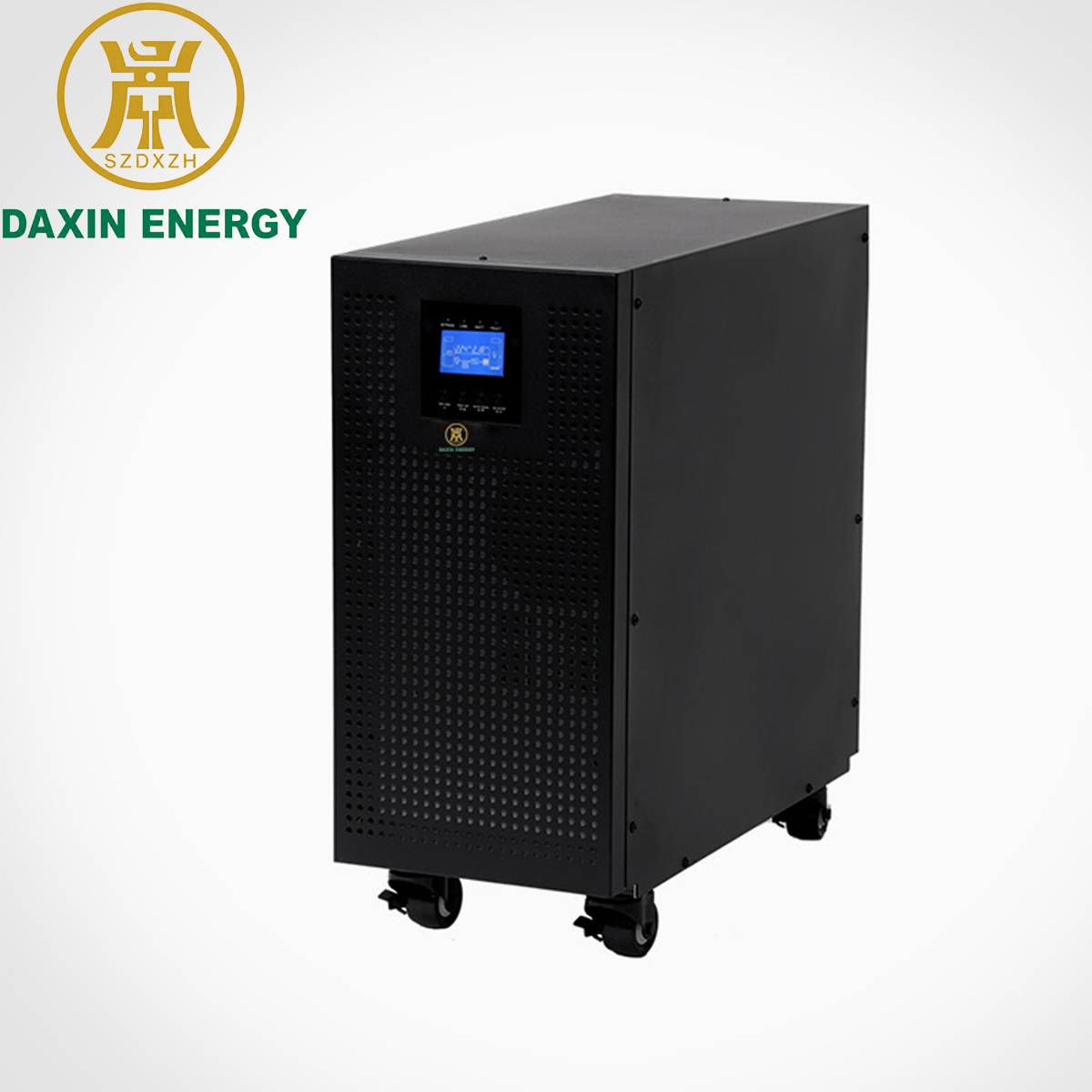

Product Views and Technical Reference
| Item | 3H10kVA | 3H15kVA | 3H20kVA | 3H30kVA |
|---|---|---|---|---|
| Model | 3H10kVA | 3H15kVA | 3H20kVA | 3H30kVA |
| Capacity | 10kVA/9kW | 15kVA/13.5kW | 20kVA/18kW | 30kVA/24kW |
| Input | ||||
| Phase | Three‑phase with neutral grounded | Three‑phase with neutral grounded | Three‑phase with neutral grounded | Three‑phase grounded |
| Voltage Range Min transfer voltage Min original voltage Max original voltage | 50% load:110VAC ±3%; 100% load:176VAC ±3% Min transfer voltage +10V 300VAC ±3% Max transfer voltage‑10V | Min transfer voltage +10V 300VAC ±3% Max transfer voltage‑10V | Min transfer voltage +10V 300VAC ±3% Max transfer voltage‑10V | 111VAC(L‑N)@50% load; 176VAC(L‑N)@100% load Min transfer voltage +10V 300VAC ±3% Max transfer voltage‑10V |
| Frequency Range | 46‑54Hz@50Hz; 56‑64Hz@60Hz | 46‑54Hz@50Hz; 56‑64Hz@60Hz | 46‑54Hz@50Hz; 56‑64Hz@60Hz | 46‑54Hz@50Hz; 56‑64Hz@60Hz |
| Power Factor | N/A | N/A | N/A | ≥0.99@100% load |
| Output | ||||
| Output Voltage | 208/220/230/240VAC | 208/220/230/240VAC | 208/220/230/240VAC | 208/220/230/240VAC |
| AC Voltage Range | ±1% | ±1% | ±1% | ±1% |
| Frequency Range(Sync Range) | 46‑54Hz@50Hz system 56‑64Hz@60Hz system | 46‑54Hz@50Hz system 56‑64Hz@60Hz system | 46‑54Hz@50Hz system 56‑64Hz@60Hz system | 46‑54Hz@50Hz system 56‑64Hz@60Hz system |
| Frequency Range(Battery Mode) | 50Hz±0.1Hz or 60Hz±0.1Hz | 50Hz±0.1Hz or 60Hz±0.1Hz | 50Hz±0.1Hz or 60Hz±0.1Hz | 50Hz±0.1Hz or 60Hz±0.1Hz |
| Current Crest Factor | 3:1(max) | 3:1(max) | 3:1(max) | 3:1(max) |
| Total Harmonic Distortion | ≤3% THD (linear load); ≤5% THD (non‑linear load) | ≤3% THD (linear load); ≤5% THD (non‑linear load) | ≤3% THD (linear load); ≤5% THD (non‑linear load) | ≤2% THD (linear load); ≤5% THD (non‑linear load) |
| Transfer Time Mains to Battery Inverter to Bypass | 0ms 0ms | 0ms 0ms | 0ms 0ms | 0ms 0ms |
| Overload | 100%~110%:30min; 110%~130%:5min; >130%:1s | 100%~110%:15min; 110%~130%:30s; >130%:1s | 100%~110%:5min; 110%~130%:1s; >130%:Instant action | 100%~110%:10min; 110%~130%:1min; >130%:1s |
| Efficiency | ||||
| AC Mode | ＞91% | ＞91% | ＞91% | ＞90% |
| Battery Mode | ＞91% | ＞91% | ＞91% | ＞88% |
| Battery — Long‑run Model | ||||
| Battery Model | 12V, subject to application | 12V, subject to application | 12V, subject to application | Subject to application |
| Quantity | 16‑20 pcs | 16‑20 pcs | 16‑20 pcs | 18‑20 pcs |
| Charging Current | Default:4A ±10%; Max:1A,2A,4A optional | Default:4A ±10%; Max:1A,2A,4A optional | Default:4A ±10%; Max:1A,2A,4A optional | 12A±10% |
| Physical Properties — Long‑run Model | ||||
| Dimension: D × W × H (mm) | 442 × 190 × 318 | 592 × 250 × 576 | 592 × 250 × 576 | 910 × 380 × 910 |
| Net Weight (kg) | 15 | 24.5 | 28.5 | 67.3 |
| Operating Environment | ||||
| Operating Temperature | 0 ~ 50°C (Battery service life shortens above 25°C) | 0 ~ 50°C (Battery service life shortens above 25°C) | 0 ~ 50°C (Battery service life shortens above 25°C) | 0 ~ 40°C (Battery service life shortens above 25°C) |
| Relative Humidity | ＜95%, non‑condensing | ＜95%, non‑condensing | ＜95%, non‑condensing | ＜95%, non‑condensing |
| Max Operating Altitude | ＜1000 m | ＜1000 m | ＜1000 m | ＜1000 m |
| Noise | ＜60dB@1 Meter | ＜60dB@1 Meter | ＜60dB@1 Meter | ＜65dB@1 Meter |
| Control & Management | ||||
| Intelligent RS‑232/USB | Support Windows®2000/2003/XP/Vista/2008、Windows®7/8、Linux、Unix, and MAC | Support Windows®2000/2003/XP/Vista/2008、Windows®7/8、Linux、Unix, and MAC | Support Windows®2000/2003/XP/Vista/2008、Windows®7/8、Linux、Unix, and MAC | Support Windows®2000/2003/XP/Vista/2008、Windows®7/8、Linux、Unix, and MAC |
| Optional SNMP | Power management supports SNMP management and network management | Power management supports SNMP management and network management | Power management supports SNMP management and network management | Power management supports SNMP management and network management |
Footnotes
Typical Applications
Industrial controls, communication systems, transport, medical facilities and projects with three-phase input and single-phase loads.
Selection and Project Planning
Confirm the exact power rating, input/output phase, voltage, frequency, power factor, battery voltage, runtime, bypass, communications, dimensions, environmental limits and installation method against the selected model and project drawings before ordering.
