Description

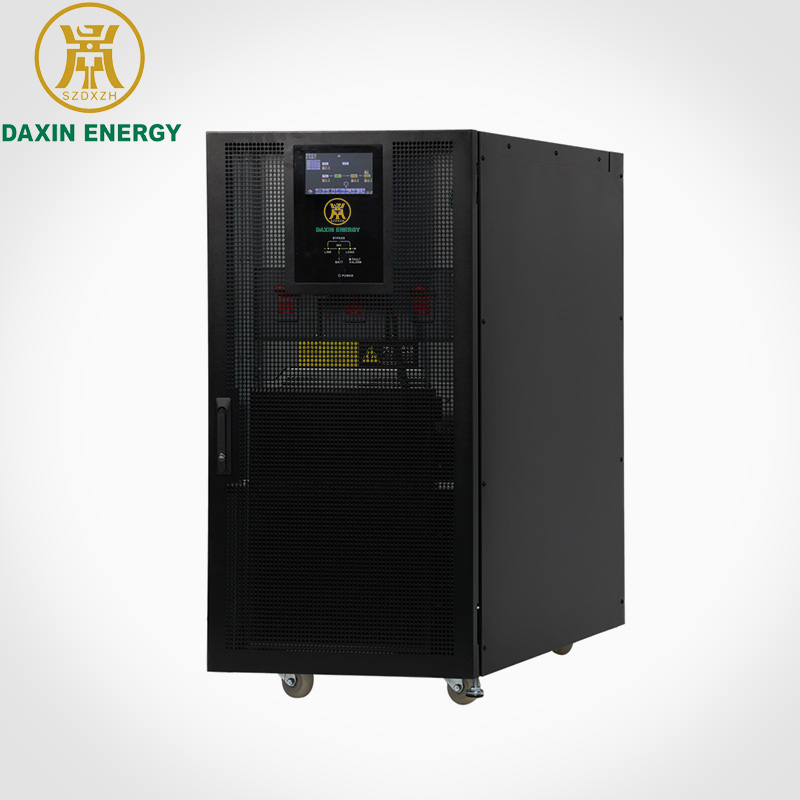

EX3C3 180kVA Three-Phase Online UPS
The DAXIN ENERGY EX3C3 180kVA online UPS is engineered for large-scale critical power backup applications that require reliable three-phase power, high efficiency and stable system operation. Its double-conversion online topology helps isolate sensitive equipment from grid fluctuation, voltage instability, frequency variation, harmonic interference and unexpected power interruptions.
Key Features
High-Reliability Online Double-Conversion Design
- True online double-conversion topology delivers clean sine wave output for critical loads.
- Output frequency tracking, phase locking, voltage regulation and noise filtering reduce the impact of unstable grid power.
- Advanced modular dual-CPU control improves system reliability and operating stability.
- Wide AC input voltage range helps reduce unnecessary battery discharge in poor power environments.
- DC start function allows the UPS to start directly from battery when utility power is unavailable.
High Efficiency and Grid-Friendly Performance
- Advanced PFC technology keeps the input power factor close to 1.
- Input harmonic filter design helps reduce feedback pollution to the utility grid.
- Input and output harmonic filters minimize harmonic interference caused by the UPS system.
- High-frequency filtering and synchronization technology improves compatibility with generator power.
Complete Protection Functions
- Output overload protection.
- Output short-circuit protection.
- Inverter over-temperature protection.
- Battery low-voltage warning protection.
- Battery overcharge protection.
- Manual maintenance bypass switch supports easier maintenance without interrupting load power.

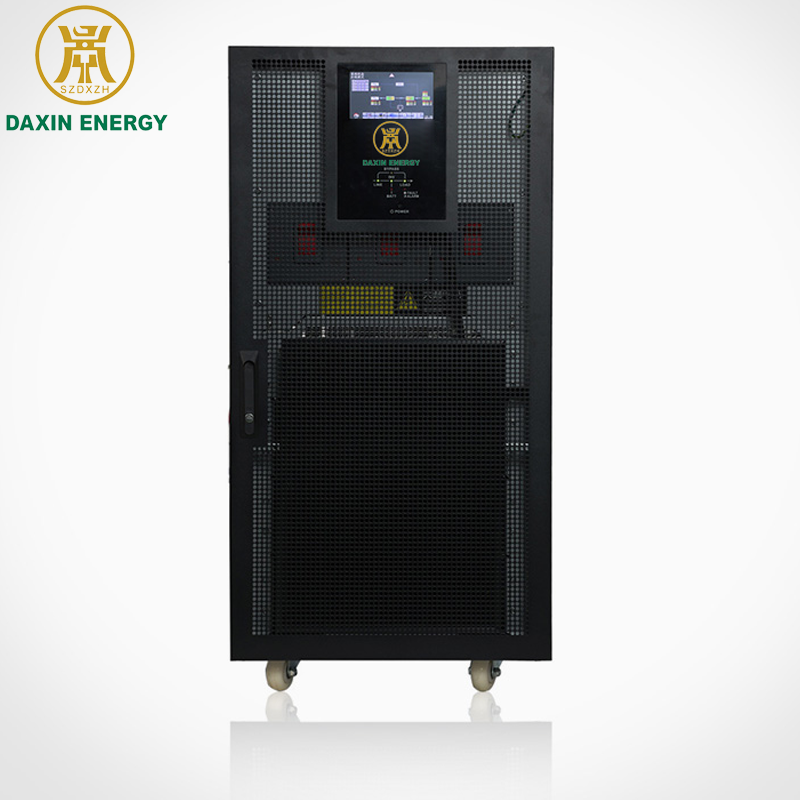

LCD Display and Intelligent Management
- LCD display shows UPS operating status, system parameters and alarm information in real time.
- RS232 / RS485 communication interfaces support local monitoring and system integration.
- Optional SNMP network adapter enables remote UPS monitoring and centralized power management.
- Compatible with intelligent UPS monitoring software for clear visibility of operating data.
Optional Intelligent Battery Monitoring Module
- Supports single battery detection and monitoring.
- Provides over-voltage, under-voltage and voltage difference alarm functions.
- Battery fault information can be displayed on the screen to help administrators respond quickly.
Strong Environmental Adaptability

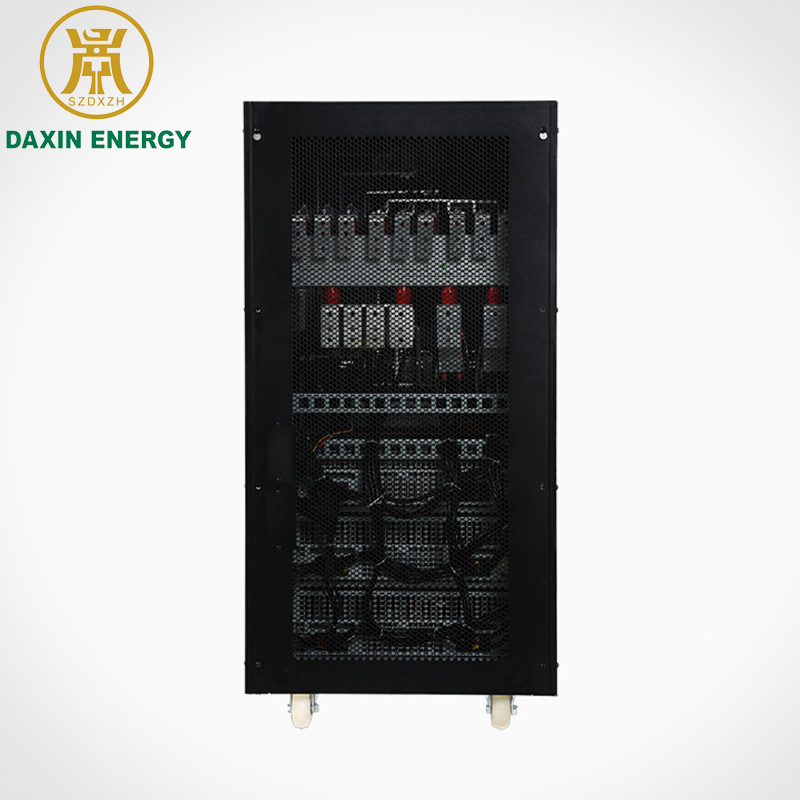

The circuit boards are installed in a fully enclosed structure and treated with conformal coating, improving reliability in harsh environments such as tunnels, plazas, industrial sites and infrastructure facilities.
Typical Applications
- Large data centers and server rooms
- Industrial automation and manufacturing facilities
- Telecom core equipment rooms
- Hospitals and medical systems
- Transportation infrastructure and tunnel projects
- Commercial buildings and large office parks
- Emergency backup power systems

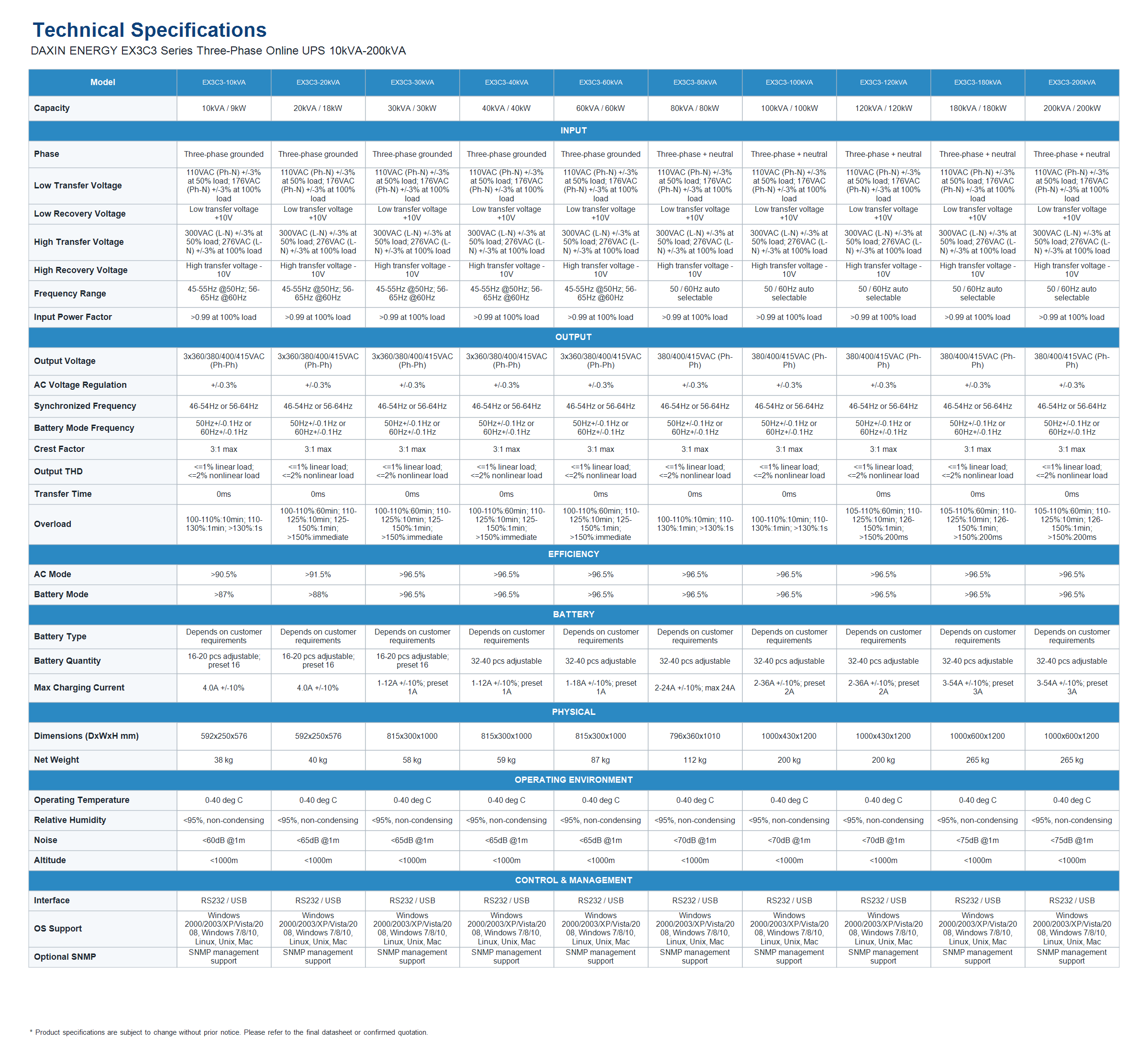

Technical Specifications
| Model | EX3C3-180kVA |
|---|---|
| Capacity | 180kVA / 180kW |
| Topology | Online double-conversion UPS |
| Input Phase | Three-phase + neutral |
| Input Voltage Range | 110VAC (Ph-N) +/-3% at 50% load; 176VAC (Ph-N) +/-3% at 100% load |
| Input Frequency | 50 / 60Hz auto selectable |
| Input Power Factor | > 0.99 at 100% load |
| Output Voltage | 380 / 400 / 415VAC, three-phase |
| AC Voltage Regulation | +/-0.3% |
| Output Frequency | 46-54Hz or 56-64Hz in synchronized mode; 50Hz +/-0.1Hz or 60Hz +/-0.1Hz in battery mode |
| Crest Factor | 3:1 |
| Output THD | <=1% with linear load; <=2% with nonlinear load |
| Transfer Time | 0ms |
| Efficiency | > 96.5% in AC mode; > 96.5% in battery mode |
| Battery Quantity | 32-40 pcs adjustable |
| Charging Current | 3-54A +/-10%, preset 3A |
| Dimensions | 1000 x 600 x 1200 mm |
| Net Weight | 265 kg |
| Operating Temperature | 0-40 deg C |
| Relative Humidity | < 95%, non-condensing |
| Noise | < 75dB at 1m |
| Communication | RS232 / RS485 / USB, optional SNMP |
