Description
Is This UPS Right for Your Project?
The DAXIN 3H20KL is a 20kVA/16kW online UPS with three-phase input and single-phase output for critical loads that require clean power and zero-transfer protection.
It helps customers balance a three-phase facility supply with sensitive single-phase equipment, while providing a wide input range, pure sine wave output and optional parallel expansion.
Typical Applications
- Data and communications rooms
- Medical and laboratory equipment
- Industrial process control
- Financial and security systems
What to Confirm Before Ordering
- 20kVA/16kW load suitability
- Three-phase input and single-phase output voltage
- Battery runtime and 16-20 cell configuration
- Parallel, bypass and communications options
Frequently Asked Questions
How should I choose the UPS capacity?
Start with the measured continuous load, startup or peak demand and expected expansion. DAXIN ENERGY can review the load list and recommend a practical operating margin.
How is battery runtime determined?
Runtime depends on load, battery voltage, battery capacity, battery age, temperature and inverter efficiency. Share the required backup duration and normal load for a project calculation.
Can this UPS work with a generator or remote monitoring system?
Generator and monitoring compatibility depends on the selected model and configuration. Confirm generator capacity, frequency stability and the required RS-232, RS-485, USB, Modbus or SNMP interface before ordering.
Request a Project Configuration
Send DAXIN ENERGY the load list, site voltage, required runtime, installation environment, communications and redundancy requirements. The final configuration is subject to the approved technical proposal.
Additional DAXIN High-Frequency UPS Product Video
Watch the product demonstration to review the UPS format, operating interface and application positioning. Final electrical configuration is subject to the approved technical proposal.
3-Phase Industrial-Grade Online UPS – 20KVA/16KW High-Capacity Power Protection Solution
DAXIN High-Frequency UPS Product Video
Watch the product demonstration to review the UPS format, operating interface and application positioning. Final electrical configuration is subject to the approved technical proposal.
High-Frequency Tri-to-Mono Phase Online UPS Series With EPO Protection Best For Critical Systems
What Is the DAXIN 3H20kVA Low-Frequency 3/1 Phase UPS?
The DAXIN 3H20kVA is a low-frequency 3/1 phase online UPS for critical loads that require three-phase input and single-phase output.
Key Benefits
- Three-phase input and single-phase output support specific distribution architectures.
- Low-frequency online design targets stable industrial-grade power protection.
- Digital control, display, alarms and protection support system operation.
- Bypass, communication and battery arrangements are configurable by model.
- Final power rating and electrical data are confirmed before ordering.

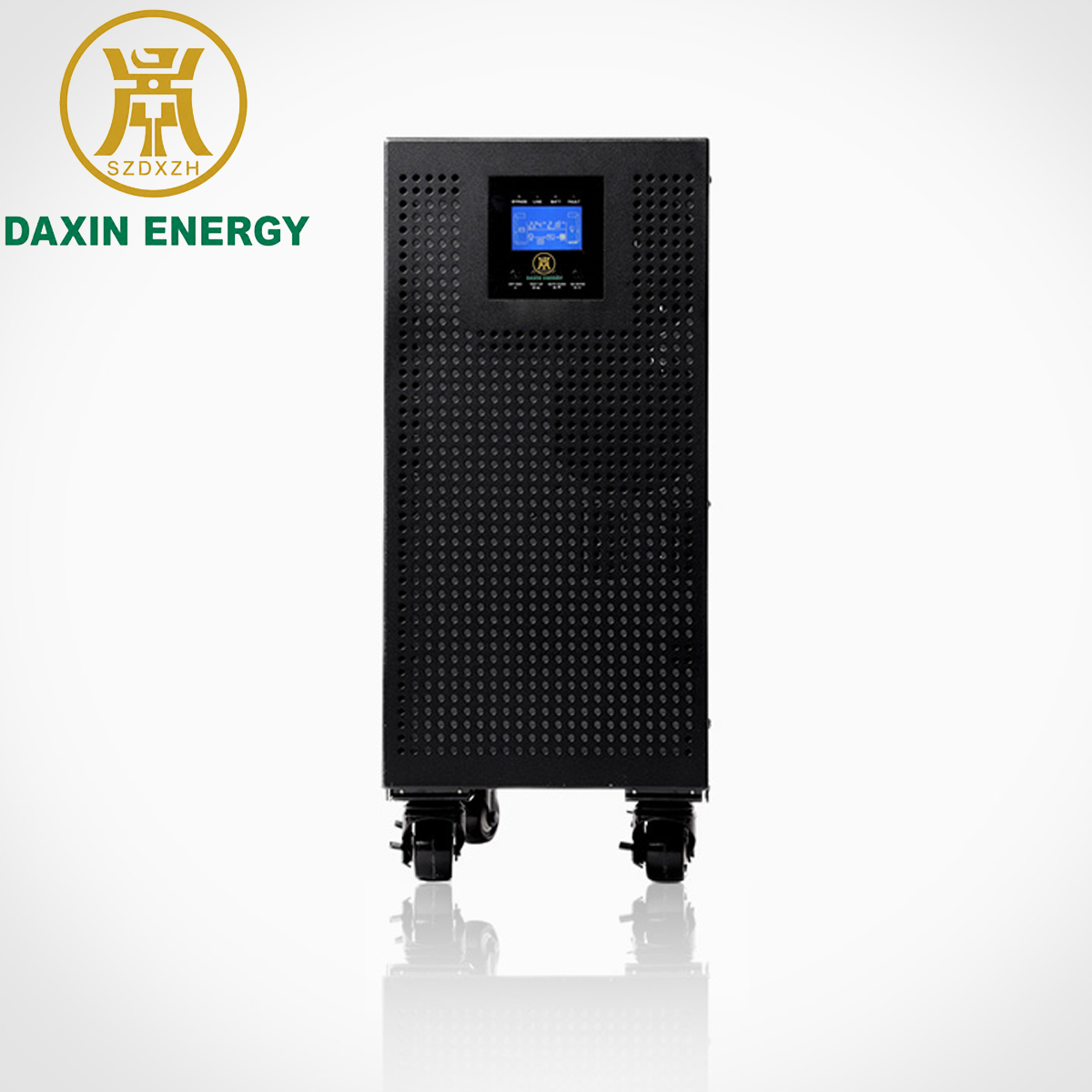

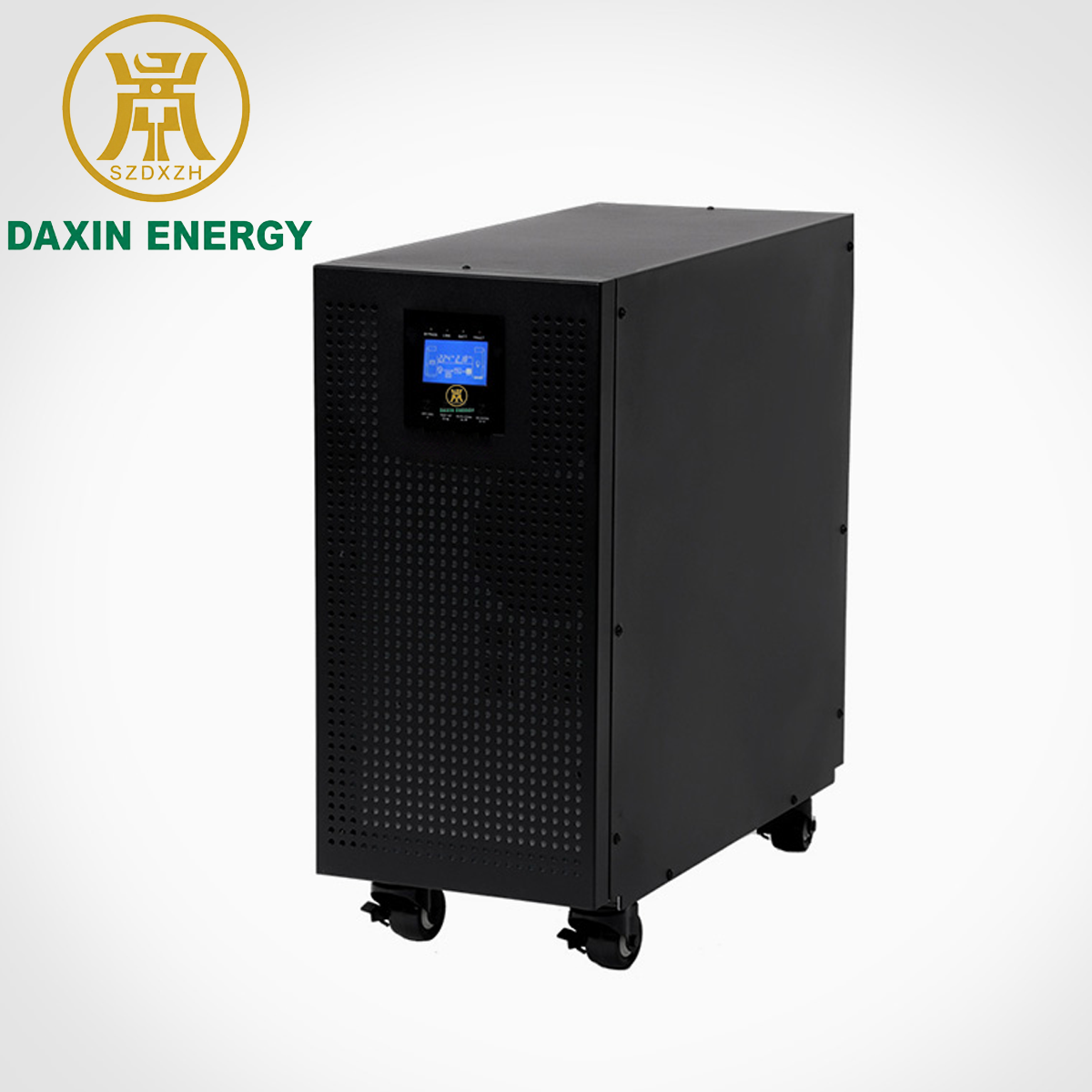

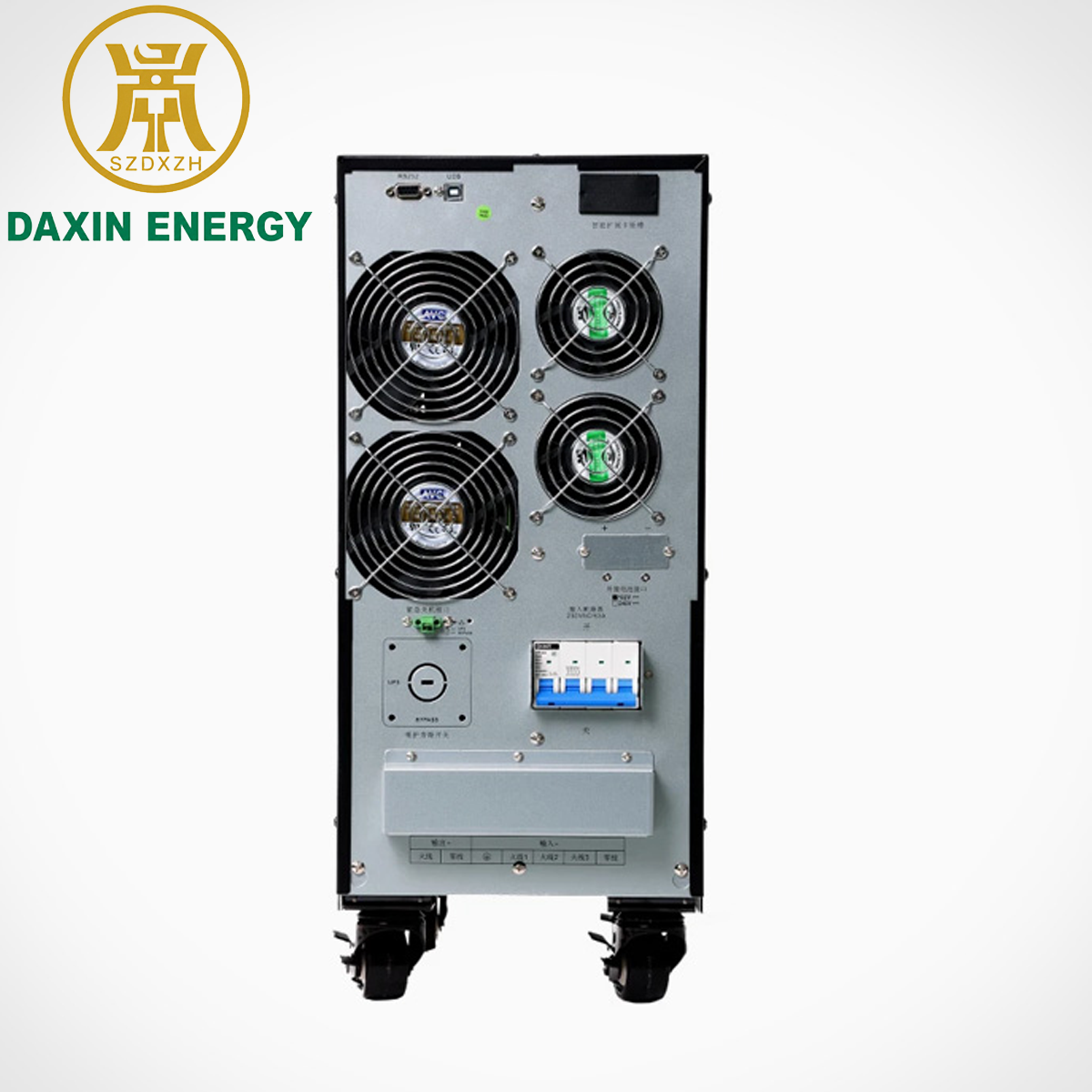

Product Views and Technical Reference
| Item | 3H10kVA | 3H15kVA | 3H20kVA | 3H30kVA |
|---|---|---|---|---|
| Model | 3H10kVA | 3H15kVA | 3H20kVA | 3H30kVA |
| Capacity | 10kVA/9kW | 15kVA/13.5kW | 20kVA/18kW | 30kVA/24kW |
| Input | ||||
| Phase | Three‑phase with neutral grounded | Three‑phase with neutral grounded | Three‑phase with neutral grounded | Three‑phase grounded |
| Voltage Range Min transfer voltage Min original voltage Max original voltage | 50% load:110VAC ±3%; 100% load:176VAC ±3% Min transfer voltage +10V 300VAC ±3% Max transfer voltage‑10V | Min transfer voltage +10V 300VAC ±3% Max transfer voltage‑10V | Min transfer voltage +10V 300VAC ±3% Max transfer voltage‑10V | 111VAC(L‑N)@50% load; 176VAC(L‑N)@100% load Min transfer voltage +10V 300VAC ±3% Max transfer voltage‑10V |
| Frequency Range | 46‑54Hz@50Hz; 56‑64Hz@60Hz | 46‑54Hz@50Hz; 56‑64Hz@60Hz | 46‑54Hz@50Hz; 56‑64Hz@60Hz | 46‑54Hz@50Hz; 56‑64Hz@60Hz |
| Power Factor | N/A | N/A | N/A | ≥0.99@100% load |
| Output | ||||
| Output Voltage | 208/220/230/240VAC | 208/220/230/240VAC | 208/220/230/240VAC | 208/220/230/240VAC |
| AC Voltage Range | ±1% | ±1% | ±1% | ±1% |
| Frequency Range(Sync Range) | 46‑54Hz@50Hz system 56‑64Hz@60Hz system | 46‑54Hz@50Hz system 56‑64Hz@60Hz system | 46‑54Hz@50Hz system 56‑64Hz@60Hz system | 46‑54Hz@50Hz system 56‑64Hz@60Hz system |
| Frequency Range(Battery Mode) | 50Hz±0.1Hz or 60Hz±0.1Hz | 50Hz±0.1Hz or 60Hz±0.1Hz | 50Hz±0.1Hz or 60Hz±0.1Hz | 50Hz±0.1Hz or 60Hz±0.1Hz |
| Current Crest Factor | 3:1(max) | 3:1(max) | 3:1(max) | 3:1(max) |
| Total Harmonic Distortion | ≤3% THD (linear load); ≤5% THD (non‑linear load) | ≤3% THD (linear load); ≤5% THD (non‑linear load) | ≤3% THD (linear load); ≤5% THD (non‑linear load) | ≤2% THD (linear load); ≤5% THD (non‑linear load) |
| Transfer Time Mains to Battery Inverter to Bypass | 0ms 0ms | 0ms 0ms | 0ms 0ms | 0ms 0ms |
| Overload | 100%~110%:30min; 110%~130%:5min; >130%:1s | 100%~110%:15min; 110%~130%:30s; >130%:1s | 100%~110%:5min; 110%~130%:1s; >130%:Instant action | 100%~110%:10min; 110%~130%:1min; >130%:1s |
| Efficiency | ||||
| AC Mode | ＞91% | ＞91% | ＞91% | ＞90% |
| Battery Mode | ＞91% | ＞91% | ＞91% | ＞88% |
| Battery — Long‑run Model | ||||
| Battery Model | 12V, subject to application | 12V, subject to application | 12V, subject to application | Subject to application |
| Quantity | 16‑20 pcs | 16‑20 pcs | 16‑20 pcs | 18‑20 pcs |
| Charging Current | Default:4A ±10%; Max:1A,2A,4A optional | Default:4A ±10%; Max:1A,2A,4A optional | Default:4A ±10%; Max:1A,2A,4A optional | 12A±10% |
| Physical Properties — Long‑run Model | ||||
| Dimension: D × W × H (mm) | 442 × 190 × 318 | 592 × 250 × 576 | 592 × 250 × 576 | 910 × 380 × 910 |
| Net Weight (kg) | 15 | 24.5 | 28.5 | 67.3 |
| Operating Environment | ||||
| Operating Temperature | 0 ~ 50°C (Battery service life shortens above 25°C) | 0 ~ 50°C (Battery service life shortens above 25°C) | 0 ~ 50°C (Battery service life shortens above 25°C) | 0 ~ 40°C (Battery service life shortens above 25°C) |
| Relative Humidity | ＜95%, non‑condensing | ＜95%, non‑condensing | ＜95%, non‑condensing | ＜95%, non‑condensing |
| Max Operating Altitude | ＜1000 m | ＜1000 m | ＜1000 m | ＜1000 m |
| Noise | ＜60dB@1 Meter | ＜60dB@1 Meter | ＜60dB@1 Meter | ＜65dB@1 Meter |
| Control & Management | ||||
| Intelligent RS‑232/USB | Support Windows®2000/2003/XP/Vista/2008、Windows®7/8、Linux、Unix, and MAC | Support Windows®2000/2003/XP/Vista/2008、Windows®7/8、Linux、Unix, and MAC | Support Windows®2000/2003/XP/Vista/2008、Windows®7/8、Linux、Unix, and MAC | Support Windows®2000/2003/XP/Vista/2008、Windows®7/8、Linux、Unix, and MAC |
| Optional SNMP | Power management supports SNMP management and network management | Power management supports SNMP management and network management | Power management supports SNMP management and network management | Power management supports SNMP management and network management |
Footnotes
Typical Applications
Industrial controls, communication systems, transport, medical facilities and projects with three-phase input and single-phase loads.
Selection and Project Planning
Confirm the exact power rating, input/output phase, voltage, frequency, power factor, battery voltage, runtime, bypass, communications, dimensions, environmental limits and installation method against the selected model and project drawings before ordering.
Frequently Asked Questions
Can this product be configured for a specific project?
Yes. Electrical configuration, battery runtime, communications, bypass, cabinet arrangement and project accessories can be reviewed against the site requirements.
Are all technical ratings shared across the full series?
No. Ratings and functions vary by model and configuration. Use the project-specific technical sheet as the final reference.
Can DAXIN ENERGY support system selection?
Yes. Provide the load list, phase and voltage, required runtime, redundancy target, communication requirements and installation environment.
Request a Project Configuration
Send the load data, single-line diagram, required backup time and site conditions to receive a tailored UPS or battery proposal.
