Description

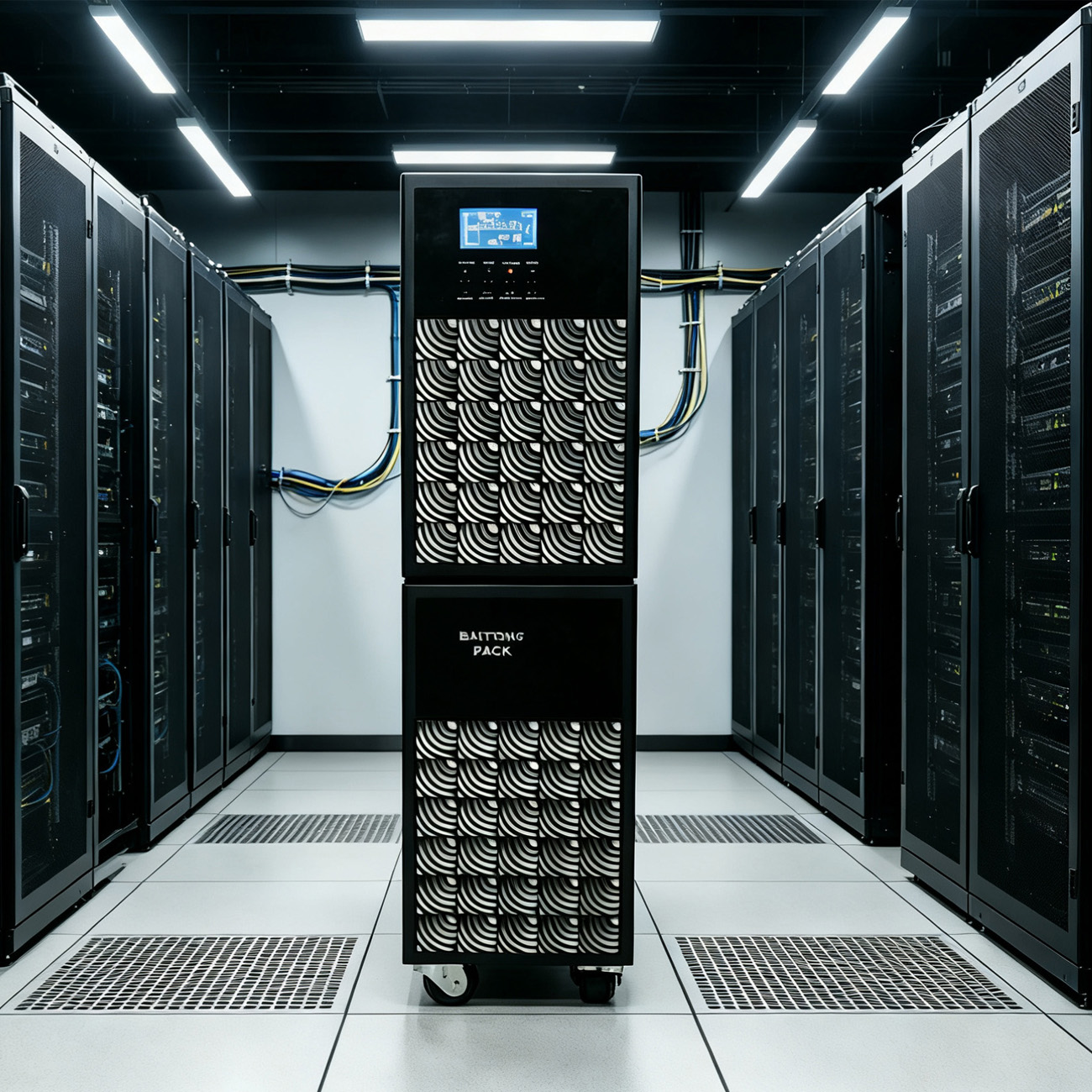

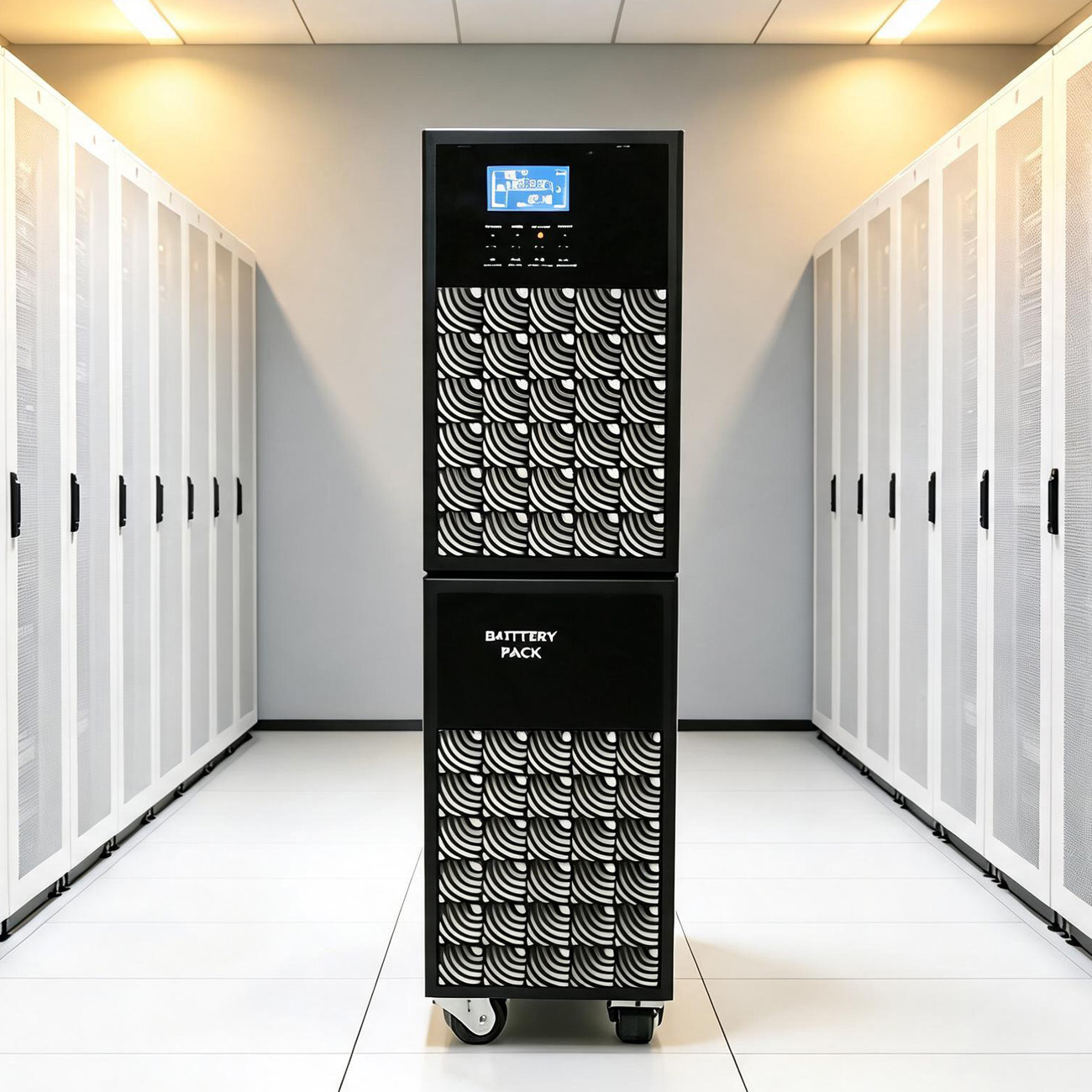

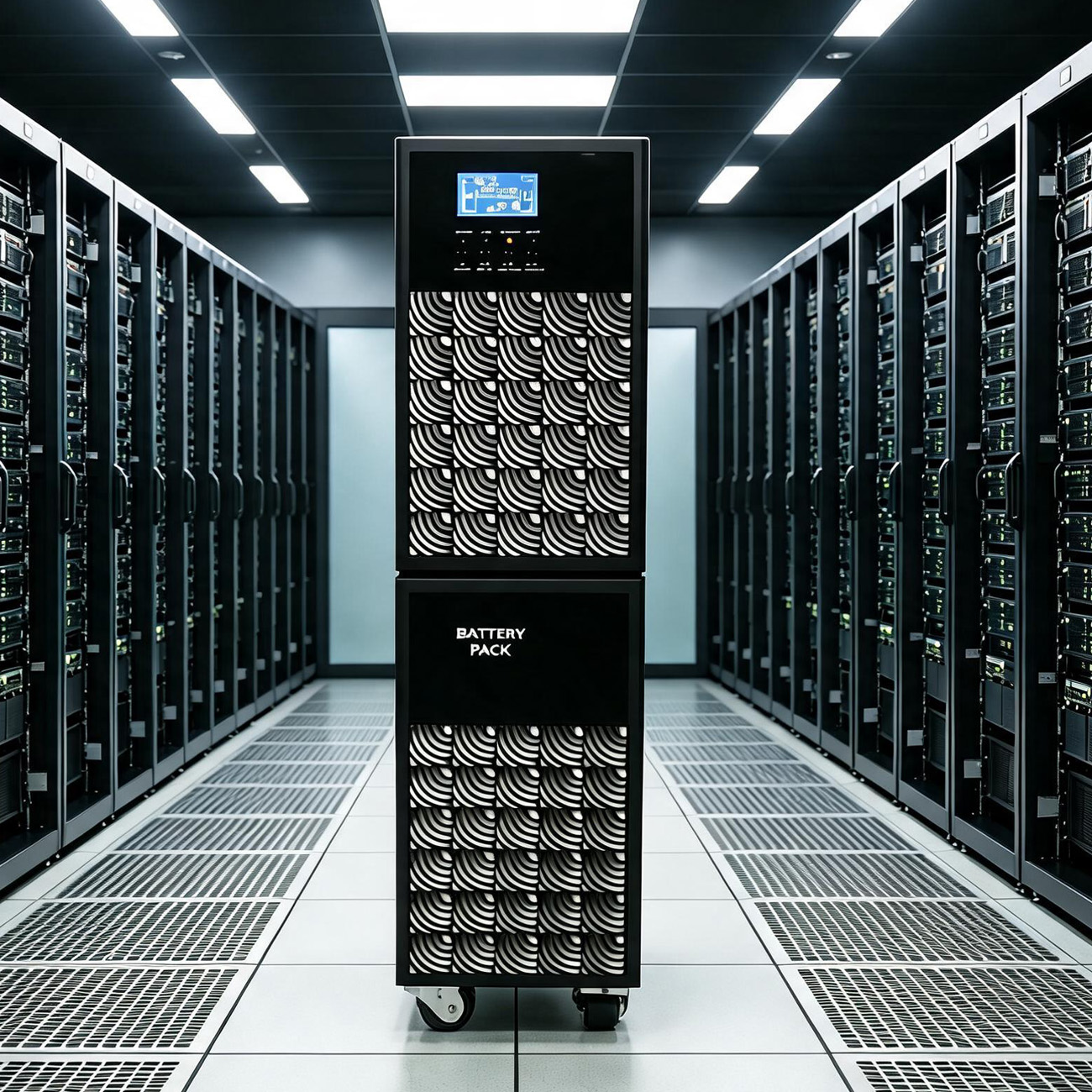

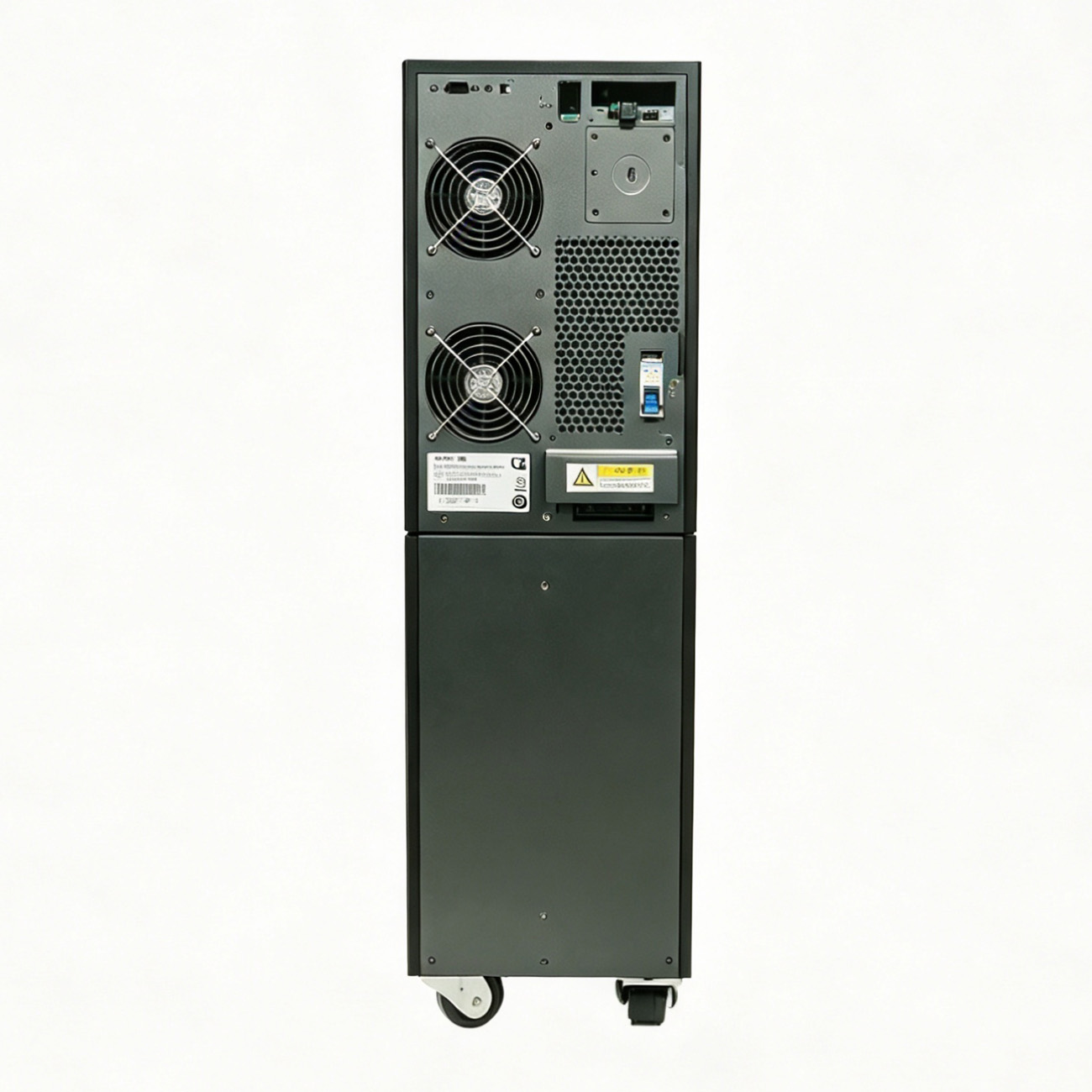

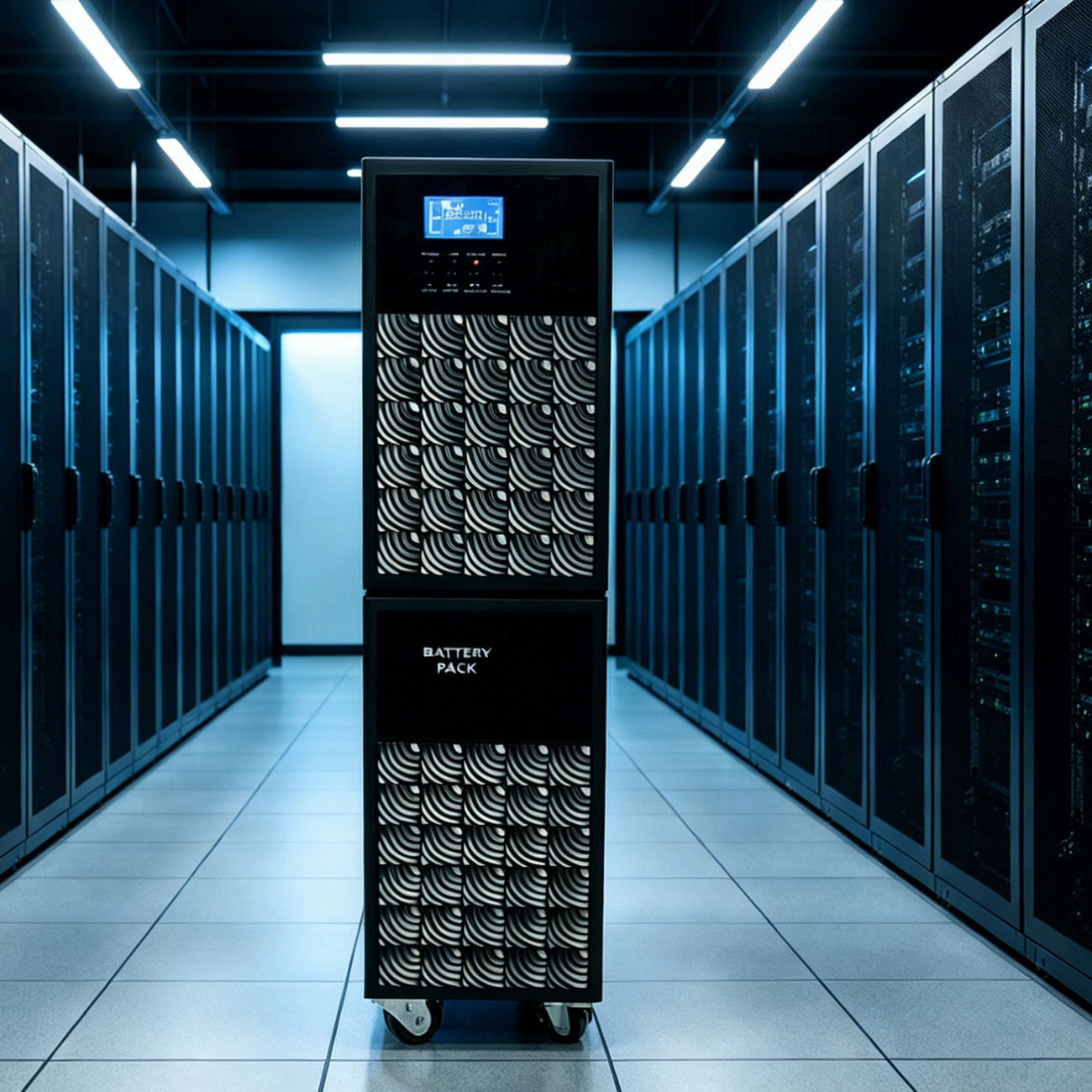

The 11-H 6kVA Online UPS adopts advanced double-conversion technology to deliver stable, clean, and uninterrupted power for critical equipment. With high reliability and efficiency, it is widely used in government, finance, telecommunications, education, transportation, healthcare, and energy sectors, making it an ideal power protection solution for mission-critical applications.

• True double-conversion online technology for zero transfer time
• Microprocessor control for enhanced reliability
• Input Power Factor Correction (PFC)
• Output power factor up to 0.9 (1.0 optional)
• Wide input voltage range (90V–300V)
• High-efficiency frequency conversion mode
• Generator compatible
• Optional SNMP card with USB & RS232 monitoring support
• User-friendly LCD display for real-time status monitoring
• ECO mode for energy saving
• Emergency Power Off (EPO) function
• Advanced DSP digital control technology
• Built-in maintenance bypass (optional)
• Intelligent battery management system
• Optional isolation transformer
• In frequency conversion mode:
  • 1–3kVA models derate to 80% output
  • 6/10kVA models derate to 60% output
• At 208VAC output:
  • 1–3kVA derate to 80%
  • 6/10kVA derate to 90%
• Parallel redundancy is not supported
• 200/208/220/230/240VAC only applies to long backup models
