Is This UPS Right for Your Project?
The DAXIN 1kVA high-frequency online UPS is a compact double-conversion power protection solution for workstations, network devices, medical electronics and other sensitive single-phase loads.
It suits customers who need zero-transfer online operation, a wide mains input window and straightforward monitoring without moving to a larger industrial UPS platform.
Typical Applications
- Workstations and small servers
- Network, security and telecom devices
- Laboratory and medical electronics
- Point-of-sale and financial equipment
What to Confirm Before Ordering
- Connected load in watts and required growth margin
- Required battery runtime and 24V battery arrangement
- Input and output voltage
- Need for ECO mode, generator use or an isolation transformer
Frequently Asked Questions
How should I choose the UPS capacity?
Start with the measured continuous load, startup or peak demand and expected expansion. DAXIN ENERGY can review the load list and recommend a practical operating margin.
How is battery runtime determined?
Runtime depends on load, battery voltage, battery capacity, battery age, temperature and inverter efficiency. Share the required backup duration and normal load for a project calculation.
Can this UPS work with a generator or remote monitoring system?
Generator and monitoring compatibility depends on the selected model and configuration. Confirm generator capacity, frequency stability and the required RS-232, RS-485, USB, Modbus or SNMP interface before ordering.
Request a Project Configuration
Send DAXIN ENERGY the load list, site voltage, required runtime, installation environment, communications and redundancy requirements. The final configuration is subject to the approved technical proposal.
DAXIN High-Frequency UPS Product Video
Watch the product demonstration to review the UPS format, operating interface and application positioning. Final electrical configuration is subject to the approved technical proposal.
1K VA High Frequency Tower UPS Battery Backup Equipment Single Input And Output
What Is the DAXIN 11-H1kVA High-Frequency Online UPS?

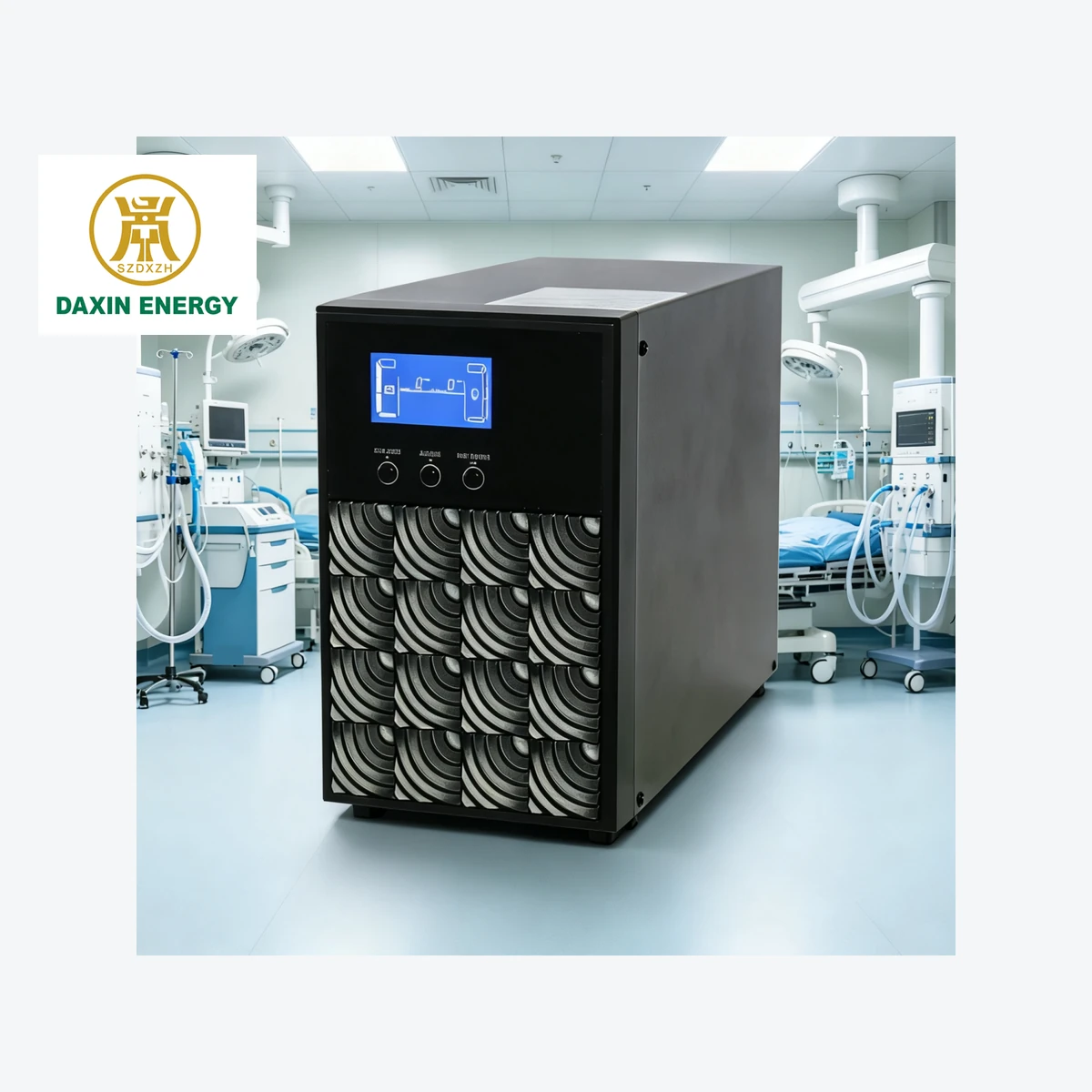

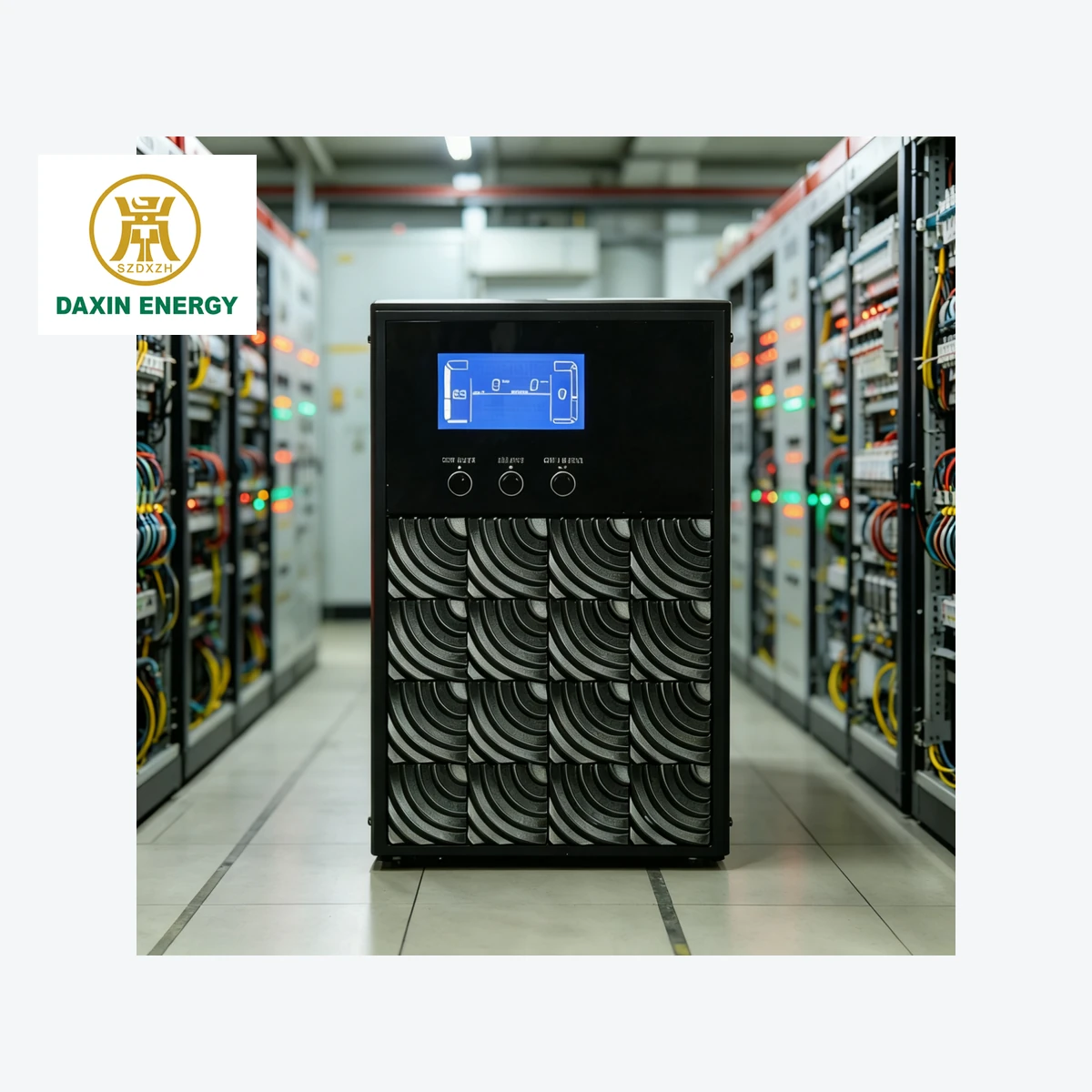

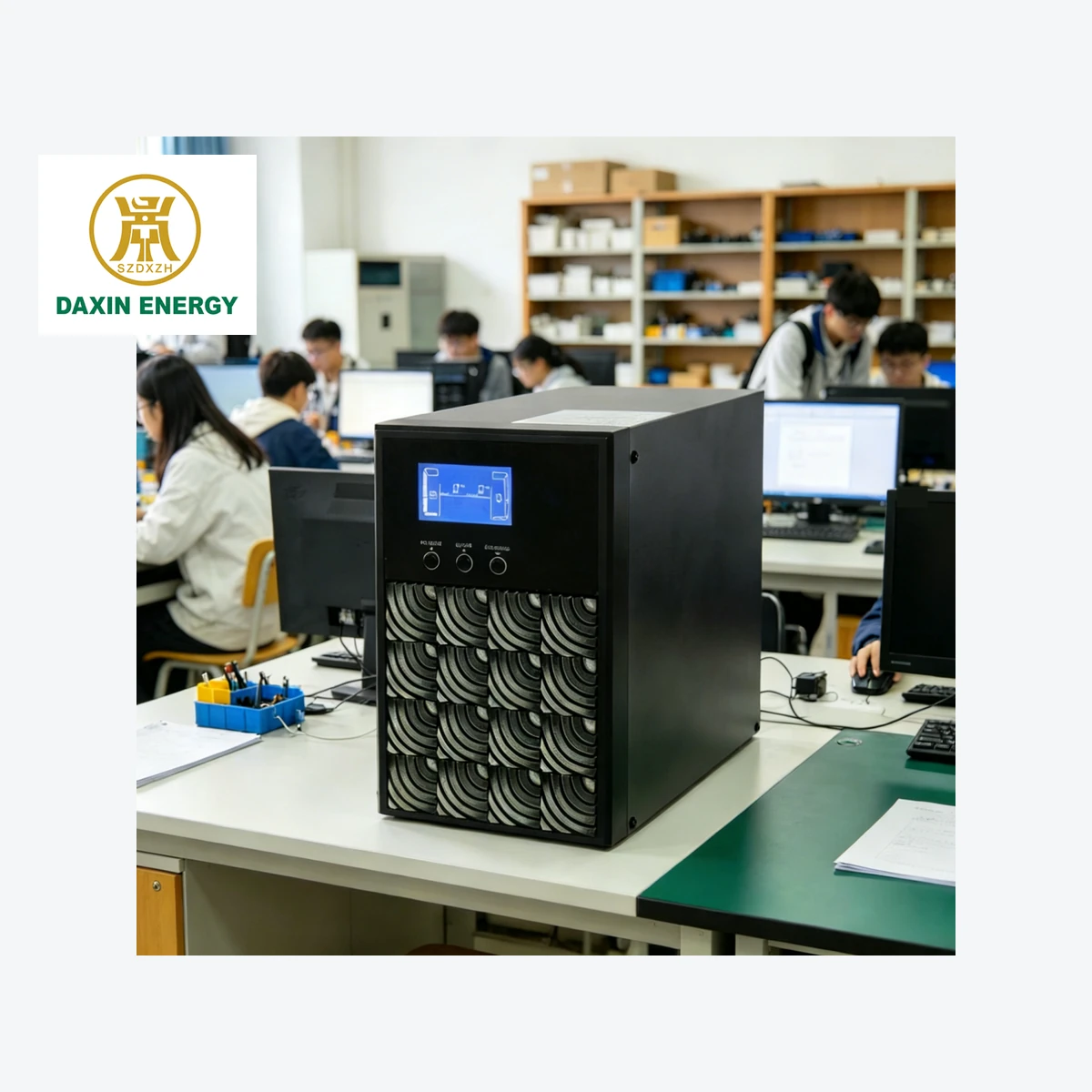

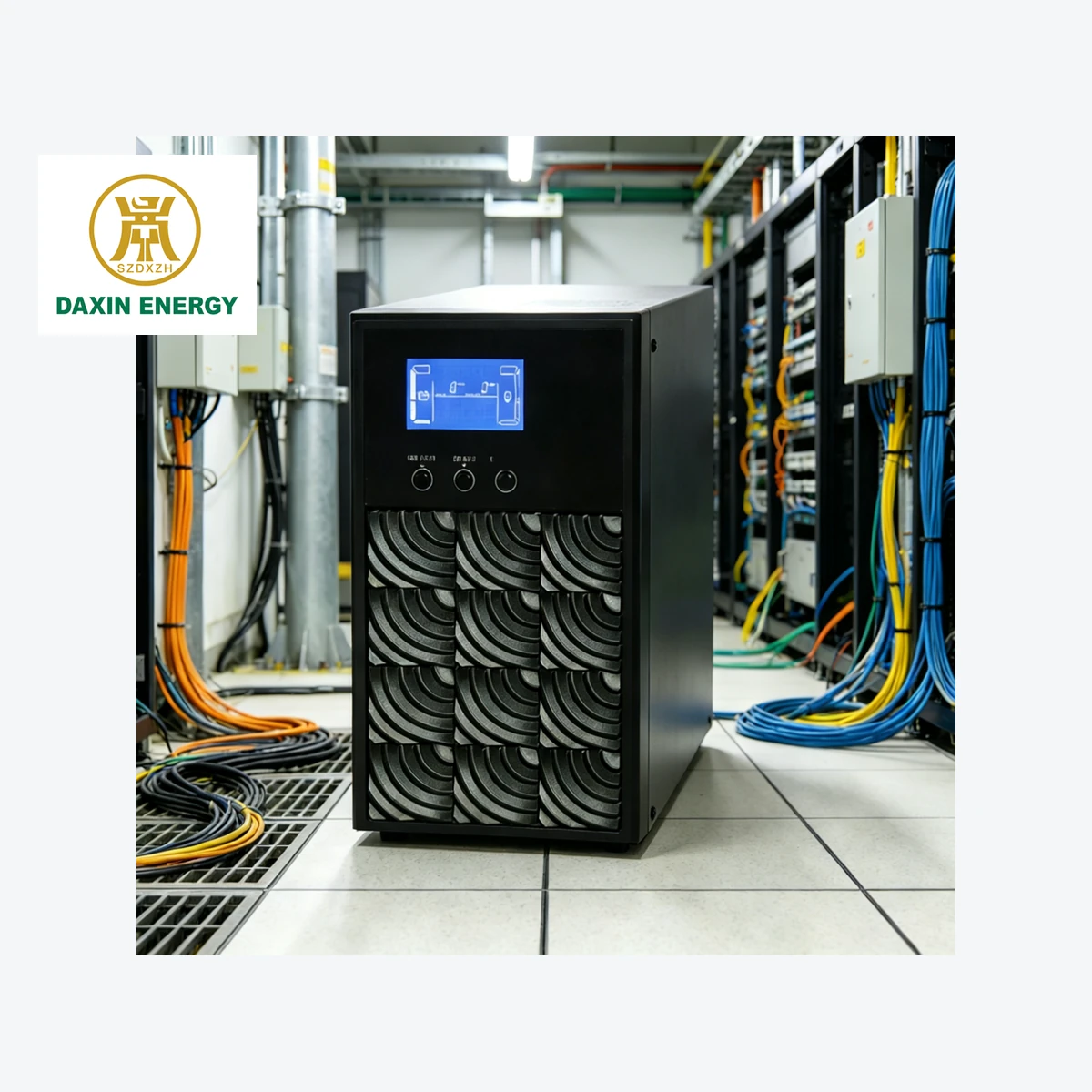

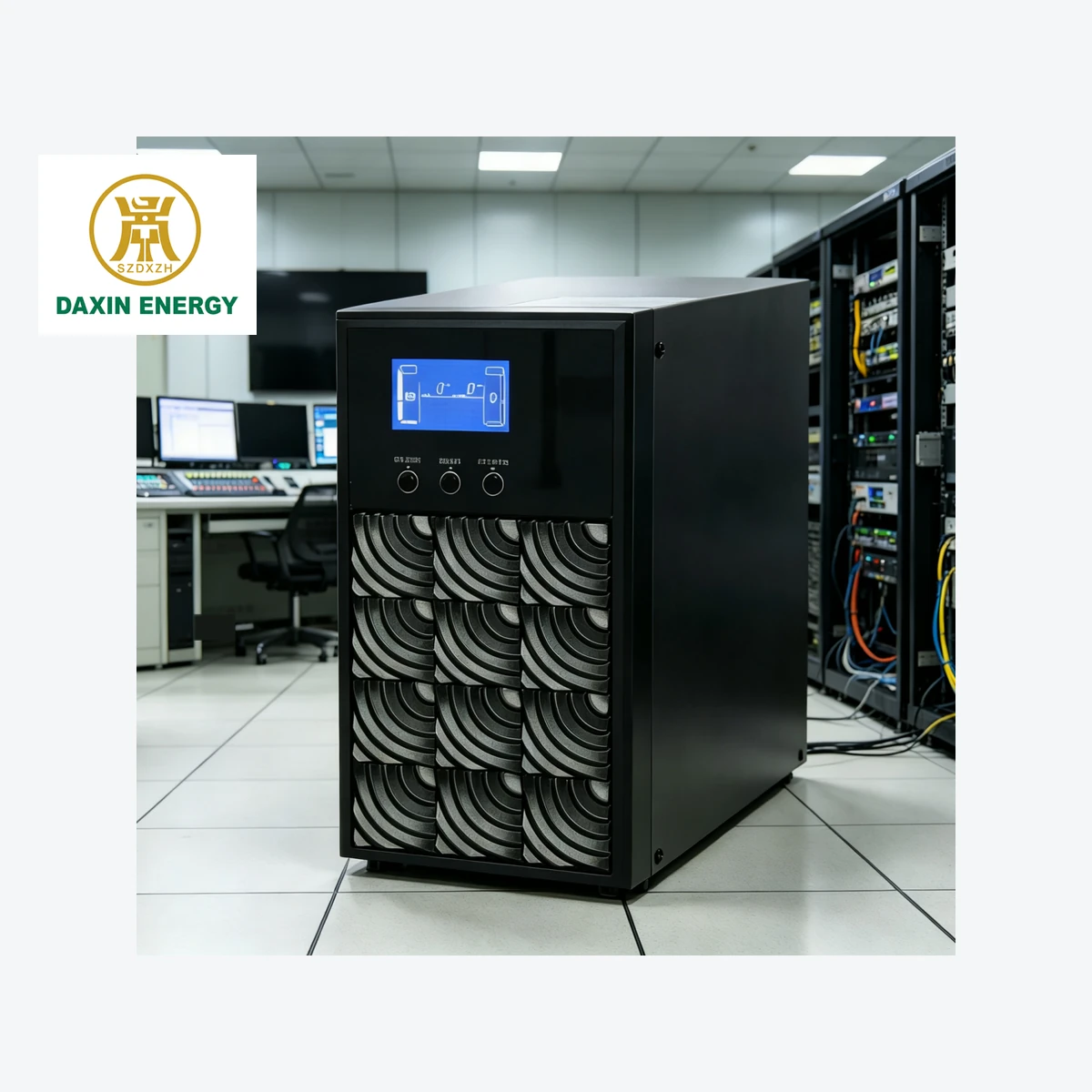

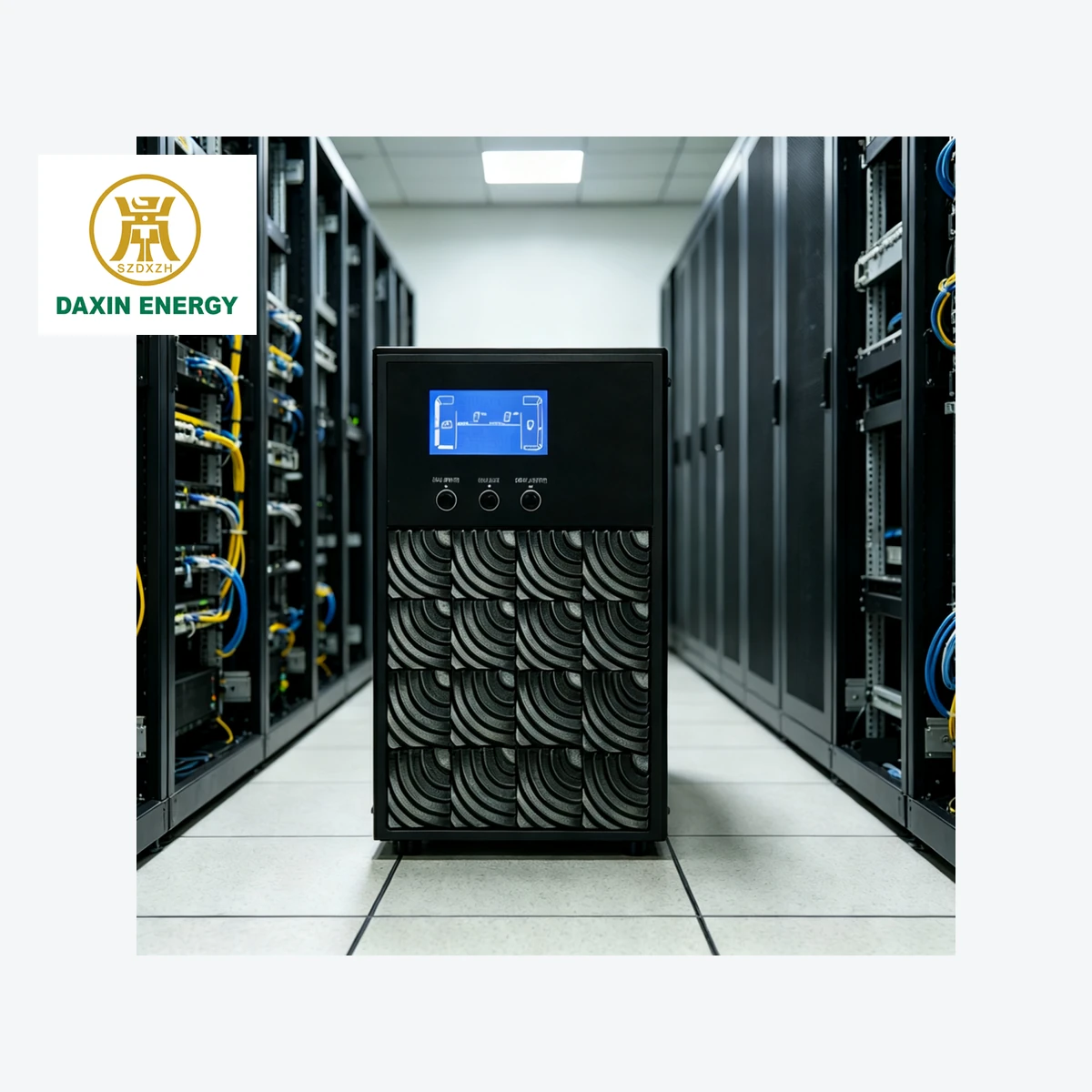

The DAXIN 11-H1kVA is a 1kVA/900W single-phase high-frequency online UPS designed to provide continuous power protection for critical electrical and electronic equipment.
Using true online double-conversion technology, the UPS continuously converts incoming AC power through the DC link and inverter to provide regulated AC output to connected loads. The architecture provides 0ms transfer time from mains operation to battery mode, helping protect critical equipment during power interruptions and unstable grid conditions.
The 11-H1kVA features pure sine-wave output, input power factor correction, a wide operating input range, ECO mode, generator compatibility and intelligent battery charging. Optional SNMP, USB and RS-232 communication support enables local or remote UPS monitoring according to the selected configuration.
Typical applications include telecom and network equipment, IT systems, industrial control equipment, healthcare infrastructure, financial systems, education facilities and other applications requiring reliable backup power.
The 11-H1kVA belongs to the DAXIN 1kVA–10kVA high-frequency online UPS family, with capacity options available according to load and runtime requirements.
Power Capacity: 1kVA
Operating Mode: Single-phase input / Single-phase output, True Online Double-conversion.
Applications:
Widely applied across various sectors including government, finance, telecommunications, education, transportation, meteorology, broadcasting, commerce and taxation, healthcare, energy, and utilities.
Product Features:
True online double-conversion: Ensures seamless power protection.
Microprocessor control: Guarantees high reliability and precision.
Input Power Factor Correction (PFC): Optimizes energy efficiency from the grid.
High Output Power Factor: Up to 0.9 for better load compatibility.
Wide Input Voltage Range (90V – 300V): Ideal for unstable power environments.
Frequency Converter Mode: Highly efficient frequency conversion options.
Generator Compatible: Works effectively with various generator sets.
Advanced Monitoring: Optional SNMP card works seamlessly with USB or RS232 for comprehensive remote management.
User-friendly Display: Simple operation and control via the integrated display for real-time UPS status monitoring.
ECO Mode: Provides high-efficiency operation for energy saving.
Emergency Power Off (EPO): Enhances safety for critical installations.
DSP Technology: This series utilizes advanced Digital Signal Processing; includes a built-in maintenance bypass switch (optional).
Smart Battery Charger Design: Optimized to extend battery life and maximize performance.
Built-in Isolation Transformer (Optional): Provides additional electrical safety and noise suppression.

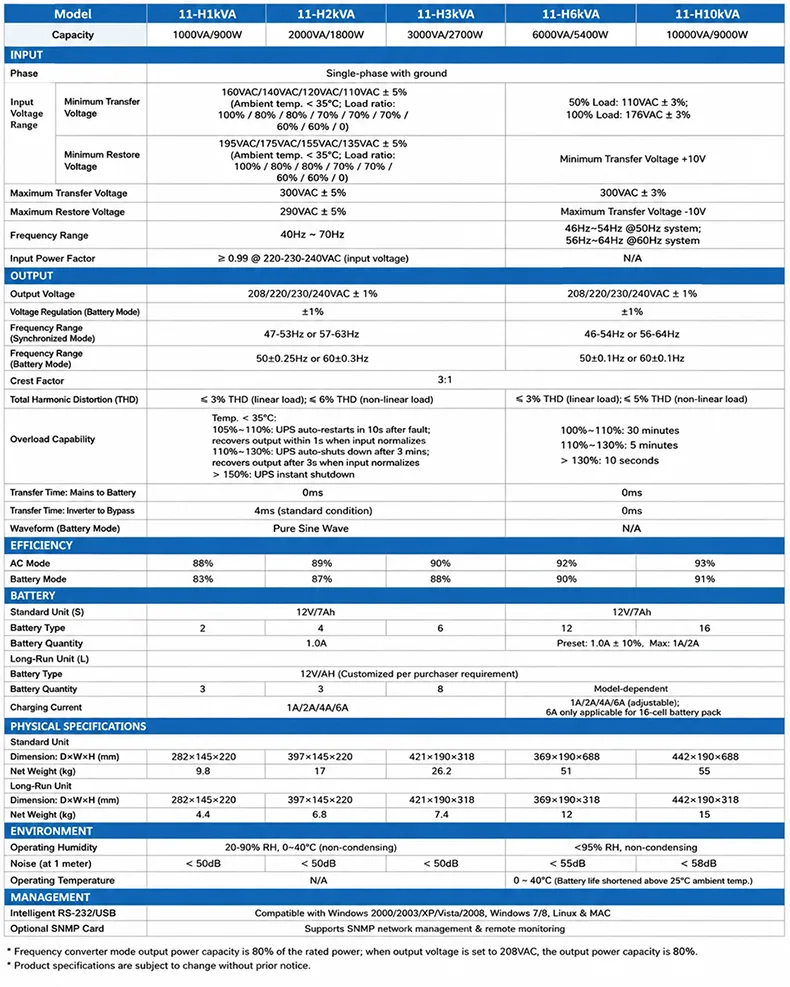

Technical Specifications
Key Features
- True Online Double-Conversion: Provides continuous conditioned power for connected critical loads.
- 0ms Mains-to-Battery Transfer: Online architecture eliminates transfer interruption when switching to battery operation.
- Wide Input Voltage Range: Designed to operate across varying utility conditions according to model and load.
- Input Power Factor Correction: Helps optimize input power characteristics.
- 0.9 Output Power Factor: 1kVA model provides up to 900W rated active power.
- Pure Sine-Wave Output: Suitable for sensitive electronic and critical equipment.
- Generator Compatibility: Can operate with compatible generator-backed power systems.
- ECO Mode: Provides an alternative operating mode where appropriate for the application.
- Intelligent Battery Charging: Battery-management design supports charging and battery operation.
- Remote Monitoring Options: RS-232 and USB communication with optional SNMP network management.
- Emergency Power Off: EPO functionality supports emergency shutdown requirements where configured.
- Optional Isolation Transformer: Available for applications requiring additional electrical isolation according to project configuration.
Typical Applications
- Servers, workstations and network equipment
- Telecom and communication systems
- Industrial automation and control equipment
- Security and surveillance systems
- Healthcare and laboratory equipment
- Financial and banking systems
- Education and research facilities
- Transportation and infrastructure systems
- Utility monitoring and control systems
- Other critical electronic loads requiring online power protection
FAQ:
How Does the 11-H1kVA Online UPS Work?
During normal operation, the online double-conversion architecture converts incoming AC power to DC and then reconstructs regulated AC power through the inverter for the connected load.
If utility power is interrupted or moves outside the supported operating range, the battery continues supplying the DC bus so the inverter can maintain output without a mains-to-battery transfer delay.
When acceptable utility power returns, the UPS resumes normal operation and the charging system restores battery capacity according to the configured charging parameters.Is the DAXIN 11-H1kVA a true online UPS?
Is the DAXIN 11-H1kVA a true online UPS?
Yes. The 11-H1kVA uses true online double-conversion topology to provide continuous conditioned output power to connected loads.
What is the power capacity of the 11-H1kVA UPS?
The 11-H1kVA is rated at 1000VA/900W, providing an output power factor of 0.9.
Does the 1kVA online UPS have zero transfer time?
The specified mains-to-battery transfer time is 0ms because the load is continuously supplied through the online inverter architecture.
Can the UPS work with a generator?
Yes. Generator compatibility is supported, subject to generator output quality, capacity and the final UPS configuration.
Does the UPS support remote monitoring?
Yes. RS-232 and USB communication are available, while optional SNMP network management can support remote UPS monitoring.
Is a long-runtime battery configuration available?
Yes. Standard and long-run configurations are available. Battery capacity and runtime should be selected according to load power, required backup time and project requirements.
For 1-3kVA UPS: Output power capacity will be derated to 80% when the UPS is set to CVCF mode (Constant Voltage Constant Frequency) or when the output voltage is set to 208VAC.
For 6/10kVA UPS: Output power capacity will be derated to 60% when the UPS is set to CVCF mode, and derated to 90% when the output voltage is set to 208VAC.
Parallel Redundancy: The standard models listed above do not support redundant parallel operation.
Voltage Compatibility: Output voltage settings of 200/208/220/230/240VAC are only applicable to long-run models.
