10kVA High-Frequency Online UPS with Wide Mains Input
The DAXIN 10kVA High-Frequency Online UPS with Wide Mains Input provides online double-conversion protection for sensitive equipment that cannot tolerate interruption or unstable utility power.
It is intended for customers who need a clearly sized UPS platform, scalable backup time and practical communication options without unnecessary oversizing.
Product Video
Reference Specifications
| Model Number | H10KL |
|---|---|
| Intelligent Battery Management System | Yes |
| Product Category | High Frequency UPS |
| Efficiency (Battery Mode) | 0.86-0.88 |
| User-Friendly Interface | Yes |
| Output Voltage | 208/220/240VAC |
| True Online Double Conversion | 0ms |
| Net Weight (Standard Machine) | 9.8kg |
| Product Name | Switching Frequency UPS Built-in Isolation Transformer optional and Energy Saving ECO Mode |
| Power Range | 1K VA |
| Efficiency (Commercial power mode) | 0.89 |
| Output power factor | 0.8 |
| Alarm System | Yes |
| Battery Voltage | 24V |
Reference values are based on the supplied configuration. Final ratings and options are confirmed in the approved DAXIN ENERGY technical proposal.
Typical Applications
Data and network rooms; telecom systems; industrial automation; medical, laboratory and commercial critical loads.
What to Confirm Before Ordering
Connected load and growth margin; input/output phase and voltage; required runtime; battery architecture; bypass, generator and SNMP requirements.
Frequently Asked Questions
Can this product be customized?
Yes. DAXIN ENERGY can review electrical, mechanical, battery, cooling and communication options against the project requirements.
What information is needed for selection?
Send the load or equipment list, site conditions, required backup time and installation constraints. Our team will prepare a project-specific configuration.
Request a Project Configuration
Contact DAXIN ENERGY for model selection, drawings, technical confirmation and quotation support.
Is This UPS Right for Your Project?
The DAXIN 10kVA long-runtime online UPS combines online double conversion with an external battery connection for critical single-phase equipment requiring scalable backup time.
Customers can size the battery bank around the required outage duration while retaining stable regulated output and remote-management options.
Typical Applications
- Business servers and storage
- Telecom equipment
- Industrial controllers
- Medical and diagnostic systems
What to Confirm Before Ordering
- Continuous and peak load
- Target backup time
- Battery bank and charging-current design
- Communication, bypass and maintenance requirements
Frequently Asked Questions
How should I choose the UPS capacity?
Start with the measured continuous load, startup or peak demand and expected expansion. DAXIN ENERGY can review the load list and recommend a practical operating margin.
How is battery runtime determined?
Runtime depends on load, battery voltage, battery capacity, battery age, temperature and inverter efficiency. Share the required backup duration and normal load for a project calculation.
Can this UPS work with a generator or remote monitoring system?
Generator and monitoring compatibility depends on the selected model and configuration. Confirm generator capacity, frequency stability and the required RS-232, RS-485, USB, Modbus or SNMP interface before ordering.
Request a Project Configuration
Send DAXIN ENERGY the load list, site voltage, required runtime, installation environment, communications and redundancy requirements. The final configuration is subject to the approved technical proposal.
DAXIN High-Frequency UPS Product Video
Watch the product demonstration to review the UPS format, operating interface and application positioning. Final electrical configuration is subject to the approved technical proposal.

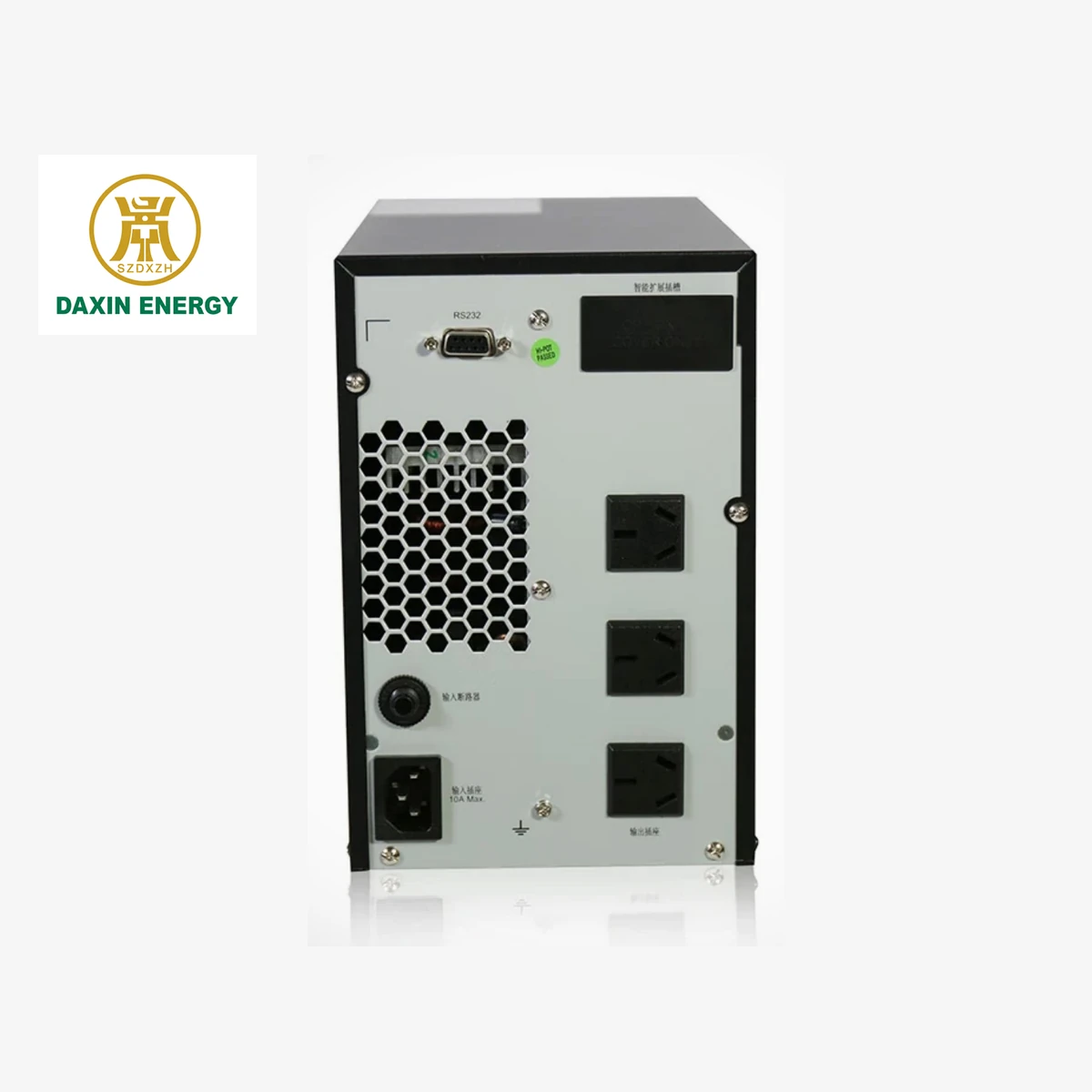

SNMP Intelligent Slot High Frequency Online UPS With Output Jack External Battery Connector
The 11-H 10kVA Long Backup Online UPS adopts advanced double-conversion technology to deliver stable, clean, and uninterrupted power for critical equipment. It supports external battery packs for flexible extended backup time, making it ideal for mission-critical applications requiring high power reliability.
Applications：
Widely used in government, finance, telecommunications, education, transportation, meteorology, broadcasting, taxation, healthcare, and energy industries. Especially suitable for data centers, server systems, and industrial equipment requiring high-load and long-duration power protection.
Features：
- In frequency conversion mode:
- 1–3kVA models derate to 80% output
- 6/10kVA models derate to 60% output
- At 208VAC output:
- 1–3kVA derate to 80%
- 6/10kVA derate to 90%
- Parallel redundancy is not supported
- 200/208/220/230/240VAC applies only to long backup models
| Parameter | 11-H1kVA | 11-H2kVA | 11-H3kVA | 11-H6kVA | 11-H10kVA |
|---|---|---|---|---|---|
| Model | 11-H1kVA | 11-H2kVA | 11-H3kVA | 11-H6kVA | 11-H10kVA |
| Capacity | 1000VA/900W | 2000VA/1800W | 3000VA/2700W | 6000VA/5400W | 10000VA/9000W |
| Input | — | — | — | — | — |
| Phase | multicolumn{3}{c}{Single-phase, grounded} | multicolumn{2}{c}{Single-phase, grounded} | |||
| Voltage Range | |||||
| Lowest Transfer Voltage | multicolumn{3}{c}{160/140/120/110VAC ±5% (Ambient temp <35°C) (Adjustable with load ratio: 100%-80% / 80%-70% / 70%-60% / 60%-0)} | multicolumn{2}{c}{50% load: 110VAC ±3% 100% load: 176VAC ±3%} | |||
| Lowest Restore Voltage | multicolumn{3}{c}{195/175/155/135VAC ±5% (Ambient temp <35°C) (Adjustable with load ratio: 100%-80% / 80%-70% / 70%-60% / 60%-0)} | multicolumn{2}{c}{Lowest transfer voltage +10V} | |||
| Highest Transfer Voltage | multicolumn{3}{c}{300VAC ±5%} | multicolumn{2}{c}{300VAC ±3%} | |||
| Highest Restore Voltage | multicolumn{3}{c}{290VAC ±5%} | multicolumn{2}{c}{Highest transfer voltage -10V} | |||
| Frequency Range | multicolumn{3}{c}{40Hz~70Hz} | multicolumn{2}{c}{46Hz~54Hz @ 50Hz system; 56Hz~64Hz @ 60Hz system} | |||
| Power Factor | multicolumn{3}{c}{≥0.99 @ 220-230VAC (input voltage)} | multicolumn{2}{c}{N/A} | |||
| Output | — | — | — | — | — |
| Output Voltage | multicolumn{5}{c}{208/220/230/240VAC ±1%} | ||||
| Mains Voltage Range (Battery Mode) | multicolumn{5}{c}{±1%} | ||||
| Frequency Range (Synchronization Range) | multicolumn{3}{c}{47-53Hz or 57-63Hz} | multicolumn{2}{c}{46-54Hz or 56-64Hz} | |||
| Frequency Range (Battery Mode) | multicolumn{3}{c}{50±0.25Hz or 60±0.3Hz} | multicolumn{2}{c}{50±0.1Hz or 60±0.1Hz} | |||
| Crest Factor | multicolumn{5}{c}{3:1} | ||||
| Harmonic Distortion | multicolumn{3}{c}{≤3% THD (linear load); ≤6% THD (non-linear load)} | multicolumn{2}{c}{≤3% THD (linear load); ≤5% THD (non-linear load)} | |||
| Overload Capacity | multicolumn{3}{c}{Ambient temp <35°C: 105%-110%: UPS shuts down after 10s in battery mode, transfers to bypass on mains restore. 110%-130%: UPS shuts down after 3s in battery mode, transfers to bypass on mains restore. >150%: UPS shuts down immediately.} | multicolumn{2}{c}{100%-110%: 30 minutes; 110%-130%: 5 minutes; >130%: 10 seconds} | |||
| Transfer Time | |||||
| Mains to Battery | multicolumn{5}{c}{0ms} | ||||
| Inverter to Bypass | multicolumn{3}{c}{4ms (standard conditions)} | multicolumn{2}{c}{0ms} | |||
| Waveform (Battery Mode) | multicolumn{3}{c}{Pure sine wave} | multicolumn{2}{c}{N/A} | |||
| Efficiency | |||||
| Mains Mode | 88% | 89% | 90% | 92% | 93% |
| Battery Mode | 83% | 87% | 88% | 90% | 91% |
| Battery | — | — | — | — | — |
| Standard Model (S) | |||||
| Battery Model | multicolumn{3}{c}{12V/7Ah} | multicolumn{2}{c}{12V/7Ah} | |||
| Quantity | 2 | 4 | 6 | 12 | 16 |
| Charging Current | 1.0A | — | — | multicolumn{2}{c}{Preset: 1.0A ±10%, Max: 1A/2A} | |
| Long Backup Model (L) | |||||
| Battery Model | multicolumn{5}{c}{12V/AH (depends on customer selection)} | ||||
| Quantity | 3 | 6 | 8 | 16 | 16 |
| Charging Current | 1A/2A/4A/6A | 1A/2A/4A/6A | 1A/2A/4A/6A | 1A/2A/4A/6A (adjustable; 6A only for 16-cell batteries) | 1A/2A/4A/6A (adjustable; 6A only for 16-cell batteries) |
| Physical Performance | |||||
| Standard Model | |||||
| Dimensions: D×W×H (mm) | 282×145×220 | 397×145×220 | 421×190×318 | 369×190×688 | 442×190×688 |
| Net Weight (kg) | 9.8 | 17 | 26.2 | 51 | 55 |
| Long Backup Model | |||||
| Dimensions: D×W×H (mm) | 282×145×220 | 397×145×220 | 421×190×318 | 369×190×318 | 442×190×318 |
| Net Weight (kg) | 4.4 | 6.8 | 7.4 | 12 | 15 |
| Operating Environment | — | — | — | — | — |
| Operating Humidity | multicolumn{3}{c}{20-90% RH, 0-40°C (non-condensing)} | multicolumn{2}{c}{<95% RH, non-condensing} | |||
| Noise | <50dB @ 1m | <50dB @ 1m | <50dB @ 1m | <55dB @ 1m | <58dB @ 1m |
| Operating Temperature | multicolumn{3}{c}{N/A} | multicolumn{2}{c}{0~40°C (battery life shortened above 25°C)} | |||
| Control & Management | — | — | — | — | — |
| Smart RS-232/USB | multicolumn{5}{c}{Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8, Linux and MAC} | ||||
| Optional SNMP Card | multicolumn{5}{c}{Supports SNMP and network management} |
Footnotes
- Output power is reduced to 80% in frequency conversion mode, or when the output voltage is set to 208VAC.
- **Specifications are subject to change without prior notice.
