Integrated UPS Monitoring System | DAXIN ENERGY

The DAXIN Integrated UPS Monitoring System is a centralized infrastructure monitoring solution that combines UPS monitoring, battery monitoring, environmental monitoring, alarm management and remote supervision in a unified platform.
Integrated Monitoring System

Who Is the DAXIN Integrated UPS Monitoring System For?

The DAXIN Integrated UPS Monitoring System is designed for data center operators, telecom infrastructure providers, industrial facilities, system integrators and organizations that require centralized monitoring of UPS systems, battery banks, power equipment and equipment-room environmental conditions.

With the rapid development of modern technologies, intelligent computer rooms and data centers have become increasingly important across a wide range of industries. Driven by the rapid growth of the digital economy, cloud computing, 5G, big data, and other information technologies, more organizations, universities, enterprises, and institutions are building intelligent infrastructure to support research, operations, management, and digital services.

The stable and reliable operation of computing and network equipment depends heavily on controlled environmental conditions within equipment rooms and data centers. Abnormal temperature or humidity, water leakage, smoke, fire, power failures, or other environmental and infrastructure issues can affect equipment reliability and operational safety.

Therefore, computer-room and data-center infrastructure is a complex multidisciplinary engineering system involving power supply, environmental monitoring, security, communications, battery systems, and centralized management. Integrated monitoring systems and their associated devices are becoming increasingly important for maintaining reliable and efficient infrastructure operations.

Main Functions of the Integrated Monitoring System

1. Power Equipment Monitoring
Real-time monitoring of UPS systems, power distribution cabinets, battery banks, and other power equipment. The system can monitor operating parameters such as voltage, current, power, and load rate to help ensure reliable operation of the power infrastructure.

2. Environmental Monitoring
Real-time monitoring of temperature, humidity, air quality, and other environmental parameters to maintain suitable operating conditions for critical equipment. The system can also monitor water leakage, smoke, fire, and other potential environmental hazards.

3. Security Monitoring
Integration with access control, video surveillance, and other security systems enables monitoring of personnel access, unauthorized entry, and abnormal activities within equipment rooms and data centers.

4. Alarm and Notification Management
When an abnormal condition is detected, the system can notify designated personnel through SMS, email, audible and visual alarms, and other configured notification methods. Multi-level alarm management can be implemented according to the severity and priority of different events.

5. Data Analysis and Reporting
Historical operating data can be collected, analyzed, and presented through energy-consumption reports, equipment operating reports, trend analysis, and other management tools, helping operators evaluate and optimize infrastructure performance.

6. Remote Monitoring and Control
The system supports remote monitoring and management over the network. Authorized administrators can view equipment-room conditions and perform supported remote operations, helping enable 24/7 centralized and unattended infrastructure management.

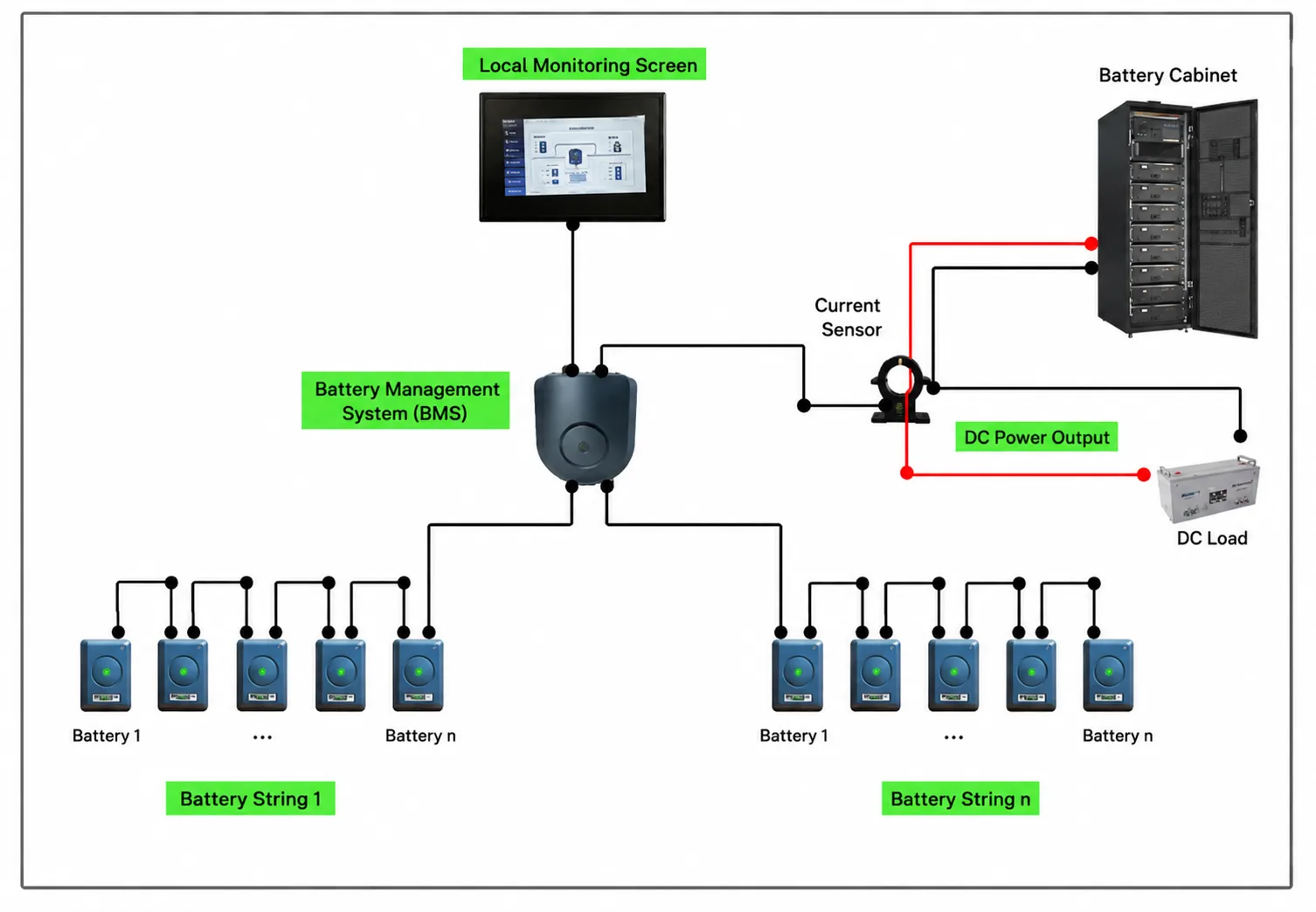

7. Battery Management
Real-time battery status monitoring helps identify potential abnormalities and supports preventive maintenance, contributing to improved battery reliability and service life.

8. Centralized Management
An integrated management platform provides intelligent monitoring and maintenance of AC power systems and associated infrastructure, simplifying maintenance processes and improving overall equipment management efficiency.

Integrated Monitoring System Technical Highlights

Các tính năng chính

1. Industrial-Grade ARM Architecture
Built on an ARM architecture with an industrial-grade domestic chipset designed for stable and reliable operation.

2. Android and iOS Mobile App Support
The integrated monitoring platform supports mobile applications for real-time equipment status viewing and historical data access on both Android and iOS devices.

3. Signal Protection
All signal interfaces incorporate protection against electrostatic discharge (ESD), surge events, and electrical fast transient/burst (EFT) interference.

4. Store-and-Forward Data Transmission
When the network connection or central monitoring platform becomes unavailable, monitoring data can be stored locally. Once communication is restored, the locally stored data can be synchronized automatically with the monitoring platform.

5. Embedded Architecture with Independent Watchdog
The embedded system architecture incorporates an independent watchdog mechanism to improve system stability and continuous operation.

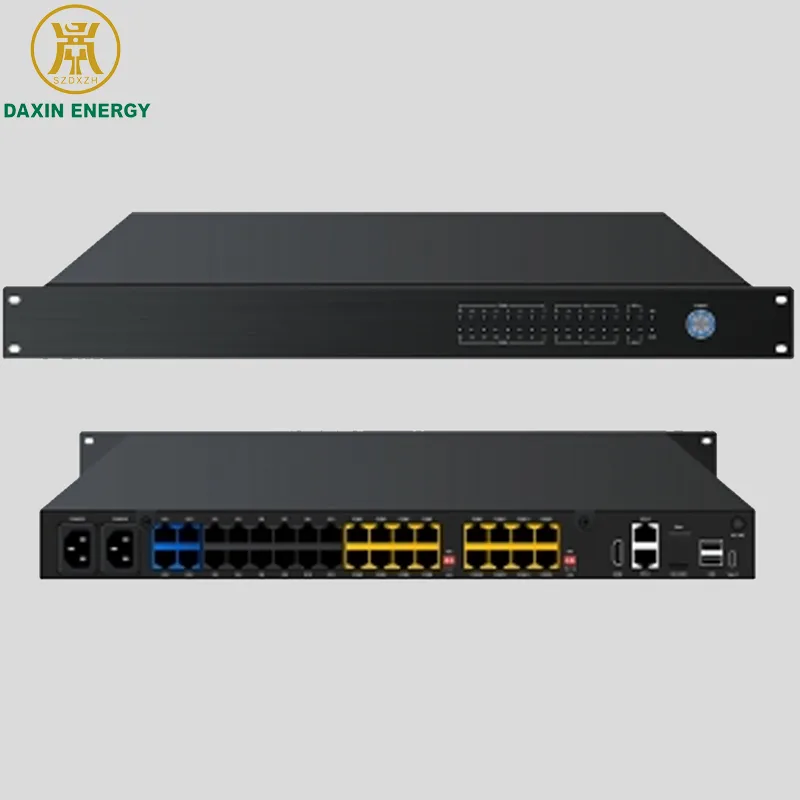

6. Rich Communication and I/O Interfaces
Provides extensive interfaces, including:

• 16 × RS485 ports
• 12 × DI (Digital Input) ports
• 4 × DO (Digital Output) ports
• 2 × Ethernet ports
• 2 × power interfaces

7. Automatic NTP Time Synchronization
The integrated monitoring platform supports NTP-based automatic time synchronization and correction.

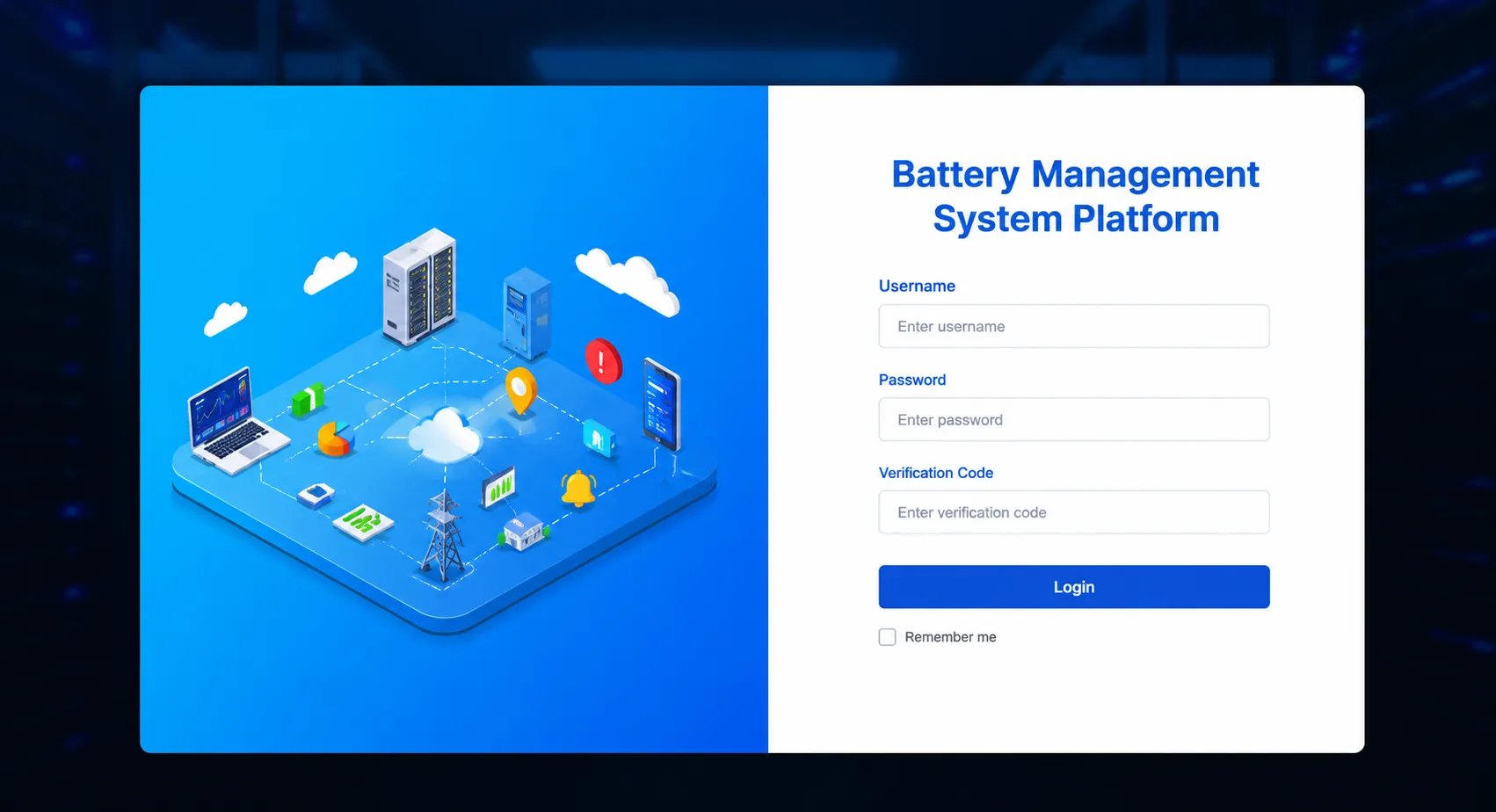

8. Web-Based Management
Users can access the management interface through a web browser by entering the device IP address, simplifying system configuration, monitoring, and maintenance.

9. Linux Operating System and 1U Rack-Mount Design
Pre-installed with a Linux operating system and supports up to 12 simultaneous client connections. The hardware is designed for standard 1U rack installation.

10. SMS Interaction, Fire-System Integration, and Third-Party Platform Connectivity
Supports SMS interaction, fire alarm system integration, and connectivity with third-party management platforms for reliable centralized operation.

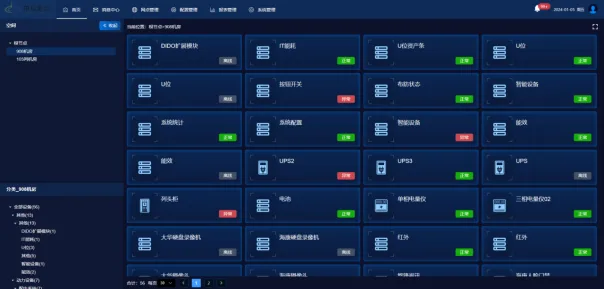

11. 2.5D Equipment-Room Visualization
Supports embedded 2.5D visualization with static equipment-room layouts and monitoring points, providing operators with a more intuitive view of infrastructure status.

12. WeChat Cloud Alerts and Remote Cloud Management
Supports WeChat-based cloud alarm notifications and remote cloud-platform management, enabling authorized personnel to monitor equipment-room conditions and system health from virtually anywhere.

13. Unified UPS, Battery, and Environmental Monitoring
UPS systems, battery banks, and power/environment monitoring systems can be managed and commissioned through a unified DAXIN solution, providing improved system integration and compatibility.
