What Is the DAXIN 48V 200Ah LiFePO4 Battery?

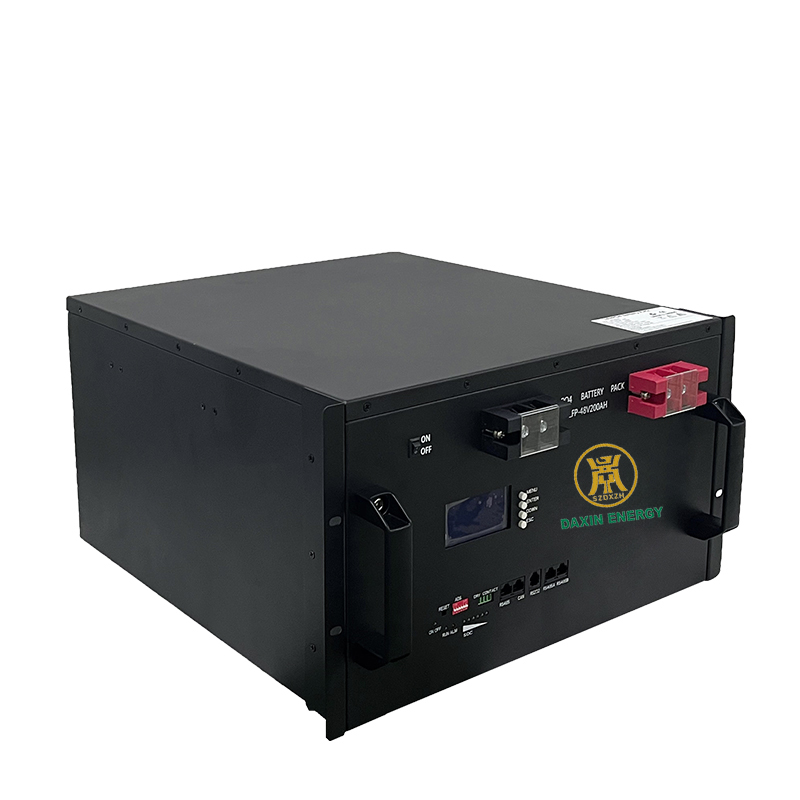

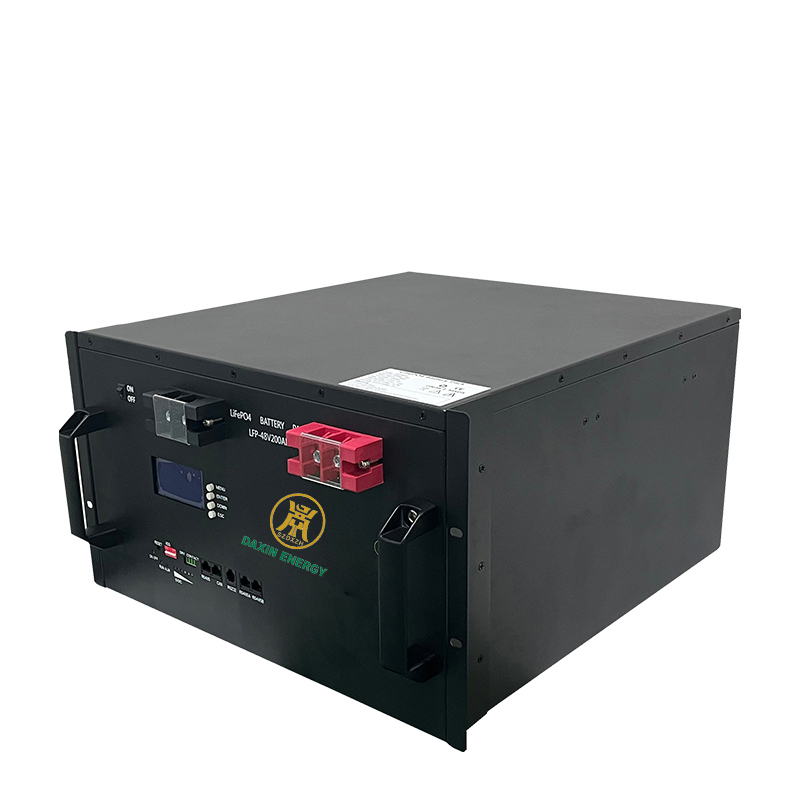

The DAXIN 48V 200Ah LiFePO4 battery pack provides approximately 9.6kWh of nominal energy for residential solar energy storage and backup power systems. It combines lithium iron phosphate cells, a 100A battery management system, a durable metal enclosure, an LCD display and multiple communication interfaces in one integrated battery pack.
The battery supports CAN, RS485 and RS232 communication for compatible inverters and energy management systems. Cell and communication options can be reviewed according to the project requirements, inverter model and approved technical configuration.
ประโยชน์หลัก
- 9.6kWh nominal energy: The 48V 200Ah configuration provides approximately 9.6kWh of nominal battery storage.
- LiFePO4 battery chemistry: Designed for stationary energy storage applications requiring cycle performance and thermal stability.
- Integrated 100A BMS: Supports charge-discharge management and battery protection according to the confirmed configuration.

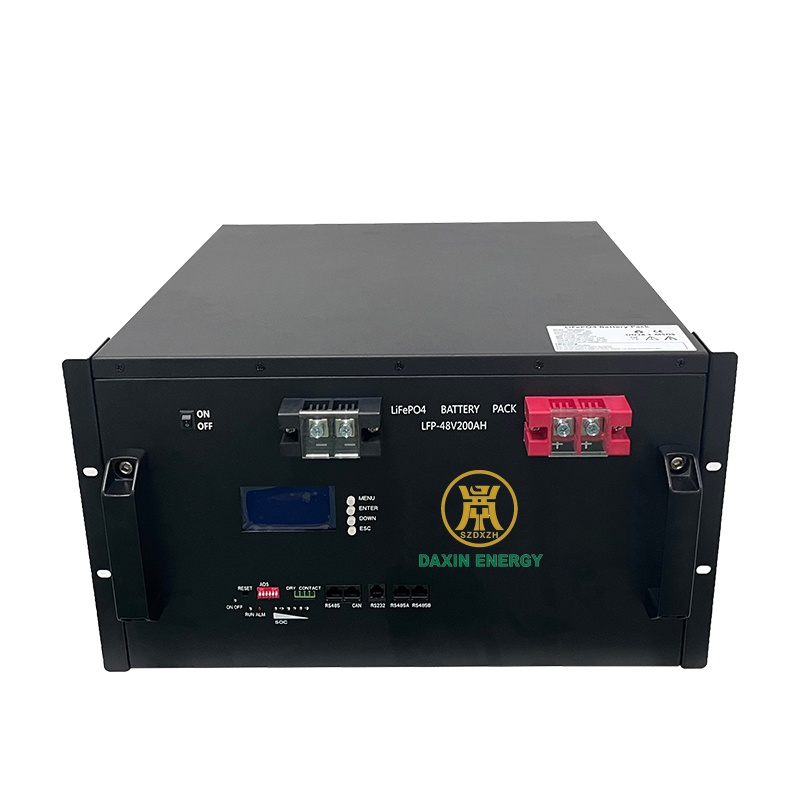

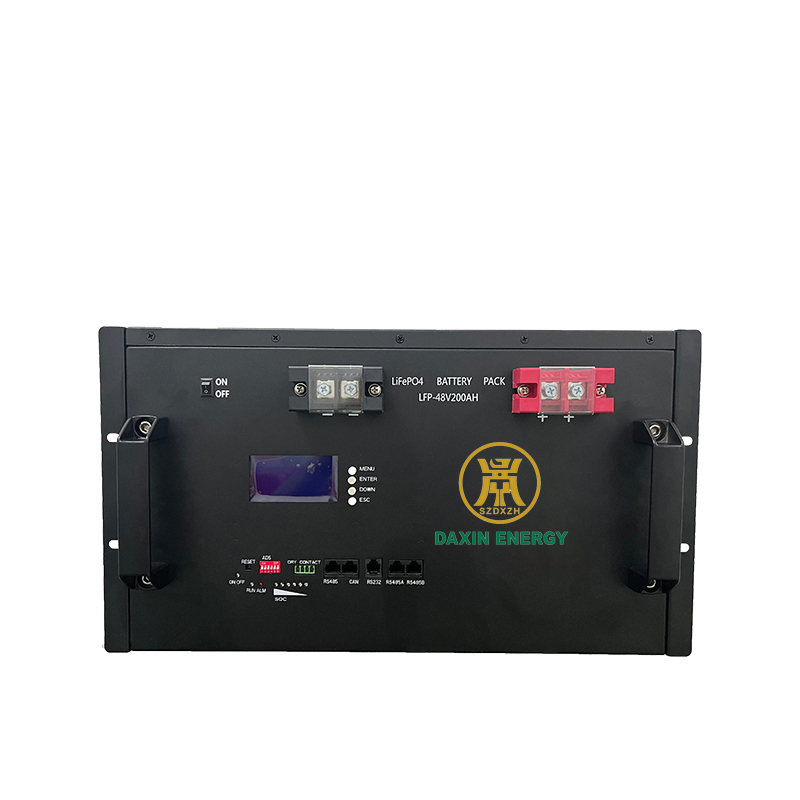

- Multiple communication interfaces: CAN, RS485 and RS232 support integration with compatible inverters and monitoring systems.
- LCD monitoring: Provides local access to battery information according to the selected system configuration.
- Durable metal enclosure: Protects internal components and supports residential energy-storage installation.
- การสนับสนุน OEM และ ODM: Voltage, capacity, cells, communication, enclosure and branding options can be reviewed for qualified projects.

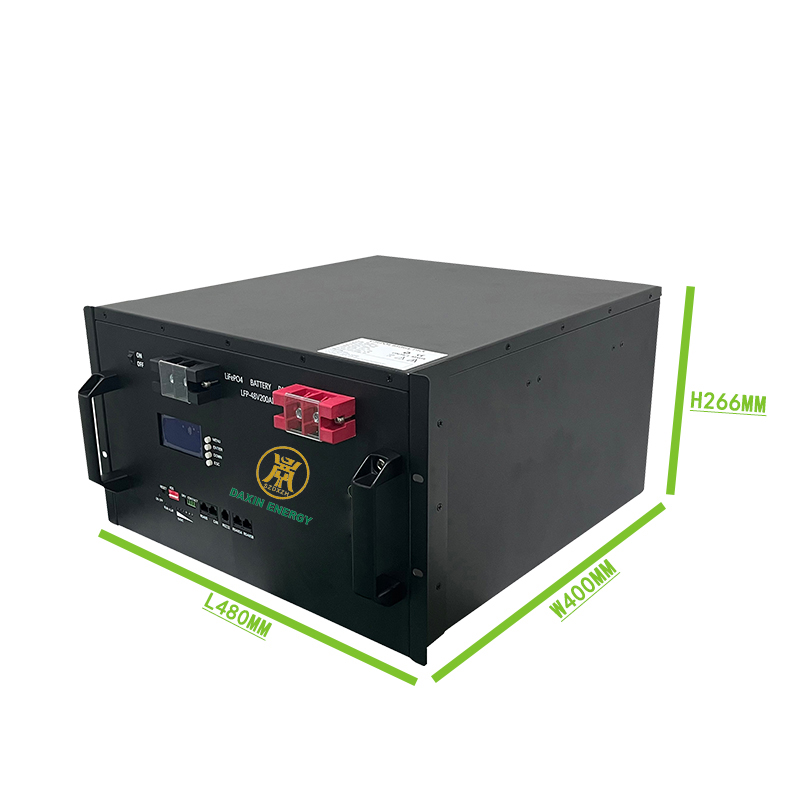

Dimensions of the DAXIN 48V 200Ah LiFePO4 battery pack.

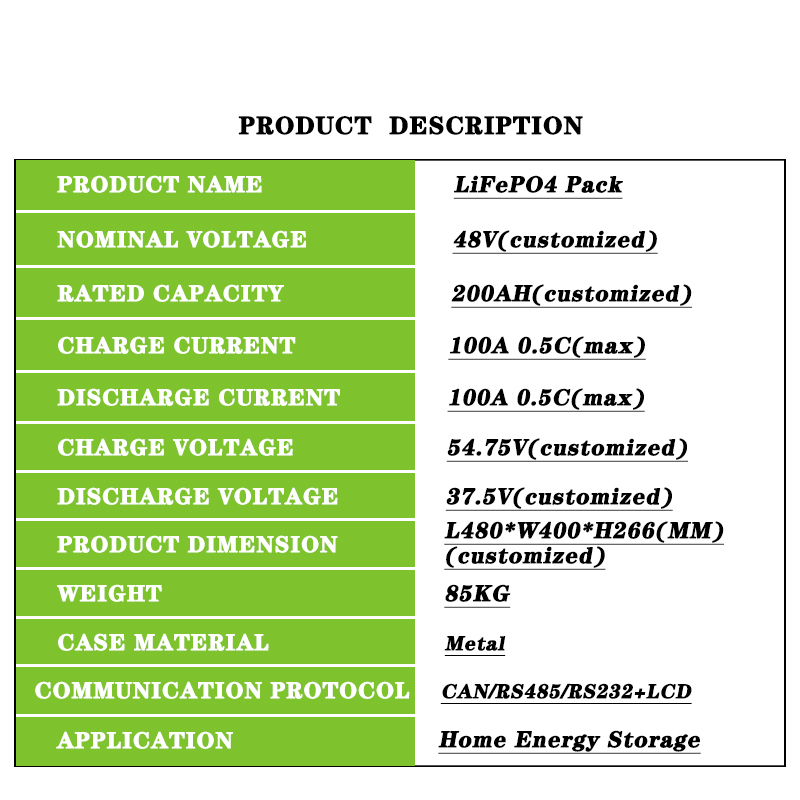

ข้อมูลทางเทคนิค
| แบรนด์ | DAXIN ENERGY |
|---|---|
| Product name | LiFePO4 battery pack |
| แบบ | 48V 200Ah |
| Nominal voltage | 48V |
| Rated capacity | 200Ah |
| Nominal energy | 9.6kWh |
| Maximum BMS charge current | 100A / 0.5C |
| Maximum BMS discharge current | 100A / 0.5C |
| Charge cut-off voltage | 54.75V |
| Discharge cut-off voltage | 37.5V |
| ขนาด | 480 × 400 × 266mm |
| Net weight | 85kg |
| Enclosure material | โลหะ |
| Communication interfaces | CAN, RS485 and RS232 |
| Display | LCD |

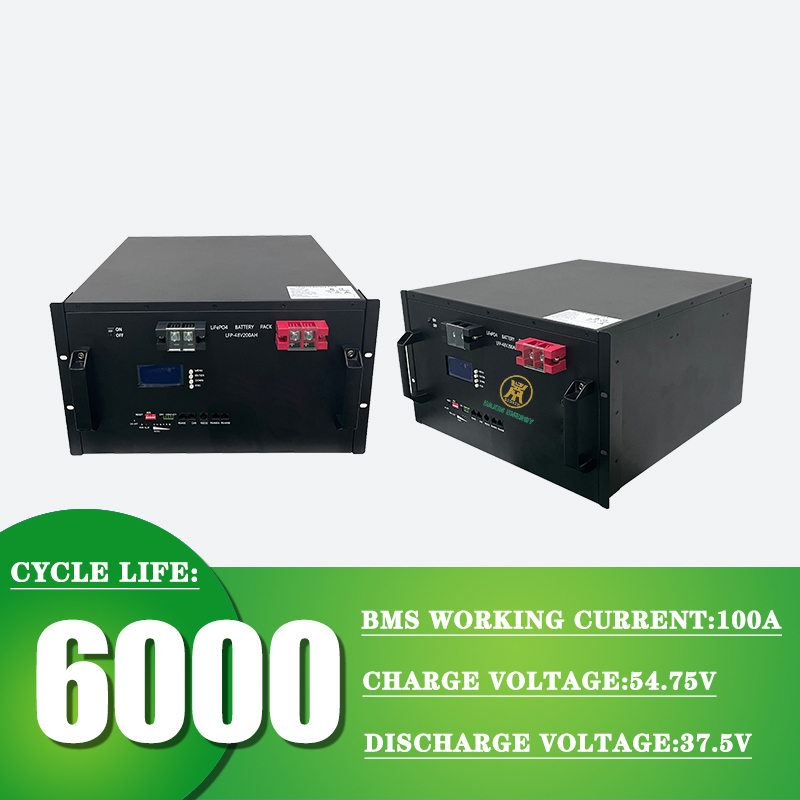

| Referenced cycle life | Up to 6000 cycles under specified test conditions |
| การรับประกัน | 5 years, subject to confirmed warranty terms |
| Cell options | CATL, BYD or EVE options subject to project availability and approval |
| Primary application | Home solar energy storage and backup power |
| การปรับแต่ง | มีตัวเลือก OEM และ ODM ให้เลือก |
The specifications above describe the referenced configuration. Final voltage, usable energy, cell brand, BMS settings, communication compatibility, cycle life and warranty conditions must be confirmed in the approved DAXIN project data sheet before ordering.

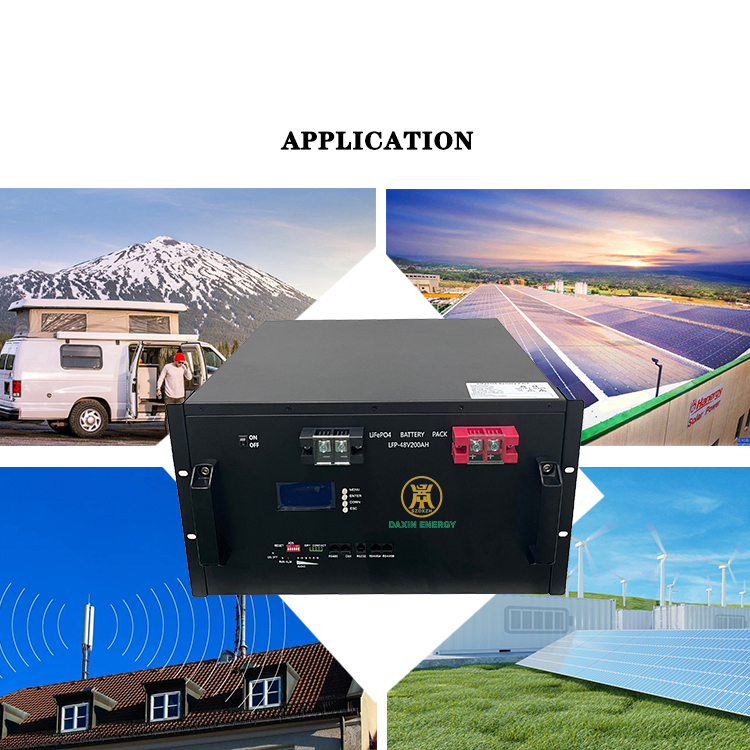

การใช้งานทั่วไป
The DAXIN 48V 200Ah LiFePO4 battery can be evaluated for:
- Residential solar energy storage
- Household backup power
- Solar self-consumption systems
- Compatible off-grid energy systems
- Emergency power during grid interruptions
- Compatible 48V inverter and energy-storage systems
Inverter and System Compatibility
Before connecting the battery to an inverter, charger or energy management system, verify the operating-voltage window, maximum charge and discharge current, communication protocol, cable size, DC protection and system grounding.
CAN, RS485 or RS232 communication does not automatically guarantee compatibility with every inverter. Please provide the inverter brand, model and protocol documentation to DAXIN ENERGY for technical review.
Information Required for Battery Selection
To receive a project-specific battery recommendation, please provide:
- Project country and installation location
- Required system voltage
- Daily energy consumption
- Required backup time
- Maximum continuous and peak load
- Inverter or charger brand and model
- Required communication protocol
- Indoor or protected installation environment
- Required quantity and delivery schedule
- Applicable certification requirements
คำถามที่มักถูกถาม
How much energy does the 48V 200Ah battery store?
The stated 48V 200Ah configuration provides approximately 9.6kWh of nominal energy. Actual usable energy depends on the BMS settings, depth of discharge, inverter efficiency, temperature and operating conditions.
Can this battery be used with a solar inverter?
It can be integrated with a compatible 48V solar or hybrid inverter. The inverter voltage range, charging parameters, maximum current and communication protocol must be confirmed before connection.
Which communication interfaces are available?
The referenced configuration supports CAN, RS485 and RS232 communication. Final compatibility depends on the selected BMS firmware and inverter protocol.
What is the maximum charge and discharge current?
The referenced BMS supports a maximum charge current of 100A and a maximum discharge current of 100A. Confirm continuous and peak-current requirements before ordering.
What does the 6000-cycle rating mean?
Cycle life depends on depth of discharge, charge-discharge rate, temperature and test conditions. The final cycle-life commitment must follow the approved product data sheet and warranty terms.
Can the cell brand be selected?
CATL, BYD or EVE cell options may be available depending on the project, production schedule and approved configuration. The final cell manufacturer must be confirmed in the quotation and technical data sheet.
Can the battery specifications be customized?
OEM and ODM options are available for qualified projects. Voltage, capacity, BMS settings, communication, enclosure, display and branding can be reviewed according to the application.
Request a Project-Specific Configuration
Need a 48V 200Ah LiFePO4 battery for a residential solar or backup power project?
Contact DAXIN ENERGY with your project country, inverter model, required backup time, maximum load, communication protocol and order quantity. Our team will review the requirements and recommend a compatible battery configuration.
