What Is the DAXIN 6-GFM-120 12V 120Ah AGM VRLA Battery?
The DAXIN 6-GFM-120 is a 12V 120Ah AGM VRLA battery designed for UPS systems, telecom equipment, emergency power, security systems and other standby-power applications.
It uses AGM separators and lead-calcium alloy plates in a sealed battery enclosure, providing low self-discharge and practical low-maintenance operation for critical backup-power installations.
A quantidade de baterias, a configuração em série/paralelo, as configurações de carregamento e a capacidade necessária devem ser selecionadas de acordo com a tensão do barramento CC do no-break, a carga conectada e o tempo de autonomia necessário.
Principais recursos
- 12V 120Ah Capacity: Designed for UPS and standby-power applications requiring reliable battery backup.
- Tecnologia AGM VRLA: Utiliza separadores AGM de alta qualidade e placas de liga de chumbo-cálcio.
- Sealed Construction: Leak-resistant battery construction supports practical installation in UPS and backup-power systems.
- Baixa autodescarga: Ajuda a preservar a capacidade disponível da bateria durante o armazenamento em modo de espera.
- High Discharge Capability: The supplied specification lists a maximum discharge current of 1440A for 5 seconds.
- Wide Application Range: Suitable for UPS, telecom, emergency lighting, security and other standby-power applications.
DAXIN 6-GFM-120 12V 120Ah Battery Specifications
| Parâmetro | Especificações |
|---|---|
| Modelo | 6-GFM-120 |
| Tipo de bateria | Bateria VRLA AGM |
| Tensão nominal | 12 V |
| Capacidade nominal | 120Ah |
| Peso aproximado | 32.5kg ±3% |
| Taxa de 20 horas | 125Ah @ 10.5V |
| Taxa por 10 horas | 120Ah @ 10.5V |
| Taxa por 5 horas | 106.78Ah @ 10.5V |
| Tarifa por hora | 72Ah @ 9.6V |
| Comprimento | 407mm |
| Largura | 174mm |
| Altura | 208mm |
| Altura total | 233mm |
| Max. Discharge Current | 1440A (5s) |
| Resistência interna | 4.2mΩ at 25°C, fully charged |
| Capacity @ 40°C | 102% |
| Capacidade a 25 °C | 100% |
| Capacidade a 0 °C | 85% |
| Capacidade a -15 °C | 65% |
| Remaining Capacity after 1 Month | 98% |
| Remaining Capacity after 3 Months | 94% |
| Remaining Capacity after 6 Months | 85% |
| Remaining Capacity after 12 Months | 74% |
Visões do produto e referência técnica

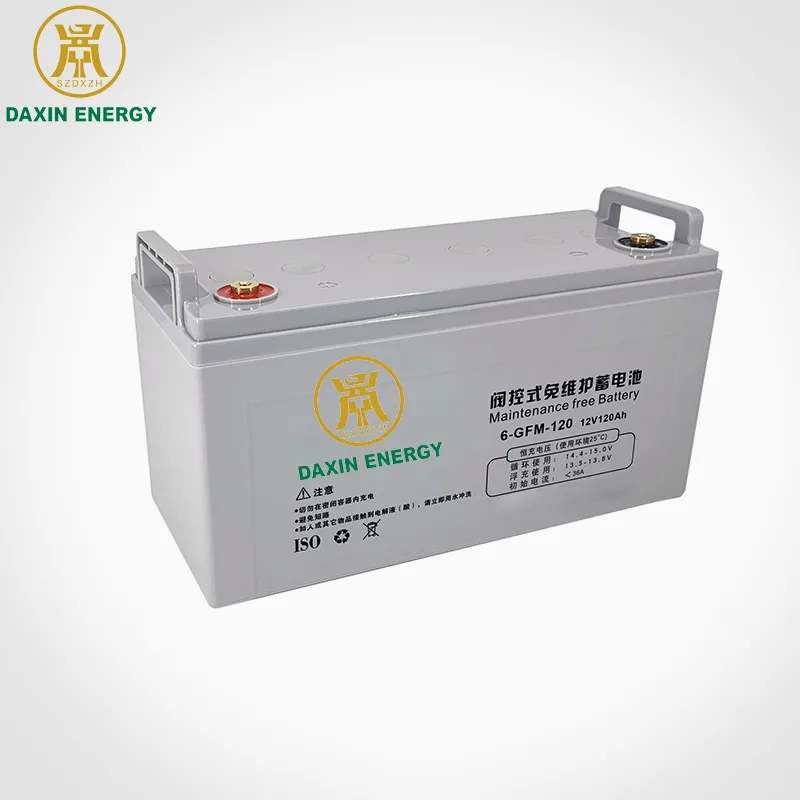

Product Close-Up for DAXIN 6-GFM-120 12V120AH UPS Backup Battery.
Aplicações típicas
- Sistemas de fonte de alimentação ininterrupta (UPS)
- Energia de reserva para telecomunicações e redes
- Sistemas de energia de emergência e de reserva
- Sistemas de segurança e comunicação
- Iluminação de emergência
- Sistemas de transporte
- Industrial backup-power applications
What Is a 12V 120Ah AGM VRLA Battery?
A 12V 120Ah AGM VRLA battery is a sealed lead-acid battery with a nominal voltage of 12 volts and a rated capacity of 120 amp-hours.
AGM stands for Absorbent Glass Mat, while VRLA means Valve-Regulated Lead-Acid. This battery technology is commonly used in UPS, telecom and standby-power systems requiring sealed construction and low-maintenance operation.
120Ah vs 150Ah UPS Battery: Which Should You Choose?
Choose between a 12V 120Ah and 12V 150Ah AGM VRLA battery according to the required UPS backup runtime, DC bus voltage, connected load, installation space and charging capability.
A 150Ah battery provides higher rated capacity for applications requiring longer backup time, while a 120Ah battery can provide a smaller and lighter battery solution where lower capacity is sufficient.
Actual UPS runtime depends on the connected load, battery quantity, series/parallel configuration, discharge rate, inverter efficiency and operating conditions.
Como escolher uma bateria para UPS
Selecione o sistema de baterias de acordo com a tensão do barramento CC do no-break, a carga conectada, o tempo de autonomia necessário, a taxa de descarga permitida, a corrente de carga, o espaço de instalação, a temperatura de operação e as condições de serviço previstas.
For multi-battery systems, the number of 12V batteries and their series/parallel arrangement must match the UPS battery voltage and required backup runtime.
Forneça à DAXIN ENERGY o modelo do no-break, a carga em kW, o tempo de autonomia necessário e as condições do local de instalação para o dimensionamento do sistema de baterias.
Perguntas frequentes
What is the DAXIN 6-GFM-120?
The DAXIN 6-GFM-120 is a 12V 120Ah AGM VRLA battery designed for UPS, telecom, emergency and standby-power applications.
What is the rated capacity of the 6-GFM-120?
The DAXIN 6-GFM-120 has a nominal voltage of 12V and a rated capacity of 120Ah.
What are the dimensions of the DAXIN 6-GFM-120?
The supplied specification lists dimensions of 407 × 174 × 208mm, with a total height of 233mm.
How much does the DAXIN 6-GFM-120 weigh?
The supplied specification lists an approximate weight of 32.5kg with a ±3% tolerance.
How many 12V 120Ah batteries does my UPS need?
The required quantity depends on the UPS DC bus voltage, connected load, battery configuration and required backup runtime.
How long can a 12V 120Ah battery run a UPS?
UPS runtime depends on the connected load, battery quantity, DC bus voltage, discharge rate, inverter efficiency, battery condition and operating temperature. Provide the UPS model, load in kW and required backup time for battery-system sizing.
