Description

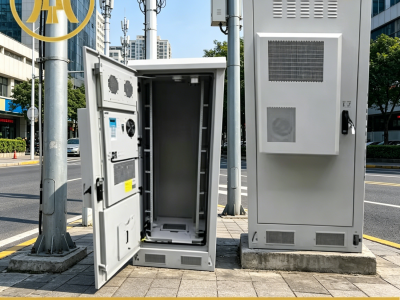

Free-Standing Outdoor Telecom Cabinet
The DAXIN Free-Standing Outdoor Telecom Cabinet is a project-configurable enclosure for protecting telecom, power and control equipment at exposed sites.
Customers can match the compartment layout, cooling, access, locking, monitoring and internal distribution to the actual equipment list and site conditions.
Product Video
Reference Specifications
| Model Number | ODC-210909C2T-200AH |
|---|---|
| Product Name | Industrial and Commercial Outdoor Telecom Cabinets with 500W Cooling Capacity |
| Cabinet Layout | One Compartment |
| Energy Storage System Type | Industrial and Commercial |
| Surface Coating | Outdoor Powder Coating |
| Other Accessory | Sensor |
| Certification | CE |
| Delivery Time | 30 days |
Reference values are based on the supplied configuration. Final ratings and options are confirmed in the approved DAXIN ENERGY technical proposal.
Typical Applications
Telecom base stations; utility and transport networks; outdoor industrial control; distributed energy and battery systems.
What to Confirm Before Ordering
Cabinet dimensions and equipment list; ambient temperature and heat load; ingress-protection target; AC/DC cooling; cable entry, PDU, monitoring and battery arrangement.
Frequently Asked Questions
Can this product be customized?
Yes. DAXIN ENERGY can review electrical, mechanical, battery, cooling and communication options against the project requirements.
What information is needed for selection?
Send the load or equipment list, site conditions, required backup time and installation constraints. Our team will prepare a project-specific configuration.
Request a Project Configuration
Contact DAXIN ENERGY for model selection, drawings, technical confirmation and quotation support.
One Battery Shelf IP55 Outdoor Weatherproof Metal Communication Enclosure
Outdoor IP55 Battery Cabinet | Weatherproof Telecom Enclosure for Solar Power Storage with Cooling System & Sensor Monitoring
Overview

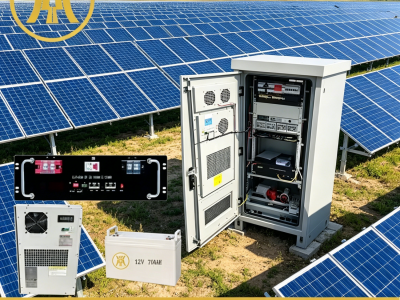

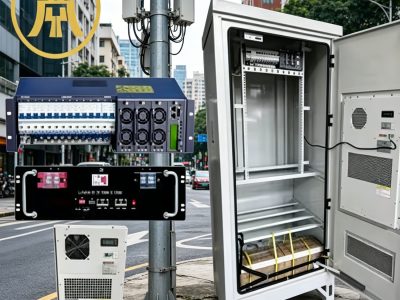

The ODC-210909C2T Outdoor Communication Enclosure is a high-performance, weatherproof metal cabinet designed for outdoor power storage and telecom equipment protection. Built with durability and reliability in mind, it is widely used in solar energy systems, telecommunications infrastructure, transportation systems, and industrial outdoor applications.
Key Features
- IP55 Weatherproof Protection
Fully protected against dust ingress and low-pressure water jets from any direction, ensuring reliable performance in harsh outdoor environments. - Heavy-Duty Construction (3.0mm Steel)
Reinforced cabinet structure provides excellent impact resistance and long-term durability under extreme weather conditions. - Efficient Cooling System
Equipped with heat exchanger + cooling fans and optional 500W air conditioner, ensuring optimal internal temperature control.
MTBF ≥ 50,000 hours - Secure Anti-Theft Design
Features a three-point locking system to protect valuable batteries and equipment from unauthorized access. - Smart Monitoring System
Integrated sensor system enables real-time monitoring of cabinet conditions, improving operational reliability. - Built-in LED Lighting
Includes DC48V LED lamp for easy maintenance and operation in low-light or nighttime conditions.battery for solar systemTechnical Parameters:
Technical Parameters Description Product Name solar battery storage system, Weather Resistant Power Box, External Electrical Box Cooling Capacity 500W (air conditioner) Protection Class IP55 Cabinet Lock Anti-theft Three Point Lock Protection Level IP55 Surface Outdoor Powder Coating Battery Shelf No One Battery Shelf Other Accessory Sensor Cabinet Layout One Compartment Cabinet Cooling Heat Exchanger And Fans, MTBF≥50000h. Embedded Power Supply Brand: Emerson Specifications
Item Details Model ODC-210909C2T Origin Shenzhen, China Certification CE Cabinet Type Outdoor Battery Cabinet Internal Dimensions (W×D×H) 900 × 900 × 2150 mm Compartments 2 Battery Shelf 1 Applicable Battery Size 550 × 125 × 320 mm Protection Level IP55 Cooling System Heat Exchanger + Fans / Optional AC (500W) Lock System Anti-theft Three-point Lock Lighting DC48V LED Lamp Material Thickness 3.0 mm Sensor Included Applications

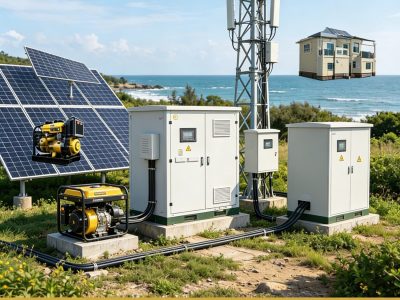

- Telecommunications
Ideal for base stations, signal towers, and communication equipment protection. - Renewable Energy Systems
Perfect for solar and wind energy storage, supporting batteries and inverters. - Transportation Infrastructure
Reliable power supply solution for traffic lights, street lighting, and roadside systems. - Outdoor Events & Temporary Power
Provides stable power for stages, lighting, and sound systems in outdoor environments.
Why Choose This Enclosure?
- Engineered for extreme outdoor conditions
- Enhances equipment lifespan and safety
- Reduces maintenance costs and downtime
- Flexible for multiple industries and applications
Supply & Trade Information
- MOQ: 1 Unit
- Delivery Time: 15–25 Days
- Payment Terms: T/T (Bank Transfer)
- Packaging: Wooden Case / Carton Box
- Supply Capacity: 10,000 Units per Month
- Telecommunications
