Description
What Is the DAXIN 48V200AH Wall-Mounted LiFePO4 Battery?
The DAXIN 48V200AH is a wall-mounted lithium iron phosphate battery designed for space-efficient solar and backup energy storage.
Key Benefits
- Wall mounting preserves floor space in residential and equipment-room installations.
- Lithium iron phosphate architecture supports long-term stationary or motive-energy applications where specified.
- Integrated protection and battery management functions depend on the selected configuration.
- Voltage, capacity, communication and enclosure options can be reviewed against project requirements.
- Installation, charging and operating limits must follow the confirmed project data sheet.
Reference Configuration
| Product Name | LiFePO4 Battery Pack |
|---|---|
| Model | 48V200AH |
| Nominal Voltage | 48V |
| Rated Capacity | 200AH |
| BMS Charge Current | 100A 0.5C(max) |
| BMS Discharge Current | 100A 0.5C(max) |
| Charge Cut-off Voltage | 54.75V |
| Discharge Cut-off Voltage | 37.5V |

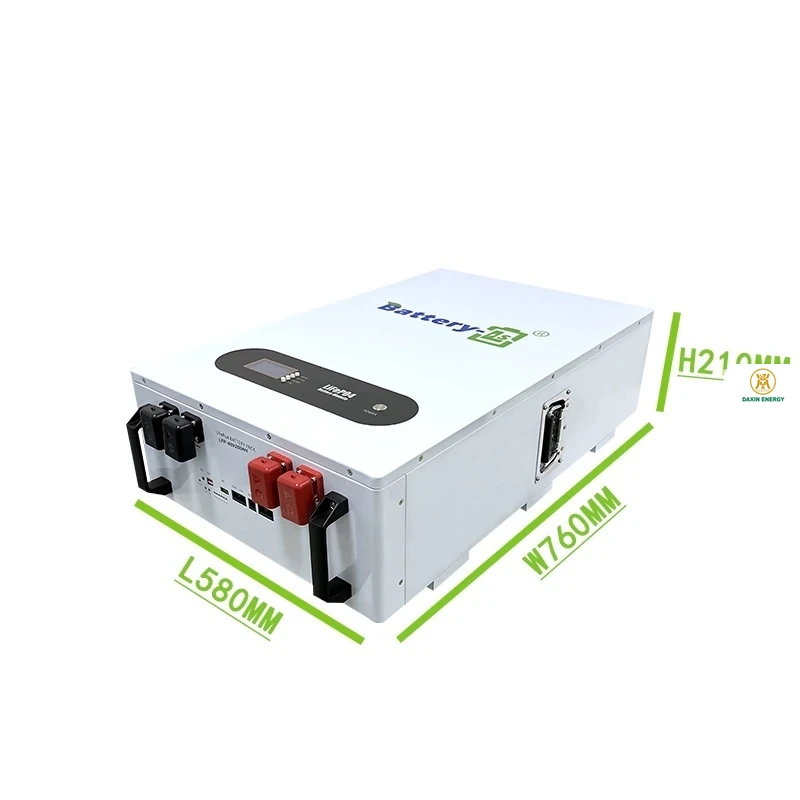

| Product Dimension | L580*W760*H210(mm) |
| Net Weight | 96kg |
| Case Material | Metal |

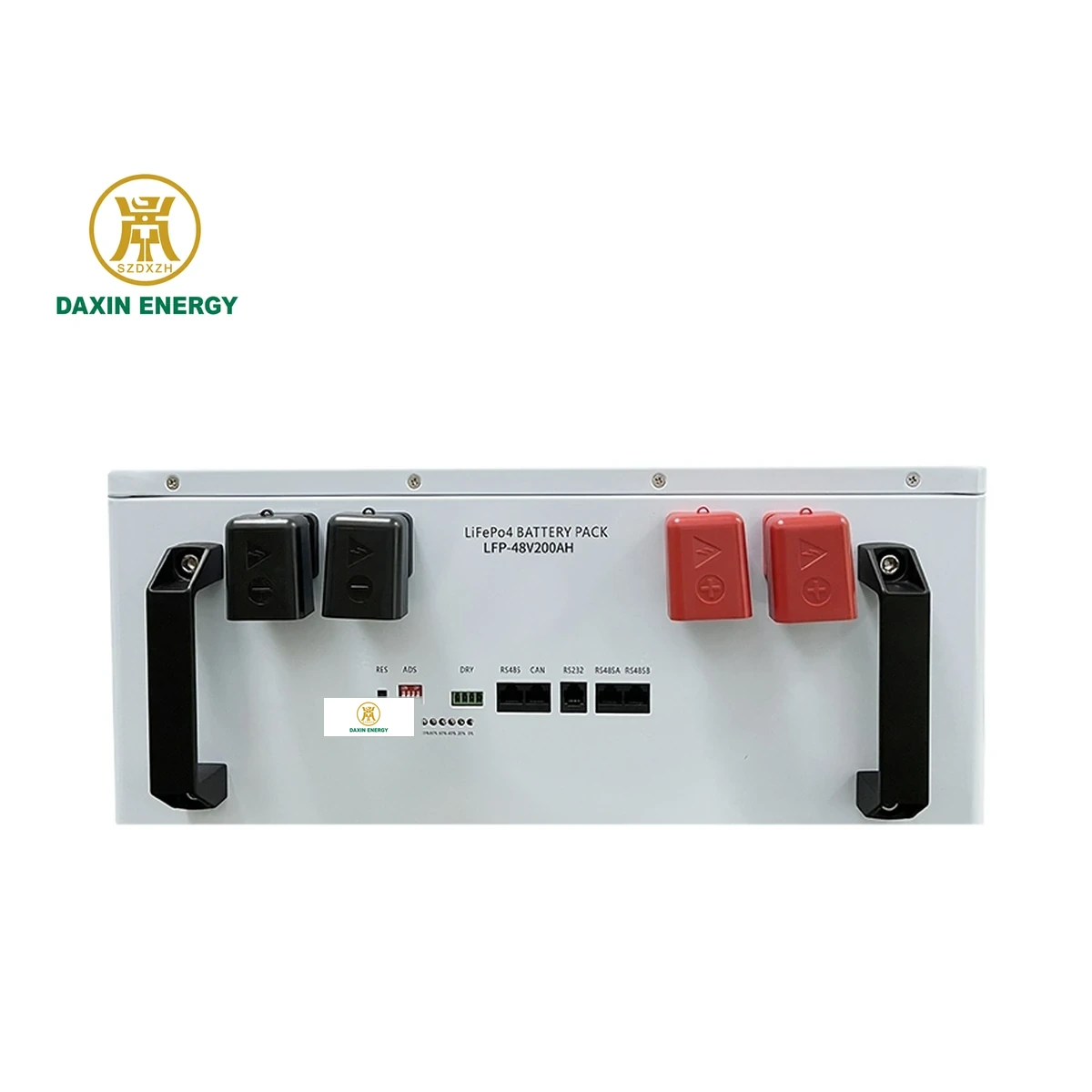

| Communication Protocol | CAN/RS485/RS232+LCD |
| Warranty | 5years |
| Application | Home Energy Storage |
Values above describe the referenced configuration. Confirm the final DAXIN project data sheet before ordering.
Product Details
Selection and Integration
Confirm nominal voltage, usable capacity, charge and discharge current, battery-management settings, communication protocol, inverter compatibility, installation method, environmental limits and required backup time before final selection.
Frequently Asked Questions
Can capacity and communication options be configured?
Configuration depends on the model and project. Share the system voltage, required energy, inverter interface and communication requirements for review.
Can this product be integrated into an existing energy system?
Compatibility must be checked against the inverter, charger, DC protection, communication protocol and operating voltage window.
What information is needed for selection?
Provide the load profile, system voltage, required runtime or usable energy, installation environment, communication interface and applicable transport or certification requirements.
Request a Project Configuration
Contact DAXIN ENERGY with the required voltage, capacity, application, installation method and communication requirements for a project-specific proposal.
