Description

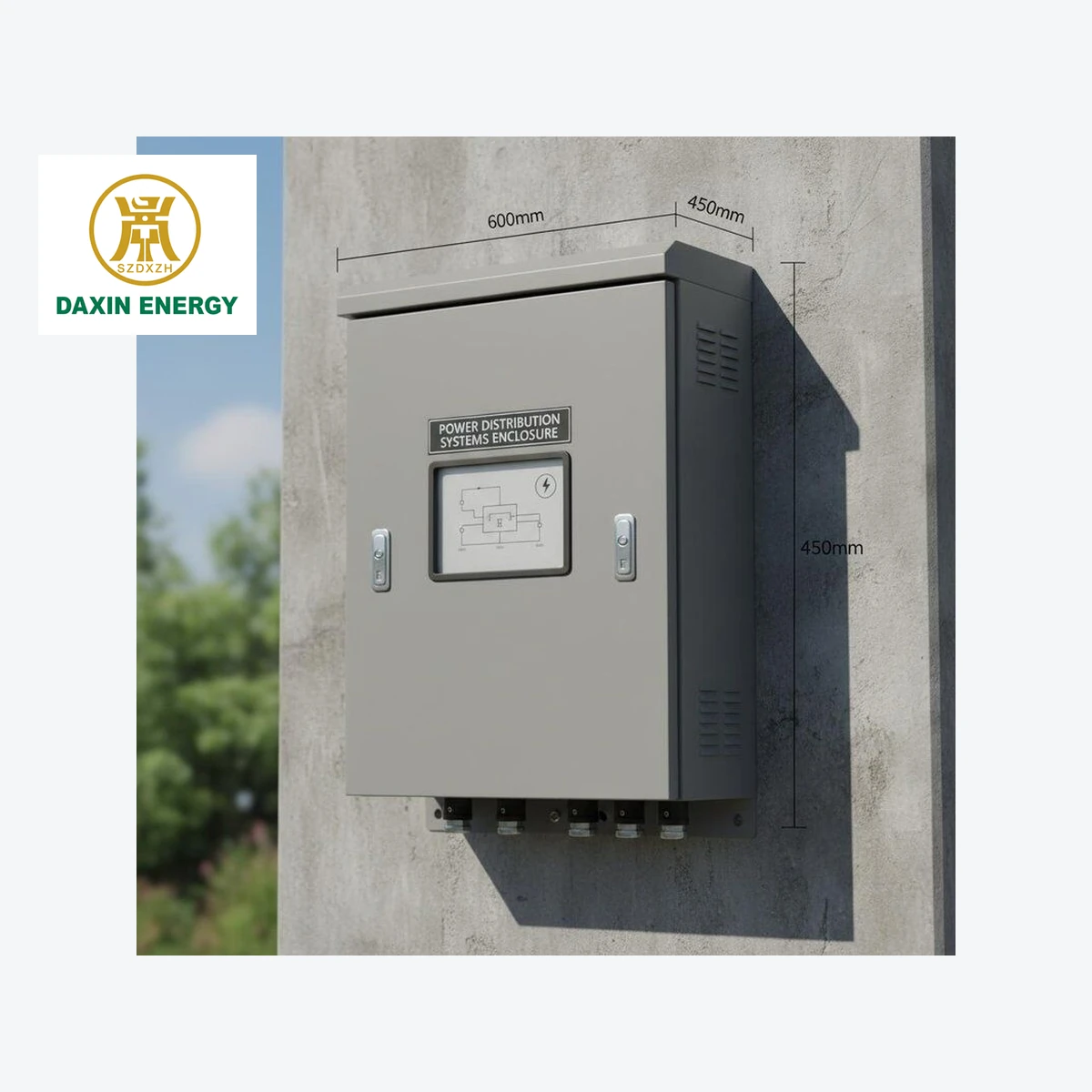

What Is the DAXIN 600×800×450mm Wall-Mount Power Management Cabinet?
A compact wall-mount outdoor power management cabinet with powder-coated construction, grounding, LED illumination and optional PDU and monitoring accessories.
Its wall-mounted format is intended for space-conscious outdoor electrical distribution and telecom support locations.
Key Features
- Outdoor enclosure architecture for protected electrical, power-control and telecommunications equipment.
- Powder-coated cabinet construction with project-selectable size, color and internal arrangement.
- Cooling configuration can include air-conditioning and auxiliary fans according to the site heat load.
- Grounding, LED lighting, PDU and environment-monitoring options support installation and maintenance.
- Front and rear access options can be coordinated with equipment layout and service-clearance requirements.
Reference Configuration
| Model Number | ODC-210909C2T |
|---|---|
| Cooling System | Air Conditioner With Fans |
| Internal Dimension (W×D×H) | 482.3×380×44mm |
| Surface Treatment | Powder Coating |
| Earthing | Grounding Copper Bar |
| Accessories Options | PDU, Environment Monitoring System |
| Illumination | LED Lamp |
| Layout | One Compartment |
| Operating Temperature Range | -40°C To +60°C |
| Customization Options | Available For Size, Color, And Internal Configuration |
| Access | Front And Back Access |
The table describes the supplied reference page. Final dimensions, protection level, cooling capacity, internal rack layout, electrical distribution and accessories are subject to the approved DAXIN technical proposal.
Typical Applications
- Outdoor telecom and network equipment sites
- Utility monitoring and electrical distribution points
- Industrial automation and remote control installations
- Security, transportation and smart-infrastructure projects
- Renewable-energy and distributed power equipment
Selection and Customization
Provide the required cabinet dimensions, equipment list, heat load, site temperature, mounting method, cable-entry direction, power distribution, monitoring interfaces and protection requirements. DAXIN ENERGY will review the enclosure, cooling and accessory configuration for the project.
Frequently Asked Questions
Can the cabinet size and internal layout be customized?
Yes. Available customization may include dimensions, mounting rails, compartments, color, cable entry, shelves, PDU, grounding and monitoring equipment.
How should the cooling capacity be selected?
Cooling must be calculated from the installed equipment heat load, ambient temperature, solar exposure, enclosure insulation and required internal temperature.
Can AC or DC air-conditioning be supplied?
AC and DC cooling options can be reviewed according to the site power system and the selected cabinet configuration.
Is the reference model a fixed configuration?
No. ODC-210909C2T is a reference family. The final enclosure configuration is confirmed in the approved project drawing and technical data sheet.
Request a Project Configuration
Contact DAXIN ENERGY with the application, site conditions, equipment list, cabinet dimensions, cooling load, power distribution and monitoring requirements.
